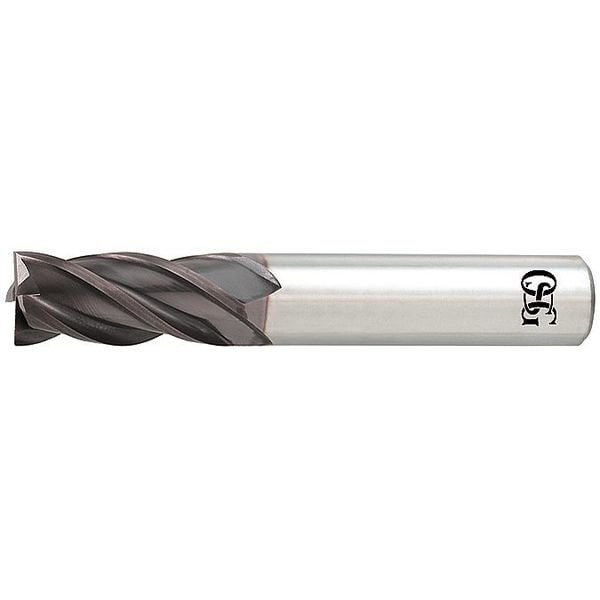

Carbide End Mill, 1/16 D, 3/16 Cut
| Dimension Type | Fractional Inch |
|---|---|
| Milling Diameter | 1/16 in |
| End Mill Material | Carbide |
| Number of Flutes | 4 |
| Length of Cut | 3/16 in |
| Single End/Double End | Single End |
| End Mill Cutting Type | Center Cutting |
| Grade | High Performance |
| Shank Dia. | 1/8 in |
| Helix Angle | 35 deg |
| Shank Type | Straight |
| Non Ferrous (N) Compatibility | No |
| Cast Iron (K) Compatibility | Yes |
| Cutting Direction | Right Hand |
| End Mill Style | Ball Nose |
| Finish | TiAlN |
| Steel (P) Compatibility | Yes |
| List Number | HP441BN |
| Stainless (M) Compatibility | Yes |
| Milling Dia. | 1/16 in |
| End Mill Application | Finishing |
| Super Alloy (S) Compatibility | Yes |
| Hardened (H) Compatibility | Yes |
| Overall Length | 1-1/2 in |
| Item | Ball End Mill |
| Neck Length | Not Applicable |
| Series | HY-PRO(R) CARB |
| Material - Machining | Carbide |
| Drilling Tool Configuration | Individual |
| Measurement System | Fractional Inch |
| Chip-Breaker | No |
| Finish - Machining | TiAlN |
| Material Grade - Machining | High Performance |
| Primary Material Application ISO Code | P, K, M, S |
| Coolant Fed | Non-Coolant Through |
| Shank Type - Machining | Straight |
| Primary Material Application | Cast Iron, Nickel, Stainless Steel, Steel, Tool and Die Steel |
| Package Quantity | 1 |
