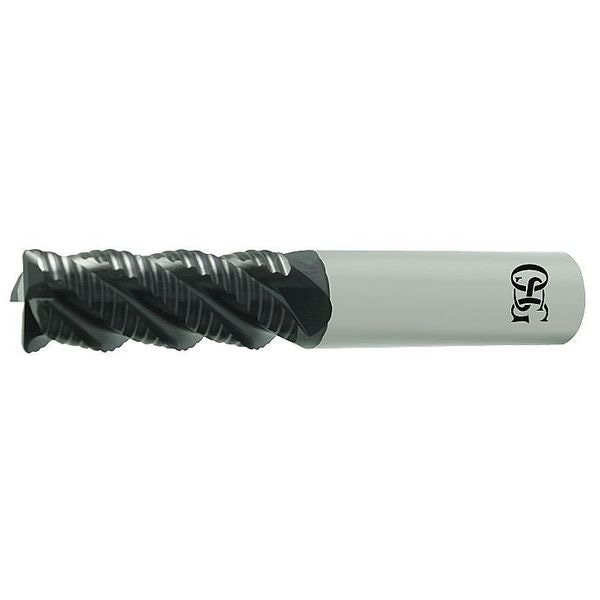

Carbide End Mill, 2015, 1/2 D, 1 1/4 Cut L
| Number of Flutes | 4 |
|---|---|
| End Mill Style | Corner Radius |
| Finish | TiAlN |
| Length of Cut | 1-1/4 in |
| End Mill Cutting Type | Center Cutting |
| Milling Diameter | 1/2 in |
| End Mill Material | Carbide |
| End Mill Application | Roughing |
| Dimension Type | Fractional Inch |
| Cutting Direction | Right Hand |
| Shank Dia. | 1/2 in |
| Milling Dia. | 1/2 in |
| Overall Length | 3 in |
| Cast Iron (K) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Steel (P) Compatibility | Yes |
| Non Ferrous (N) Compatibility | Yes |
| Grade | High Performance |
| Stainless (M) Compatibility | Yes |
| List Number | 2015 |
| Item | Corner Radius End Mill |
| Corner Radius | 0.06 in |
| Hardened (H) Compatibility | Yes |
| Single End/Double End | Single End |
| Helix Angle | 40 deg |
| Series | EXOCARB AERO Rougher |
| Cutting Direction - Machining | Right Hand |
| Finish - Machining | TiAlN |
| Drilling Tool Configuration | Individual |
| Shank Type - Machining | Straight |
| Measurement System | Fractional Inch |
| Material - Machining | Carbide |
| Material Grade - Machining | High Performance |
| Primary Material Application ISO Code | P, M, S, K |
| Primary Material Application | Cast Iron, Nickel, Stainless Steel, Steel, Tool and Die Steel |
| Package Quantity | 1 |
