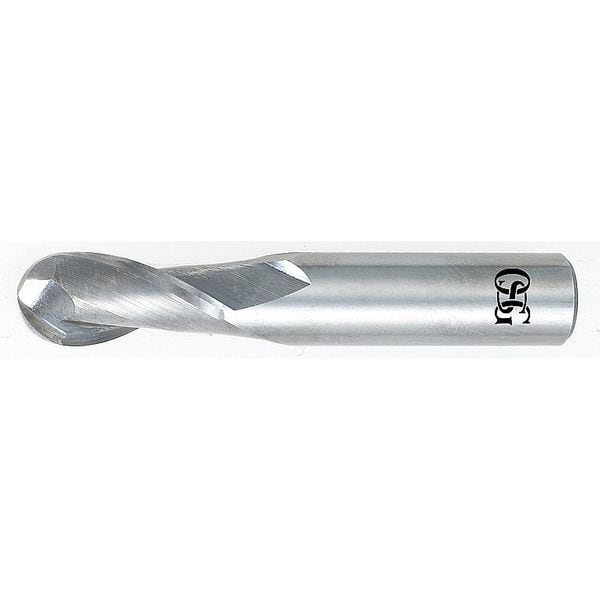

Carbide End Mill, 402BN, 9.0mm D, 22mm Cut
| Dimension Type | Metric |
|---|---|
| Milling Diameter | 9 mm |
| End Mill Material | Carbide |
| Number of Flutes | 2 |
| Length of Cut | 22 mm |
| Single End/Double End | Single End |
| End Mill Cutting Type | Center Cutting |
| Grade | High Performance |
| Shank Dia. | 10 mm |
| Helix Angle | 30 deg |
| End Mill Application | Finishing |
| Stainless (M) Compatibility | Yes |
| Hardened (H) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Milling Dia. | 9 mm |
| Overall Length | 70 mm |
| List Number | 402BN |
| Cast Iron (K) Compatibility | Yes |
| Item | Ball End Mill |
| End Mill Style | Ball Nose |
| Shank Type | Straight |
| Non Ferrous (N) Compatibility | Yes |
| Cutting Direction | Right Hand |
| Finish | Bright |
| Neck Length | Not Applicable |
| Coolant Fed | Non-Coolant Through |
| Primary Material Application ISO Code | P, K, H, N |
| Shank Type - Machining | Straight |
| Drilling Tool Configuration | Individual |
| Material Grade - Machining | High Performance |
| Material - Machining | Carbide |
| Chip-Breaker | No |
| Measurement System | Metric |
| Finish - Machining | Bright |
| Primary Material Application | Aluminum, Cast Iron, Hardened Steel, Steel, Tool and Die Steel |
| Package Quantity | 1 |
