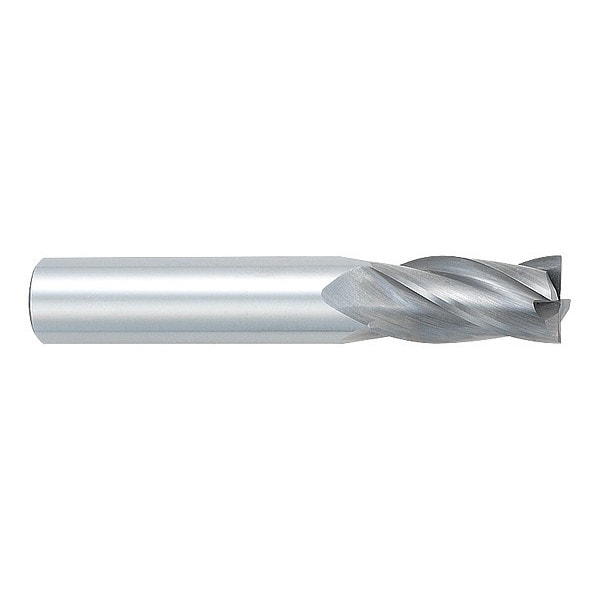

Carbide End Mill, 404, 5/64 D, 1/4 Cut L
| Number of Flutes | 4 |
|---|---|
| End Mill Style | Square |
| Finish | Bright |
| Length of Cut | 1/4 in |
| End Mill Cutting Type | Center Cutting |
| Milling Diameter | 5/64 in |
| End Mill Material | Carbide |
| End Mill Application | Finishing |
| Dimension Type | Fractional Inch |
| Shank Dia. | 1/8 in |
| Cast Iron (K) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Item | Square End Mill |
| List Number | 404 |
| Overall Length | 1-1/2 in |
| Milling Dia. | 5/64 in |
| Single End/Double End | Single End |
| Non Ferrous (N) Compatibility | Yes |
| Hardened (H) Compatibility | Yes |
| Helix Angle | 30 deg |
| Cutting Direction | Right Hand |
| Steel (P) Compatibility | Yes |
| Grade | High Performance |
| Material - Machining | Carbide |
| Drilling Tool Configuration | Individual |
| Measurement System | Fractional Inch |
| Shank Type - Machining | Straight |
| Cutting Direction - Machining | Right Hand |
| Finish - Machining | Bright |
| Material Grade - Machining | High Performance |
| Material Applications | Cast Iron, Aluminum, Steel, Carbon Steel, Hardened Steel |
| Primary Material Application | Aluminum, Cast Iron, Hardened Steel, Steel, Tool and Die Steel |
| Primary Material Application ISO Code | P, K, H, N |
| Package Quantity | 1 |
