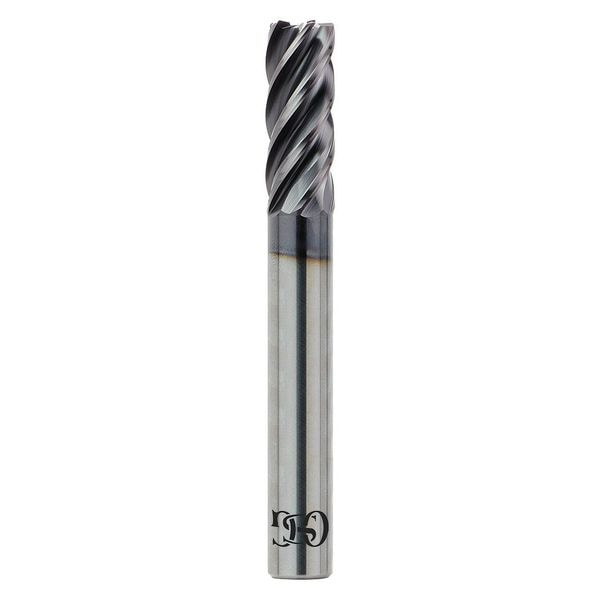

Carbide End Mill, 5/8in dia, 1-1/4in Cut L
| Measurement System | Fractional Inch |
|---|---|
| Milling Diameter | 5/8 in |
| Overall Length | 3 1/2 in |
| Number of Flutes | 5 |
| End Mill Style | Corner Radius |
| Finish | TiAlN |
| Length of Cut | 1-1/4 in |
| End Mill Cutting Type | Non-Center Cutting |
| Hardened (H) Compatibility | Yes |
| Single End/Double End | Single End |
| Stainless (M) Compatibility | Yes |
| Grade | General Purpose |
| Helix Angle | 38 deg |
| Milling Dia. | 5/8 in |
| Corner Radius | 0.03 in |
| Cast Iron (K) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
| Cutting Direction | Right Hand |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| End Mill Material | Carbide |
| List Number | VG534 |
| End Mill Application | Finishing, Roughing |
| Dimension Type | Fractional Inch |
| Shank Type | End Mill |
| Shank Dia. | 5/8 in |
| Item | Corner Radius End Mill |
| Series | HY-PRO(R) CARB VGX |
| Material - Machining | Carbide |
| Finish - Machining | TiAlN |
| Cutting Direction - Machining | Right Hand |
| Drilling Tool Configuration | Individual |
| Shank Type - Machining | Straight |
| Material Grade - Machining | General Purpose |
| Primary Material Application | Cast Iron, Nickel, Stainless Steel, Steel, Tool and Die Steel |
| Primary Material Application ISO Code | P, M, K, S |
| Package Quantity | 1 |
