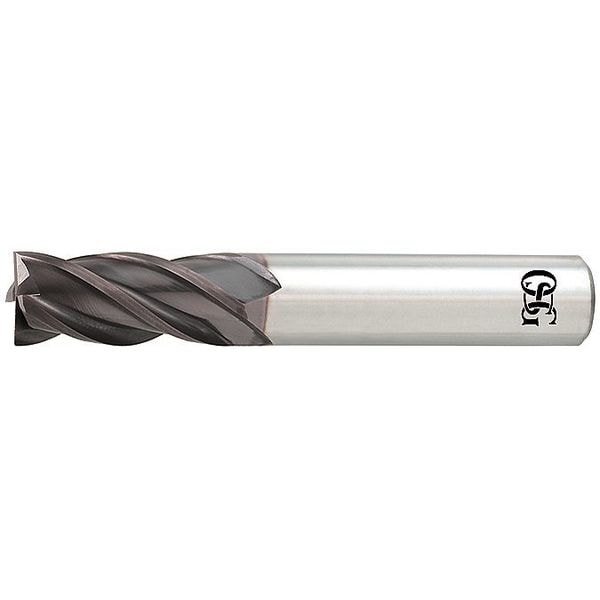

Carbide End Mill, HP441, 5.0mm D, 16mm Cut
| Measurement System | Metric |
|---|---|
| Milling Diameter | 5 mm |
| Overall Length | 51.00 mm |
| Number of Flutes | 4 |
| End Mill Style | Square |
| Finish | TiAlN |
| Length of Cut | 16 mm |
| End Mill Cutting Type | Center Cutting |
| Cast Iron (K) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| End Mill Application | Finishing, Roughing |
| Dimension Type | Metric |
| Hardened (H) Compatibility | Yes |
| Cutting Direction | Right Hand |
| End Mill Material | Carbide |
| Item | Square End Mill |
| Single End/Double End | Single End |
| Milling Dia. | 5 mm |
| Non Ferrous (N) Compatibility | No |
| Grade | High Performance |
| Helix Angle | 35 deg |
| List Number | HP441 |
| Shank Dia. | 5 mm |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Shank Type - Machining | Straight |
| Series | HY-PRO(R) CARB |
| Cutting Direction - Machining | Right Hand |
| Drilling Tool Configuration | Individual |
| Material - Machining | Carbide |
| Material Grade - Machining | High Performance |
| Material Applications | Cast Iron, Nickel, Inconel, Steel, Carbon Steel, Stainless Steel |
| Finish - Machining | TiAlN |
| Primary Material Application | Cast Iron, Nickel, Stainless Steel, Steel, Tool and Die Steel |
| Primary Material Application ISO Code | P, M, K, S |
| Package Quantity | 1 |
