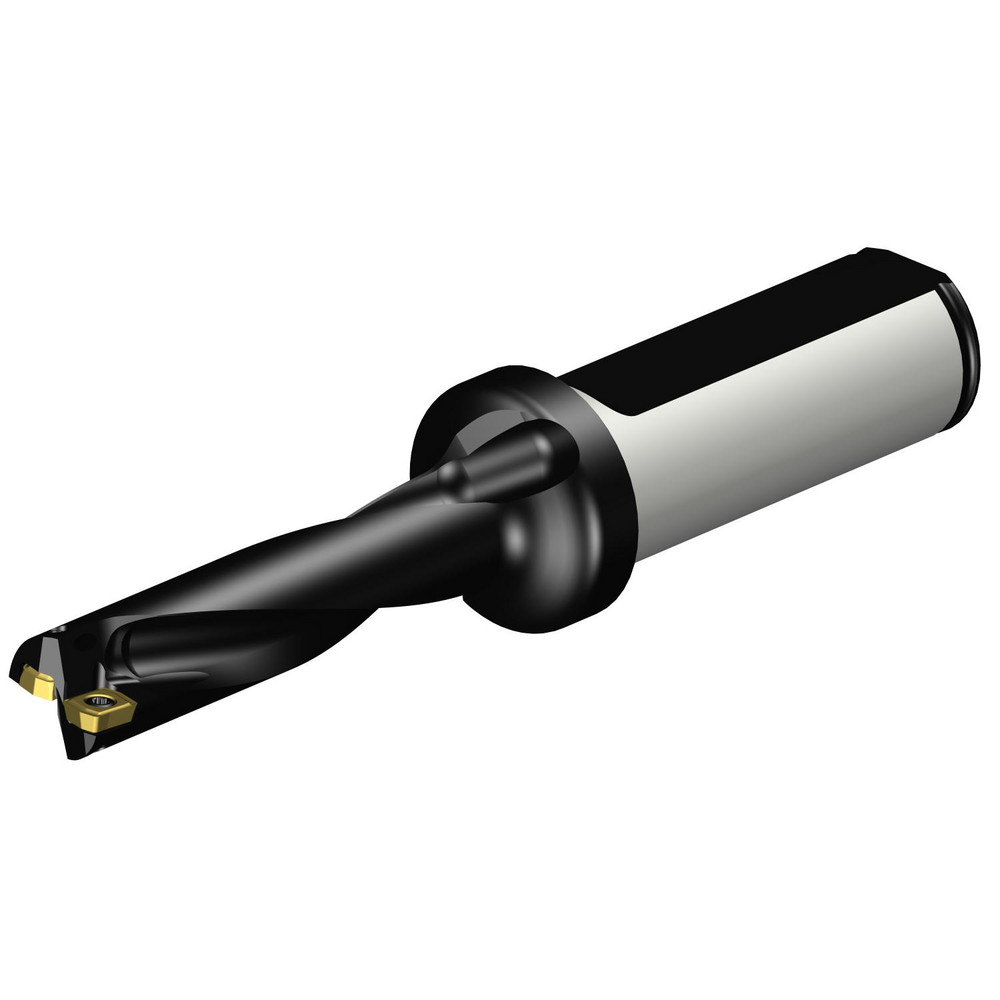

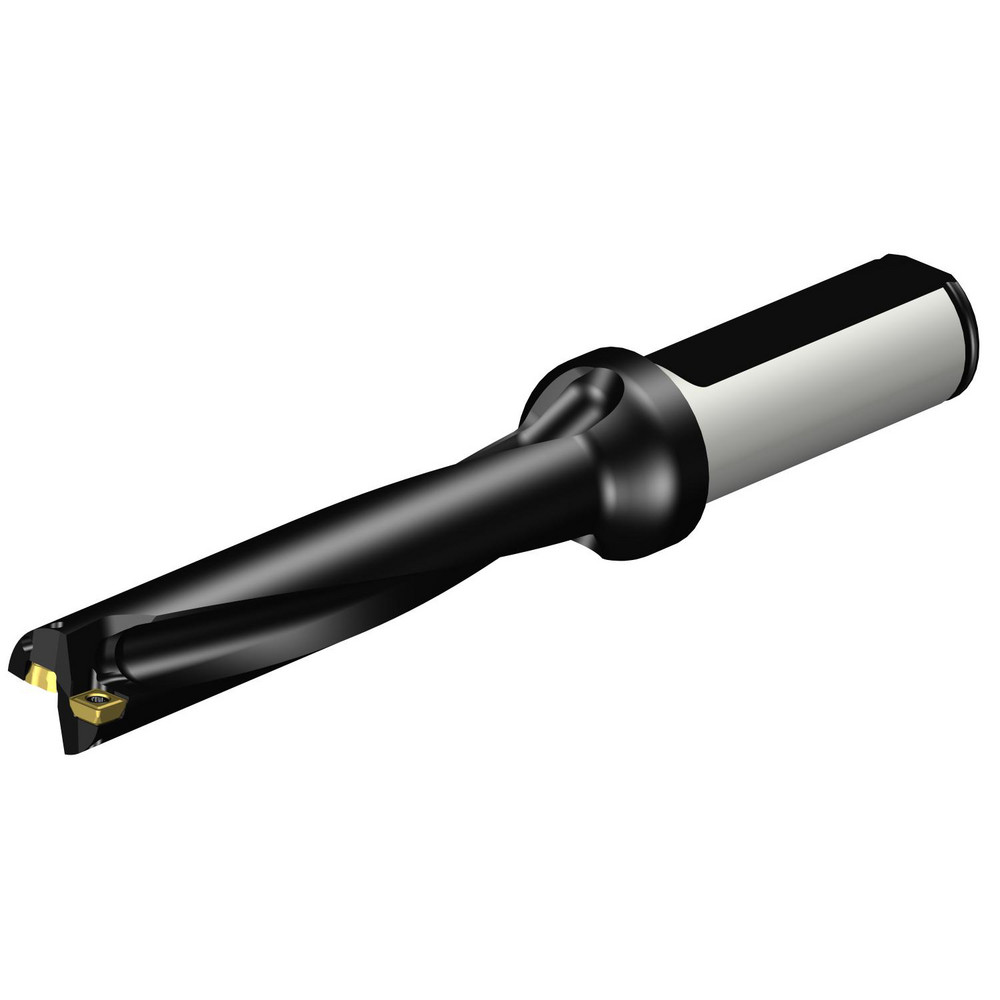

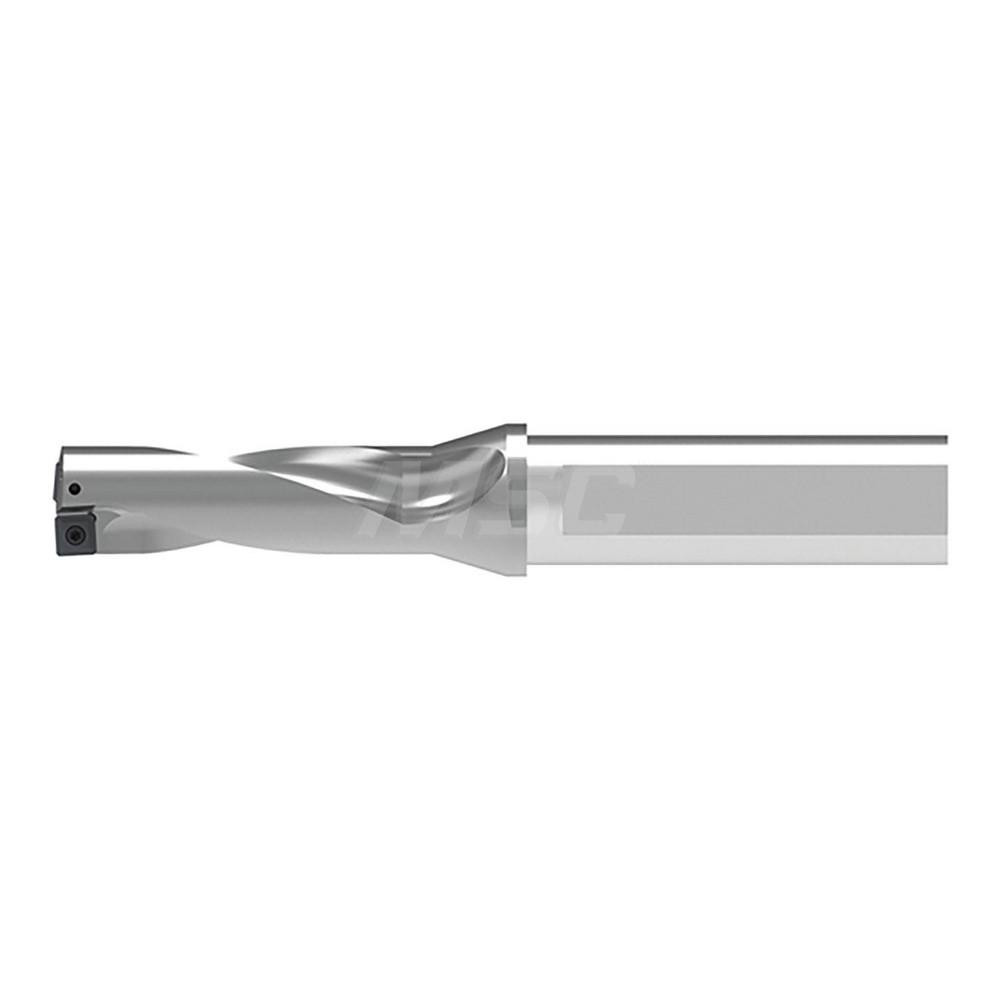

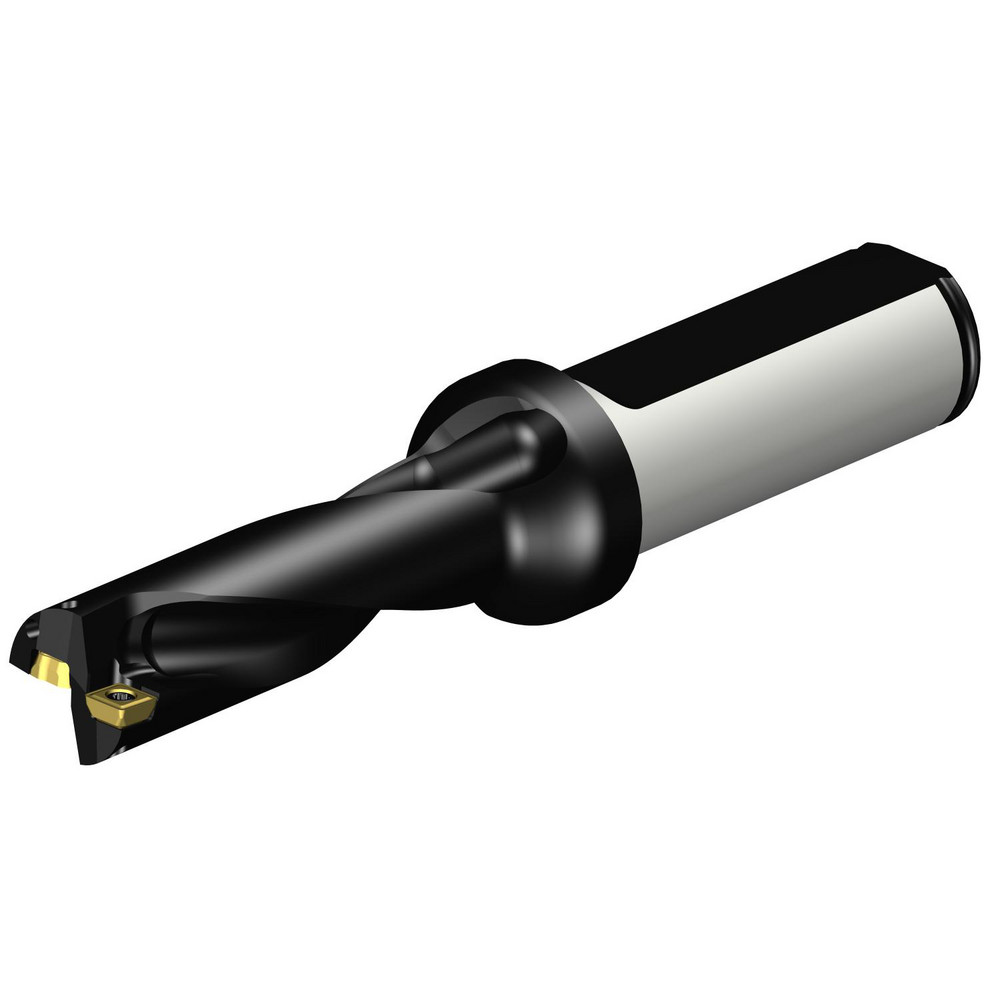

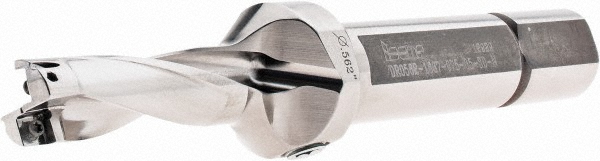

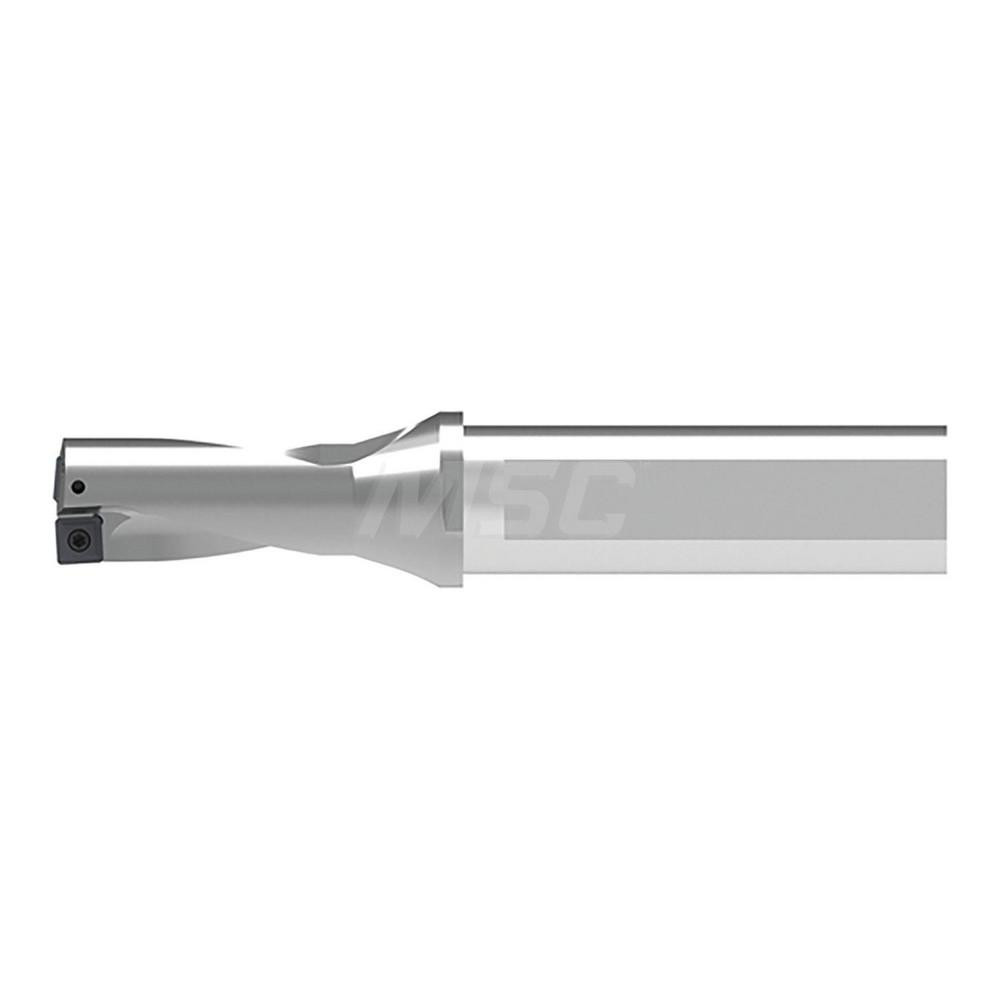

Weldon Flat & Flange Shank, Uses XCMT 031904 Inserts, Series 52503
| Compatible Drill Style | P3D |
|---|---|
| Maximum Drill Diameter (Inch) | 9/16 |
| Maximum Drill Diameter (Decimal Inch) | 0.5625 |
| Maximum Drill Depth (Decimal Inch) | 1.6880 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 031904 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 4.5630 |
| Series | 52503 |
| Flute Length (Decimal Inch) | 1.6880 |
| Body Length (Decimal Inch) | 2.5940 |
| Shank Length (Decimal Inch) | 1.9690 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 6.10x4.50 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XCMT031904 |
| Insert Lock Screw | 7808096 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 26305383 |
