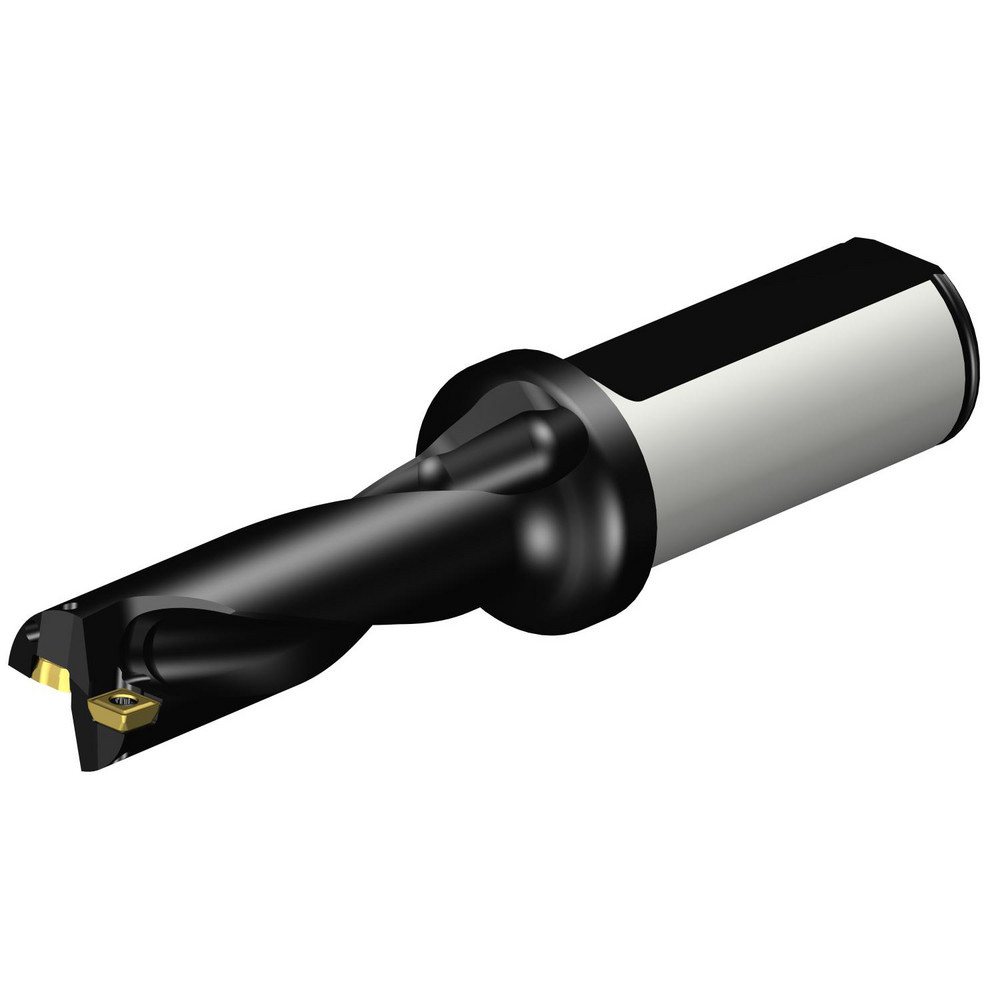

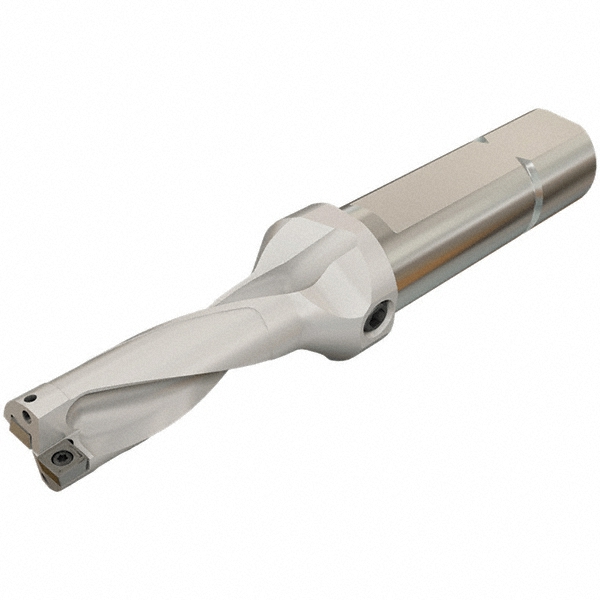

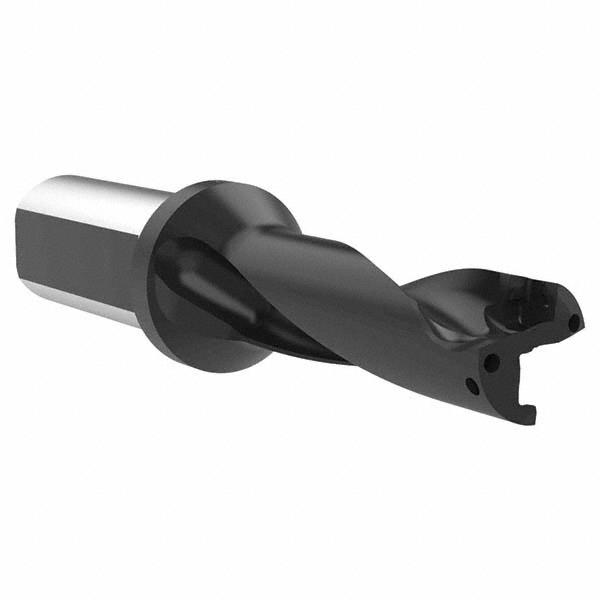

Weldon Flat & Flange Shank, Uses XCMT 052404 Inserts, Series 52503
| Compatible Drill Style | P3D |
|---|---|
| Maximum Drill Diameter (Inch) | 23/32 |
| Maximum Drill Diameter (Decimal Inch) | 0.7188 |
| Maximum Drill Depth (Inch) | 2-5/32 |
| Maximum Drill Depth (Decimal Inch) | 2.1560 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Tool Material | Steel |

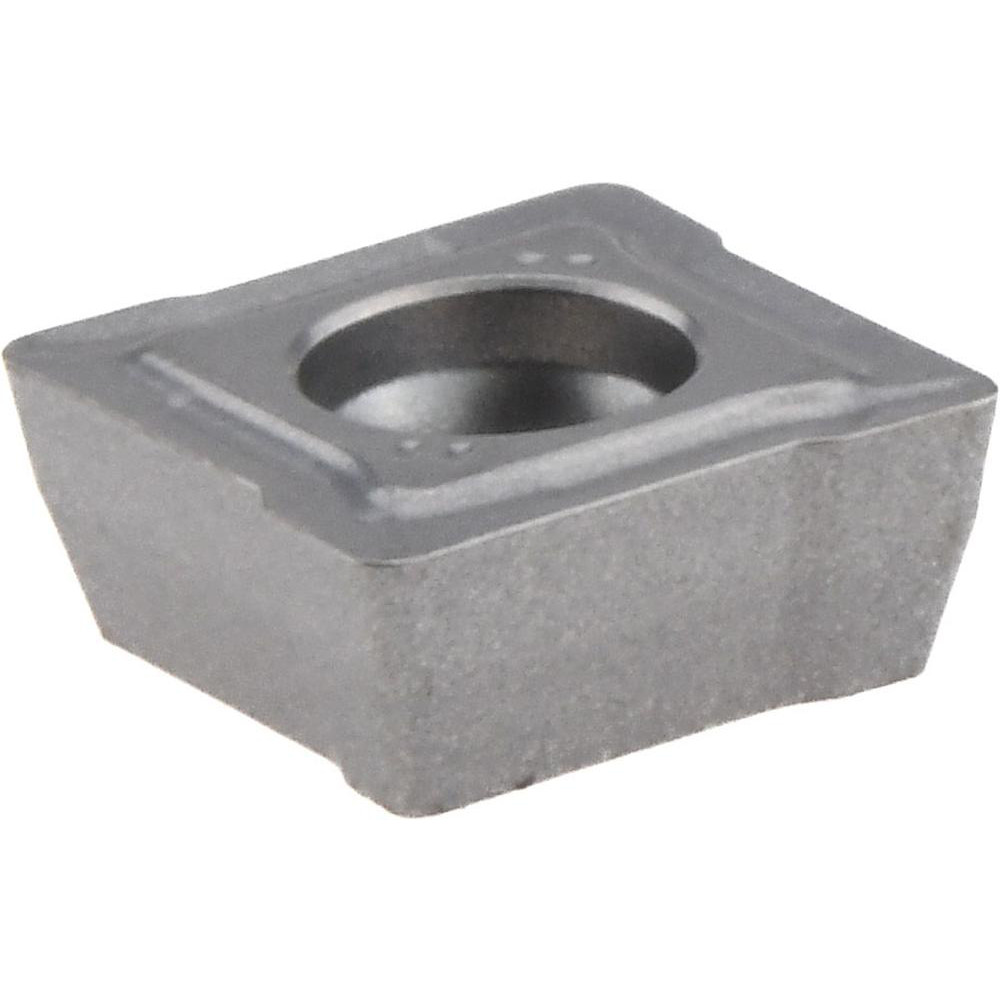

| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 052404 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 5.2670 |
| Series | 52503 |
| Flute Length (Decimal Inch) | 2.1560 |
| Body Length (Decimal Inch) | 3.0620 |
| Shank Length (Decimal Inch) | 2.2050 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 5.83x5.83 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XCMT052404 |

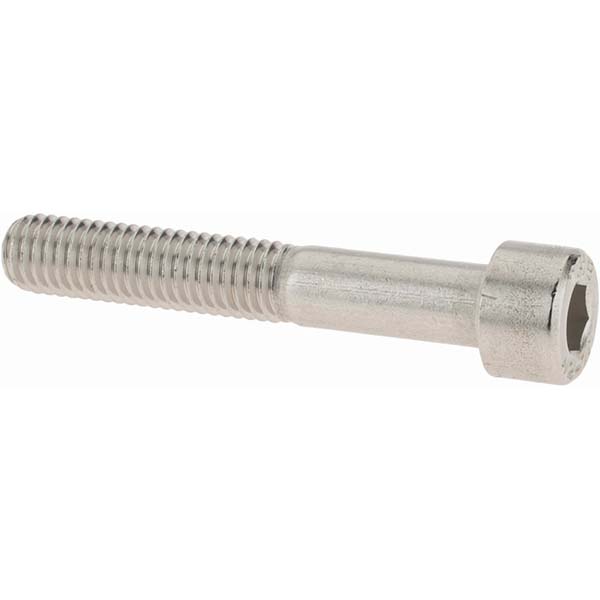

| Insert Lock Screw | 7808139 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 26304964 |
