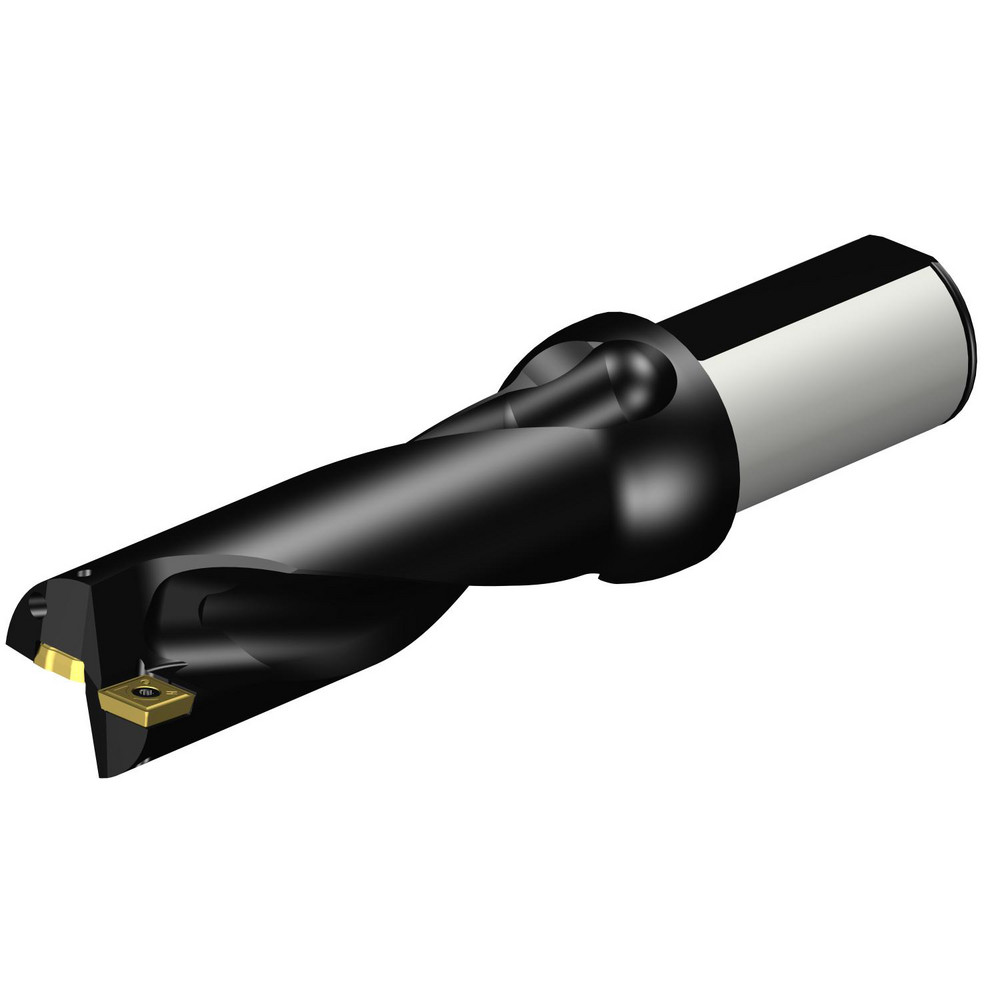

Weldon Flat & Flange Shank, Uses XCMT 094008 Inserts, Series 52503
| Compatible Drill Style | P3D |
|---|---|
| Maximum Drill Diameter (Inch) | 1-9/32 |
| Maximum Drill Diameter (Decimal Inch) | 1.2813 |
| Maximum Drill Depth (Inch) | 3-27/32 |
| Maximum Drill Depth (Decimal Inch) | 3.8440 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 094008 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 7.5060 |
| Series | 52503 |
| Flute Length (Decimal Inch) | 3.8440 |
| Body Length (Decimal Inch) | 4.7500 |
| Shank Length (Decimal Inch) | 2.7560 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 9.62x9.62 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XCMT094008 |
| Insert Lock Screw | 7808135 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 41380700 |
