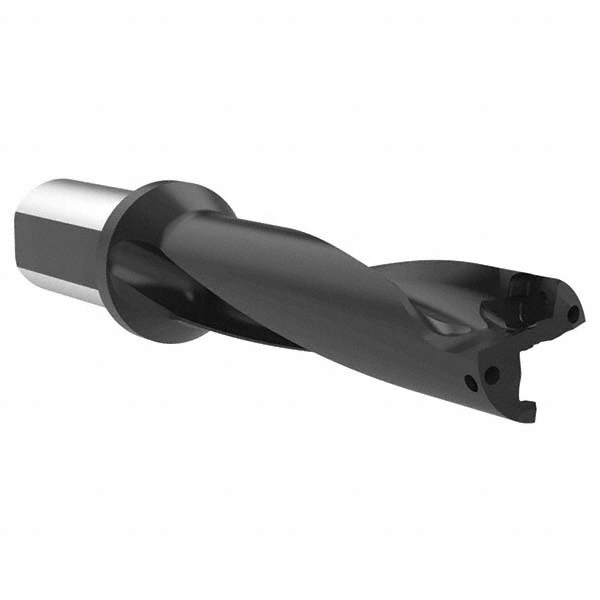

Weldon Flat & Flange Shank, Uses XCMT 083508 Inserts, Series 52504
| Compatible Drill Style | P4D |
|---|---|
| Maximum Drill Diameter (Inch) | 1-1/8 |
| Maximum Drill Diameter (Decimal Inch) | 1.1250 |
| Maximum Drill Depth (Inch) | 4-1/2 |
| Maximum Drill Depth (Decimal Inch) | 4.5000 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 4.0000 to 5.0000 |
| Tool Material | Steel |

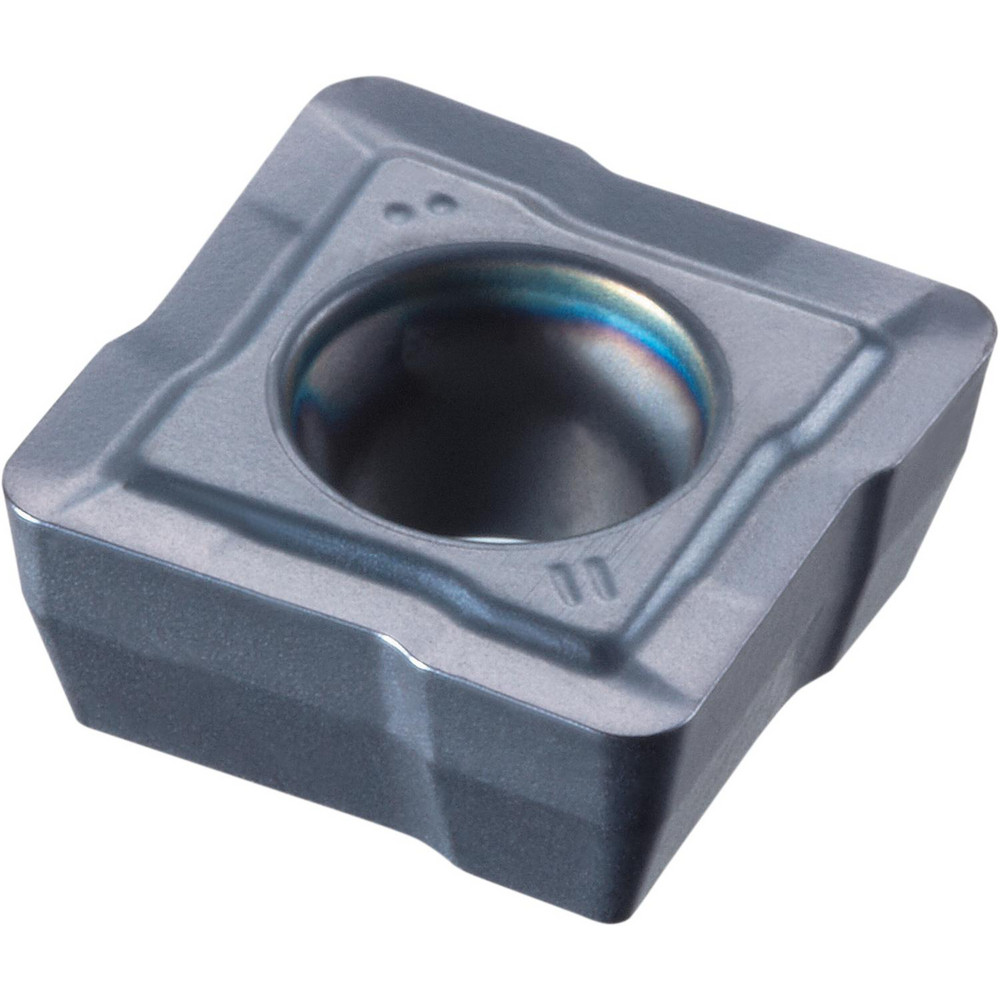

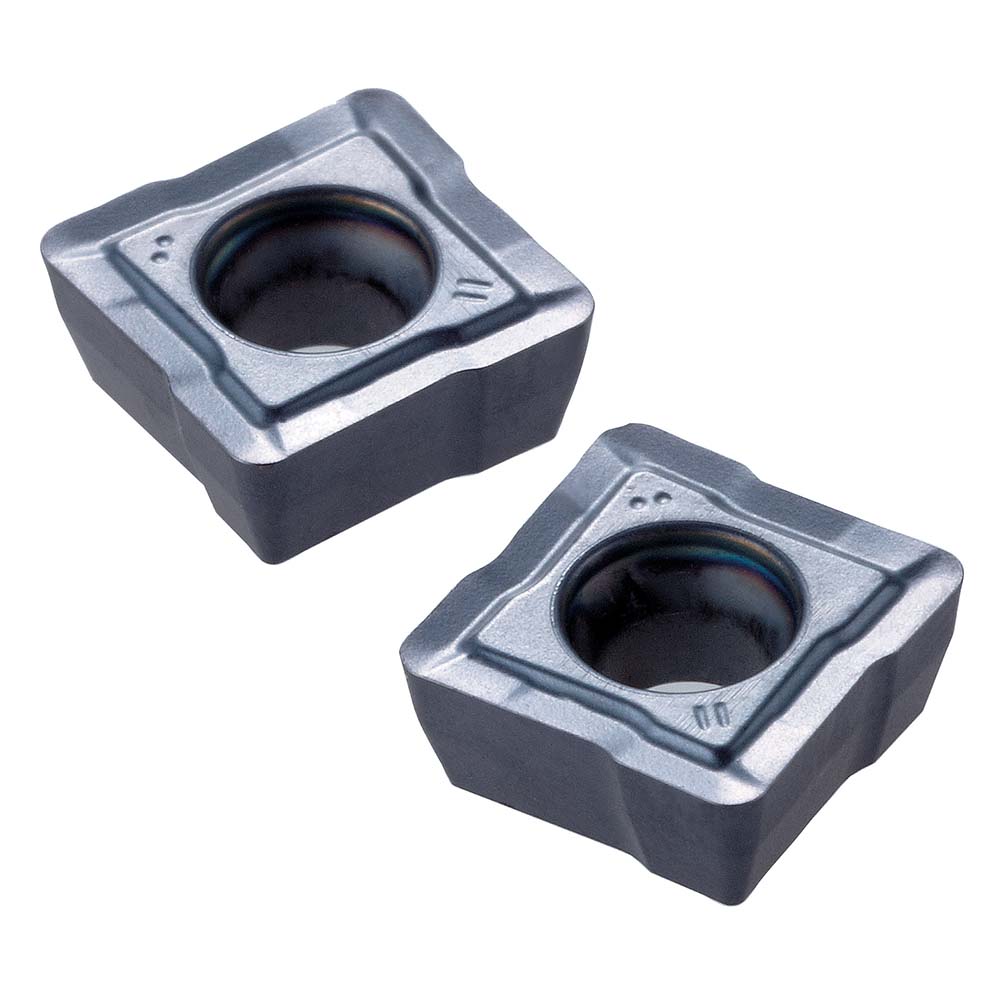

| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 083508 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 7.7680 |
| Series | 52504 |
| Flute Length (Decimal Inch) | 5.0910 |
| Body Length (Decimal Inch) | 5.4060 |
| Shank Length (Decimal Inch) | 2.3620 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 8.36x8.36 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XCMT083508 |
| Insert Lock Screw | 7808135 |
| Coolant Through | Yes |
| Country of Origin | Luxembourg |
| undefined | undefined |
| MSC Number | MSC# 55897193 |
