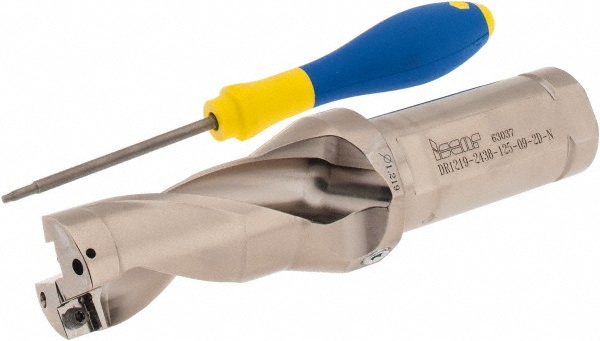

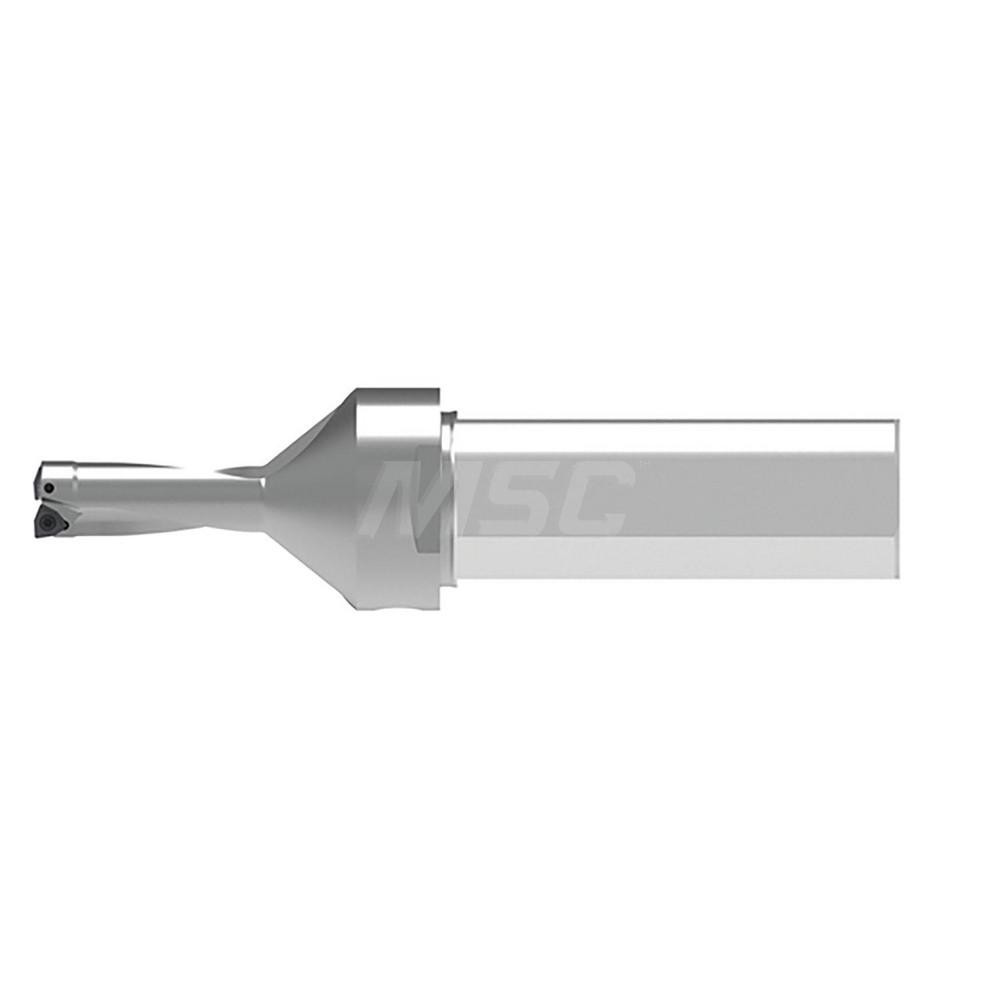

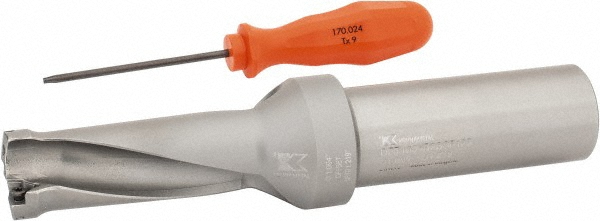

Weldon Flat & Flange Shank, Uses XCMT 094008 Inserts, Series 52505
| Compatible Drill Style | P5D |
|---|---|
| Maximum Drill Diameter (Inch) | 1-7/32 |
| Maximum Drill Diameter (Decimal Inch) | 1.2188 |
| Maximum Drill Depth (Inch) | 6-3/32 |
| Maximum Drill Depth (Decimal Inch) | 6.0940 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 094008 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 9.3620 |
| Series | 52505 |
| Flute Length (Decimal Inch) | 6.0940 |
| Body Length (Decimal Inch) | 7.0000 |
| Shank Length (Decimal Inch) | 2.3620 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 9.62x9.62 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XCMT094008 |
| Insert Lock Screw | 7808135 |
| Coolant Through | Yes |
| Country of Origin | Luxembourg |
| undefined | undefined |
| MSC Number | MSC# 26306225 |
