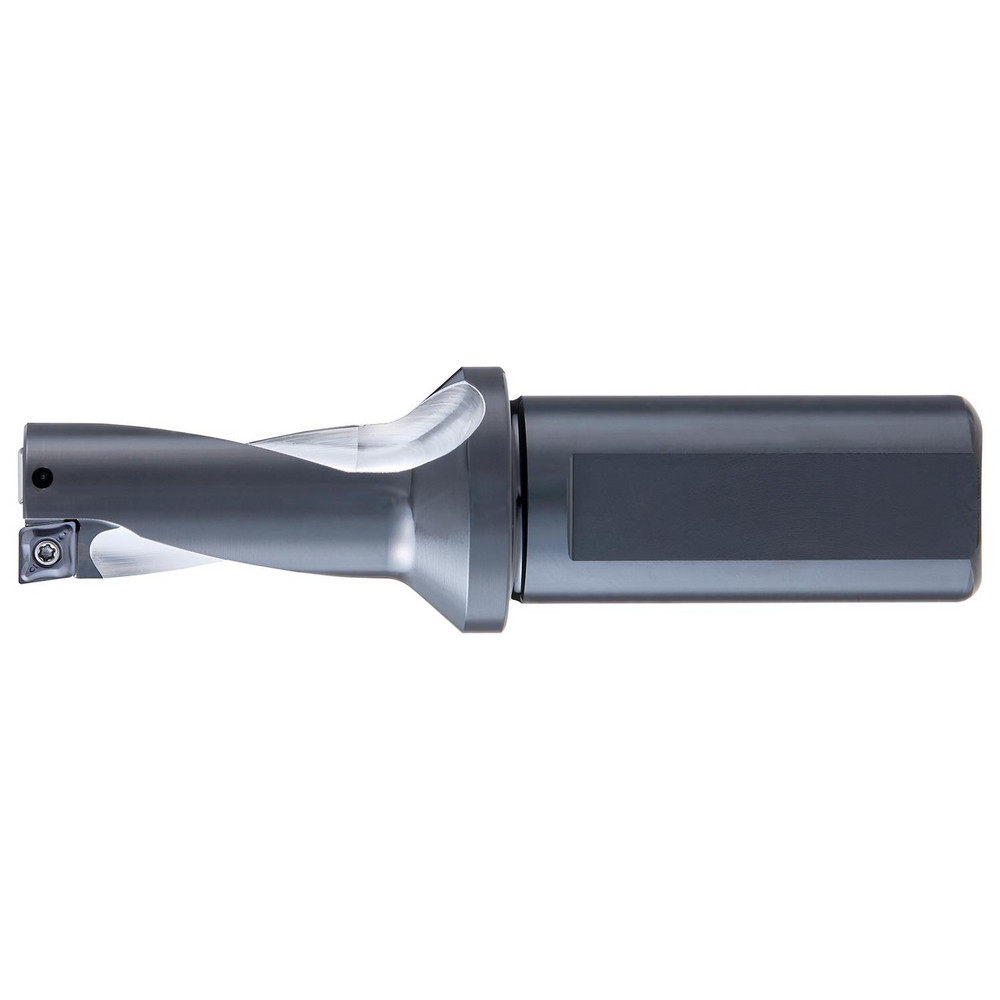

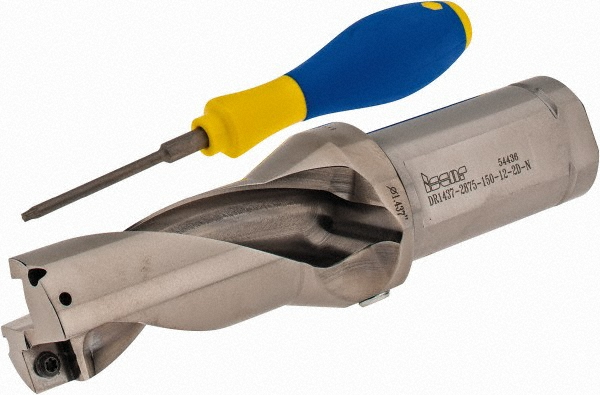

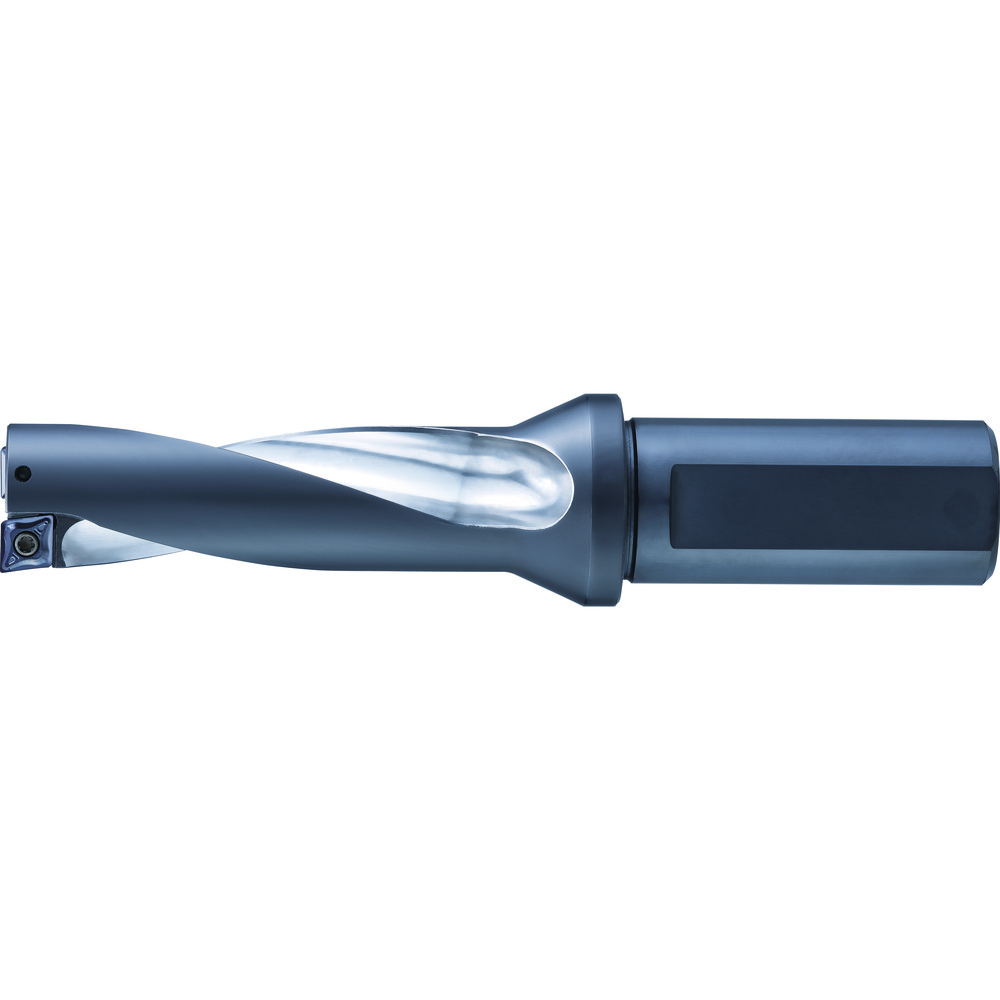

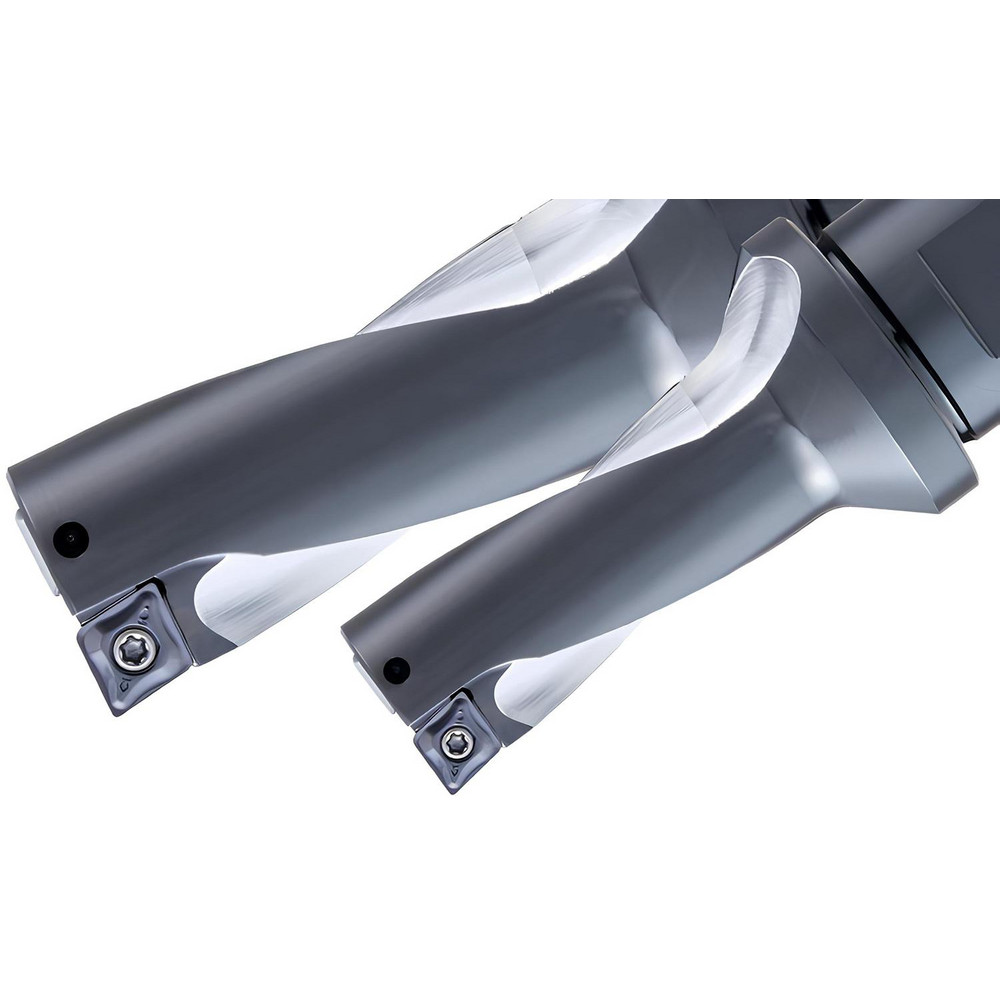

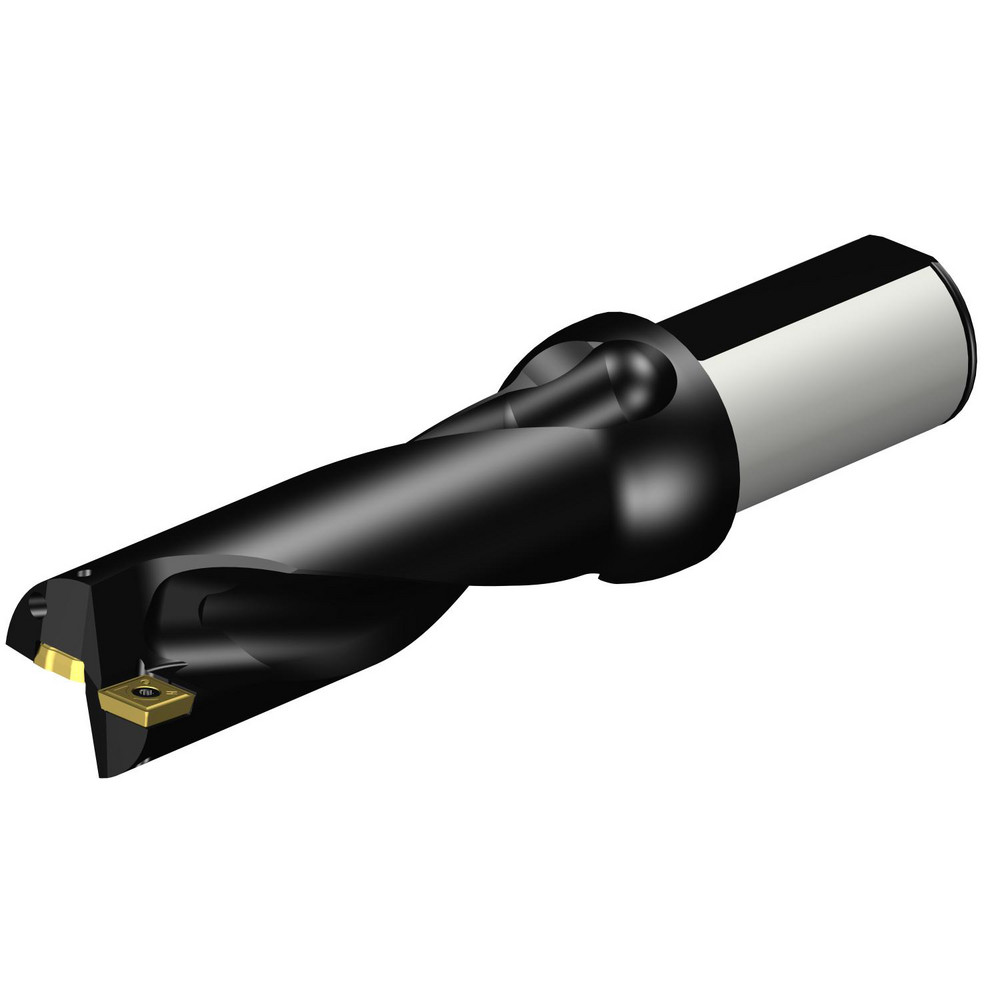

Weldon Flat & Flange Shank, Uses ZPNT 100408 Inserts, Series 52513
| Compatible Drill Style | PDZ |
|---|---|
| Maximum Drill Diameter (Inch) | 1-7/16 |
| Maximum Drill Diameter (Decimal Inch) | 1.4375 |
| Maximum Drill Depth (Inch) | 2-7/8 |
| Maximum Drill Depth (Decimal Inch) | 2.8750 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Tool Material | Steel |
| Compatible Insert Style | ZPNT |
| Compatible Insert Size Code | 100408 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 6.5350 |
| Series | 52513 |
| Flute Length (Decimal Inch) | 2.8750 |
| Body Length (Decimal Inch) | 3.7790 |
| Shank Length (Decimal Inch) | 2.7560 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 10.95x10.95 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | ZPNT100408 |
| Insert Lock Screw | 7808137 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 26304766 |
