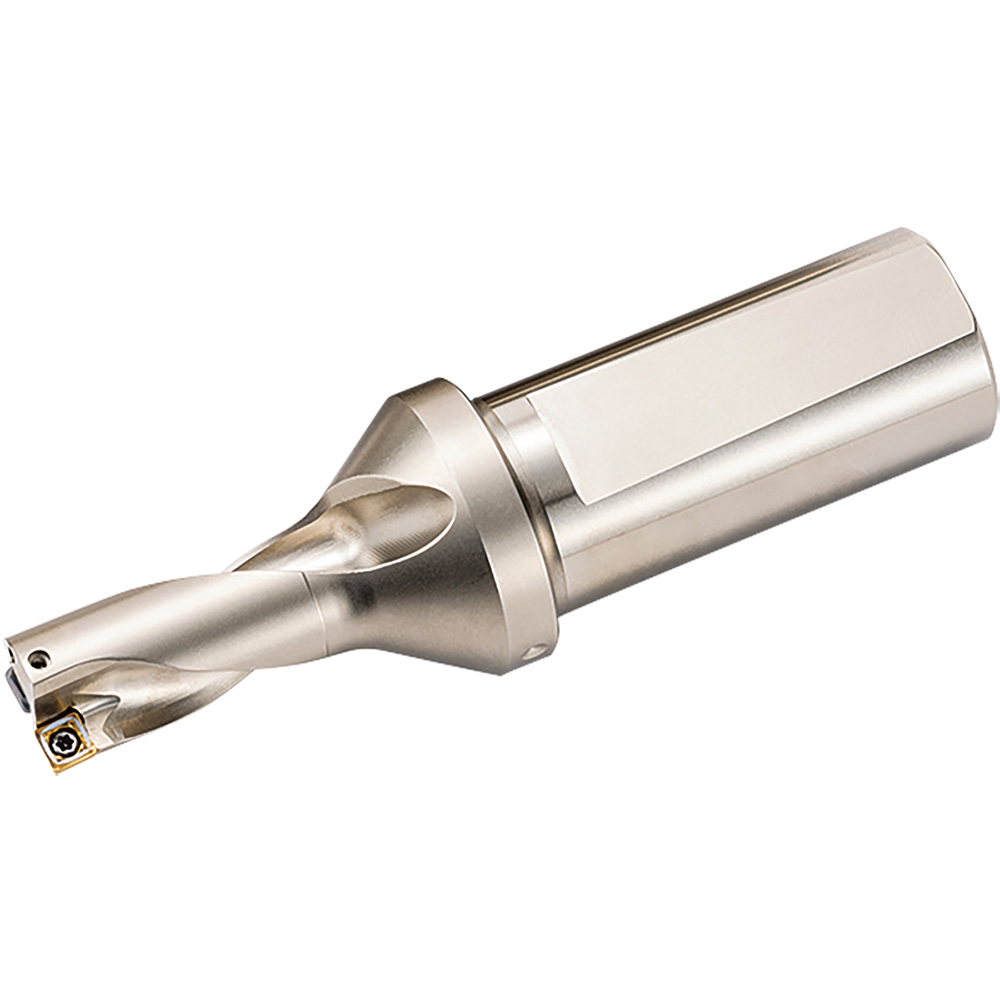

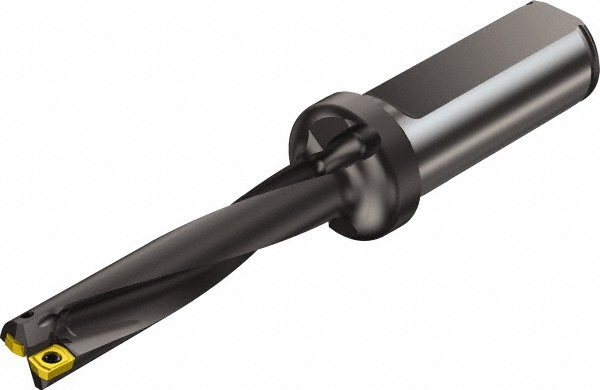

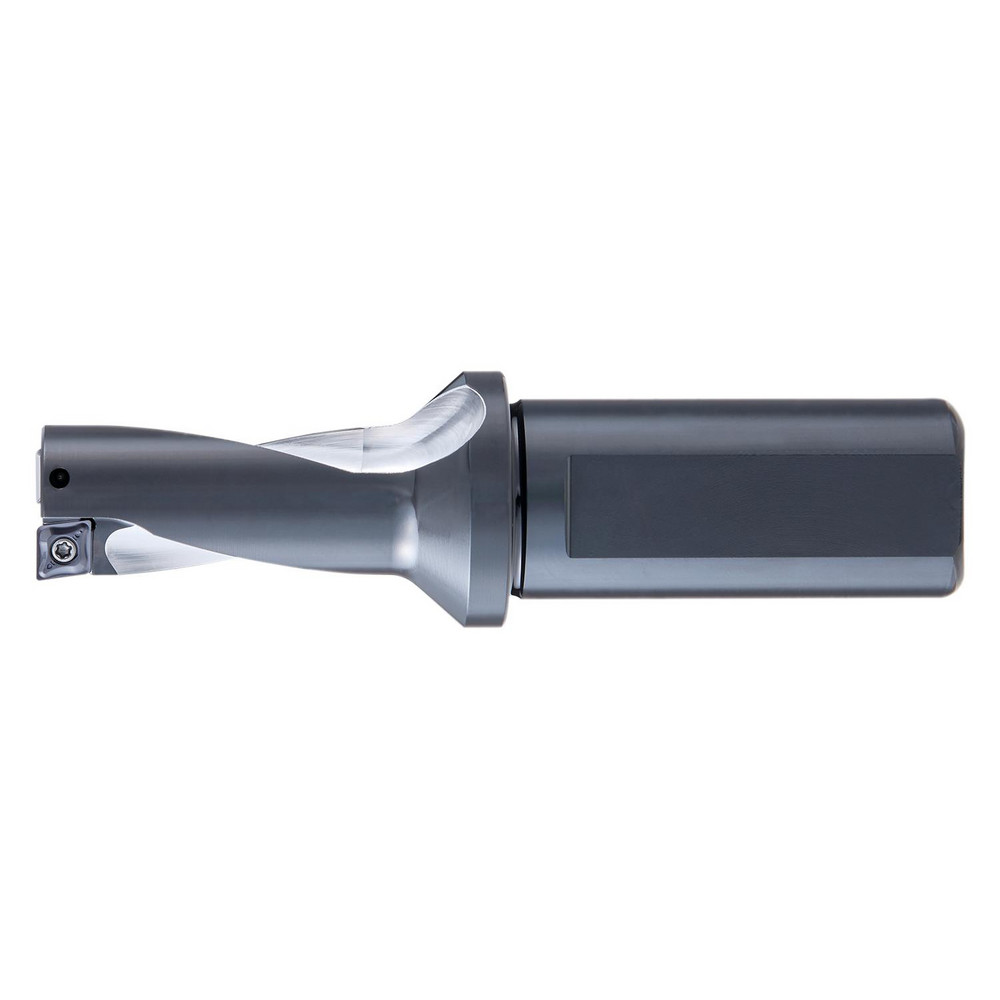

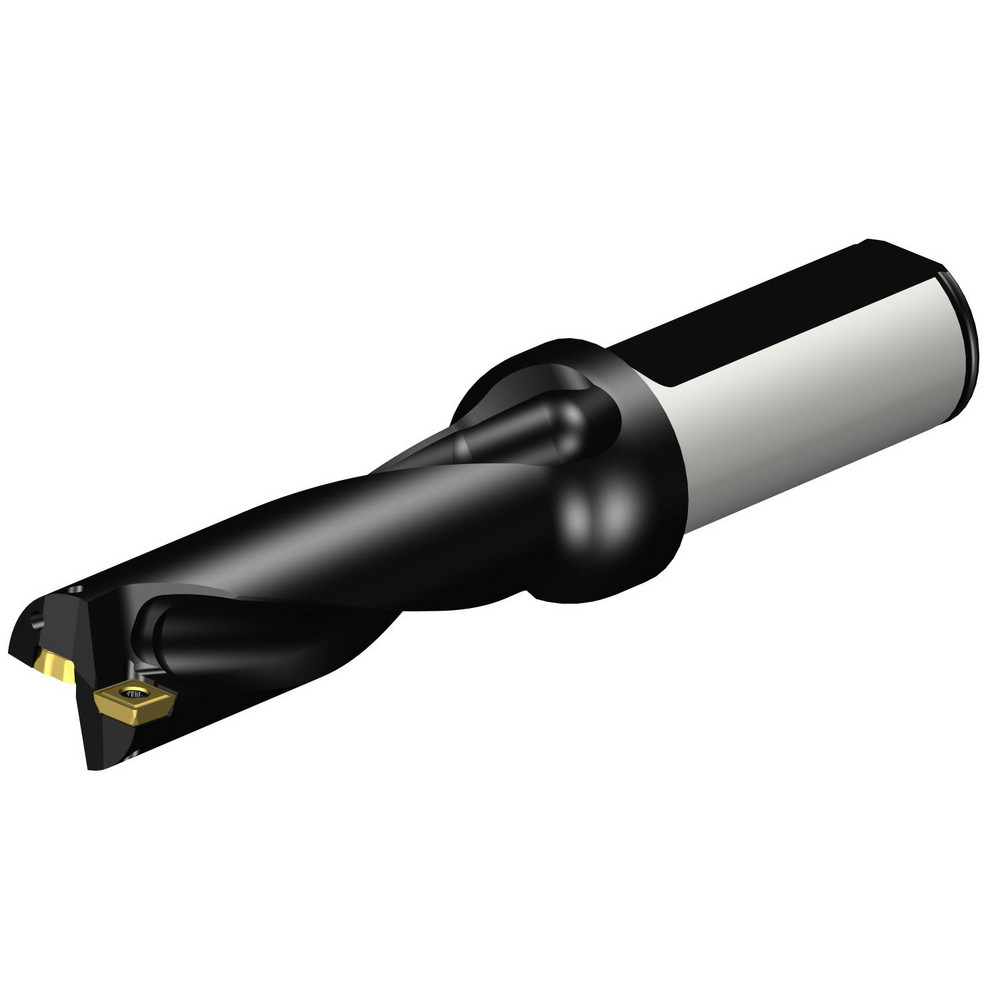

Weldon Flat & Flange Shank, Uses ZPNT 070304 Inserts, Series 78537
| Compatible Drill Style | PDZ |
|---|---|
| Maximum Drill Diameter (mm) | 23.00 |
| Maximum Drill Depth (mm) | 46.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 25 |
| Shank Diameter (Decimal Inch) | 25.0000 |
| Shank Diameter (mm) | 25.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | ZPNT |
| Compatible Insert Size Code | 070304 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | 78537 |
| Flute Length (mm) | 46.00 |
| Body Length (mm) | 69.00 |
| Shank Length (mm) | 56.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 7.84x7.84 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | ZPNT070304 |
| Insert Lock Screw | 7808136 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 26304618 |
