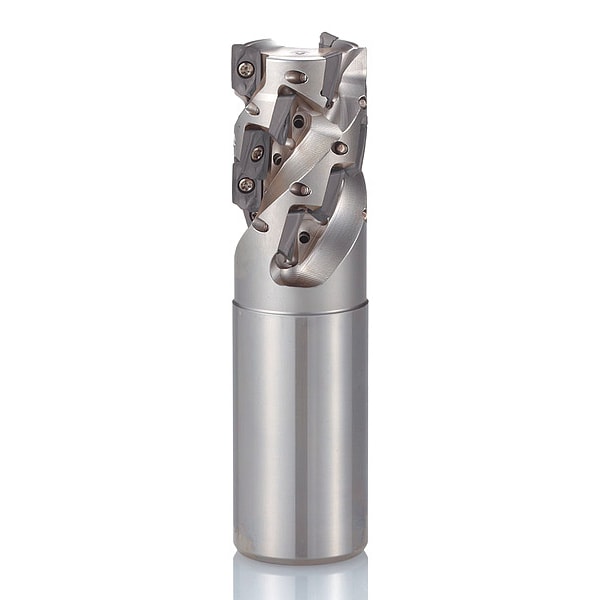

Indexable Square Shoulder End Mill, Shank Dia.: 18.00mm
| Item | Indexable Square Shoulder End Mill |
|---|---|
| Series | BT50 |
| Overall Length | 125 mm |
| Depth of Cut | 27 mm |
| Coolant Fed | Coolant Through |
| Shank Type - Machining | Cylindrical |
| Shank Dia. | 25 mm |
| Standards | JIS B 6339 |
| Features | Excellent Chip Evacuation, More Economical and Simplified Insert Management, Variable Axial Rake Angle |
| Cutting Direction | Right Hand |
| Insert Size | 11.00 x 6.80 mm |
| Connection Size | BT50 |
| Compatible Hardware | Clamping Screw, Wrench |
| Insert Holding Type | Clamping Screw |
| Cutting Application | Facing, Side Milling, Slotting |
| ANSI Code | PSEL11R025SS25-2-27 |
| Insert Style | ZD_T11 |
| Max. Cutting Dia. | 25 mm |
| Number of Inserts | 6 |
| Shank Length | 75 mm |
| Side Cutting Edge Angle | 90 deg |
| Insert Cutting Edge Length | 27 mm |
| Toolholder Style | PSEL |
| Taper Shank Size | Not Applicable |
| Insert Shape | Diamond |
| Package Quantity | 1 |
