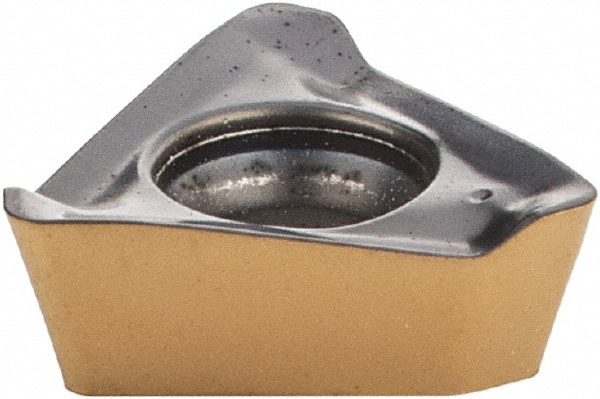

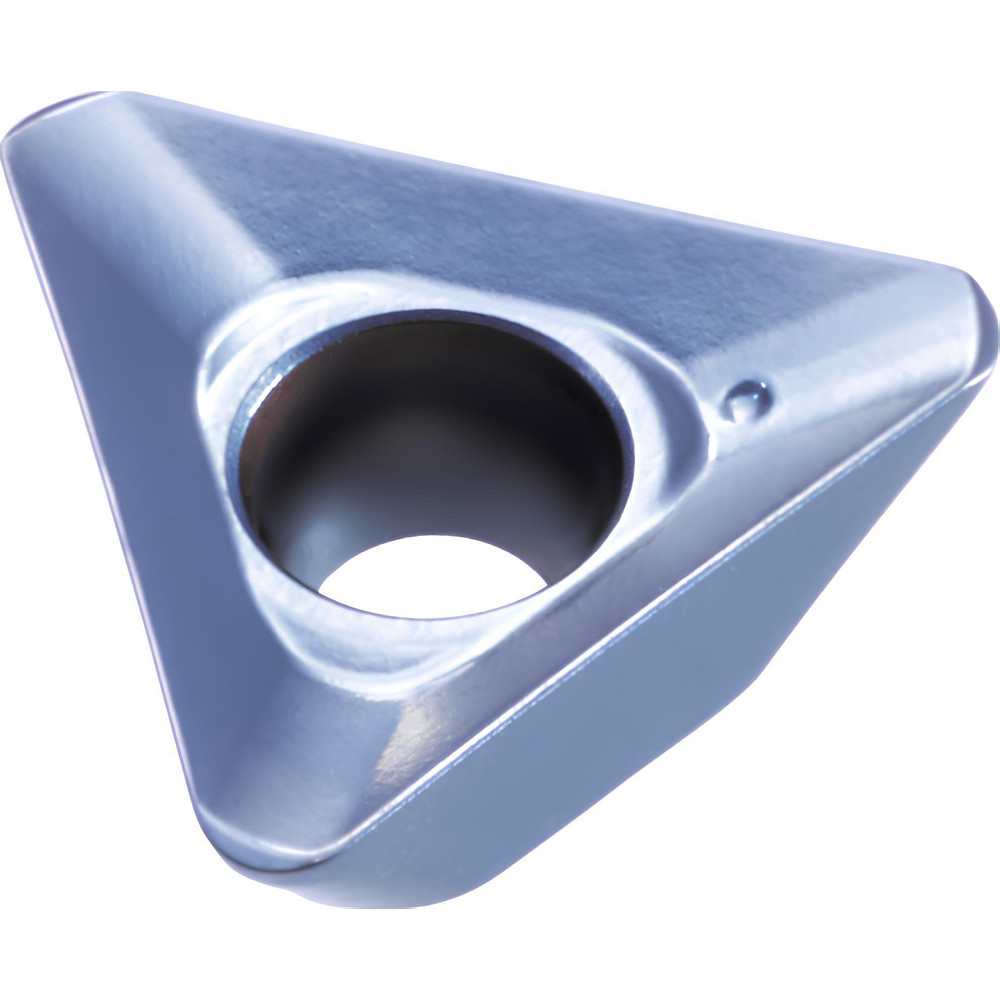

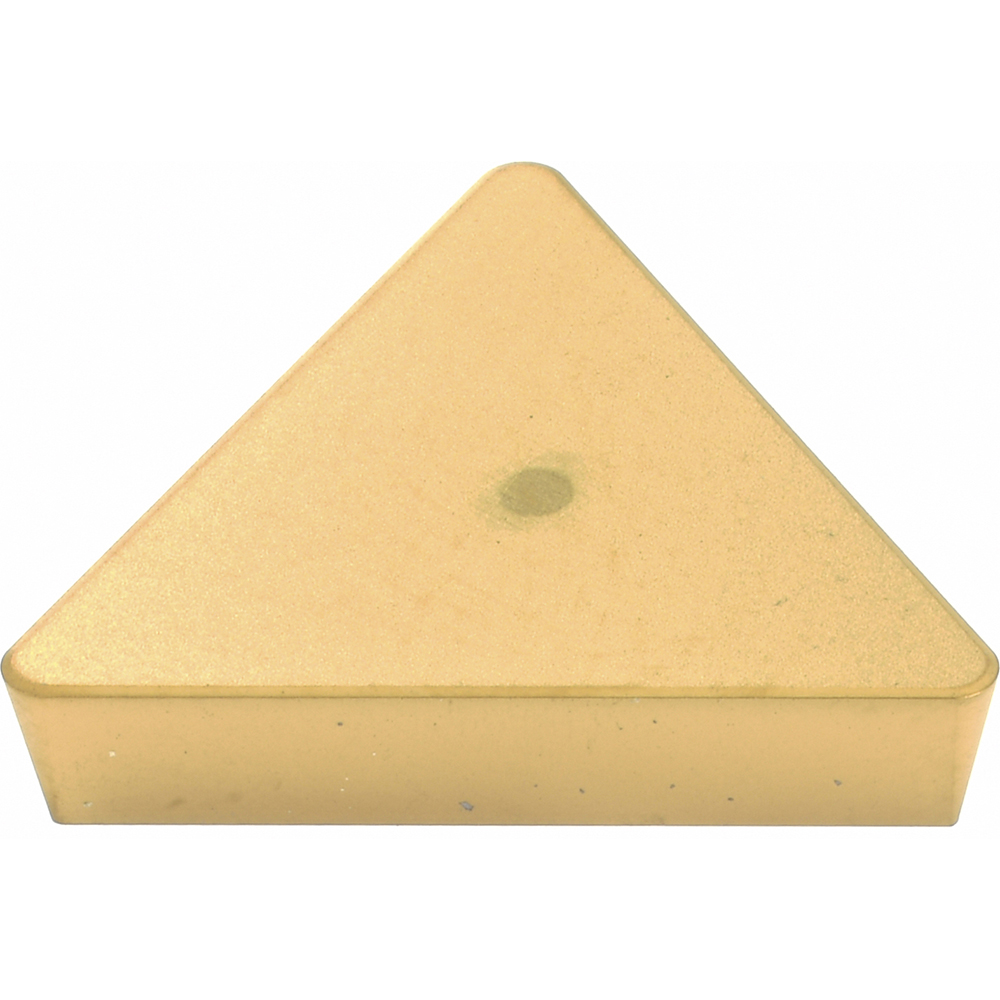

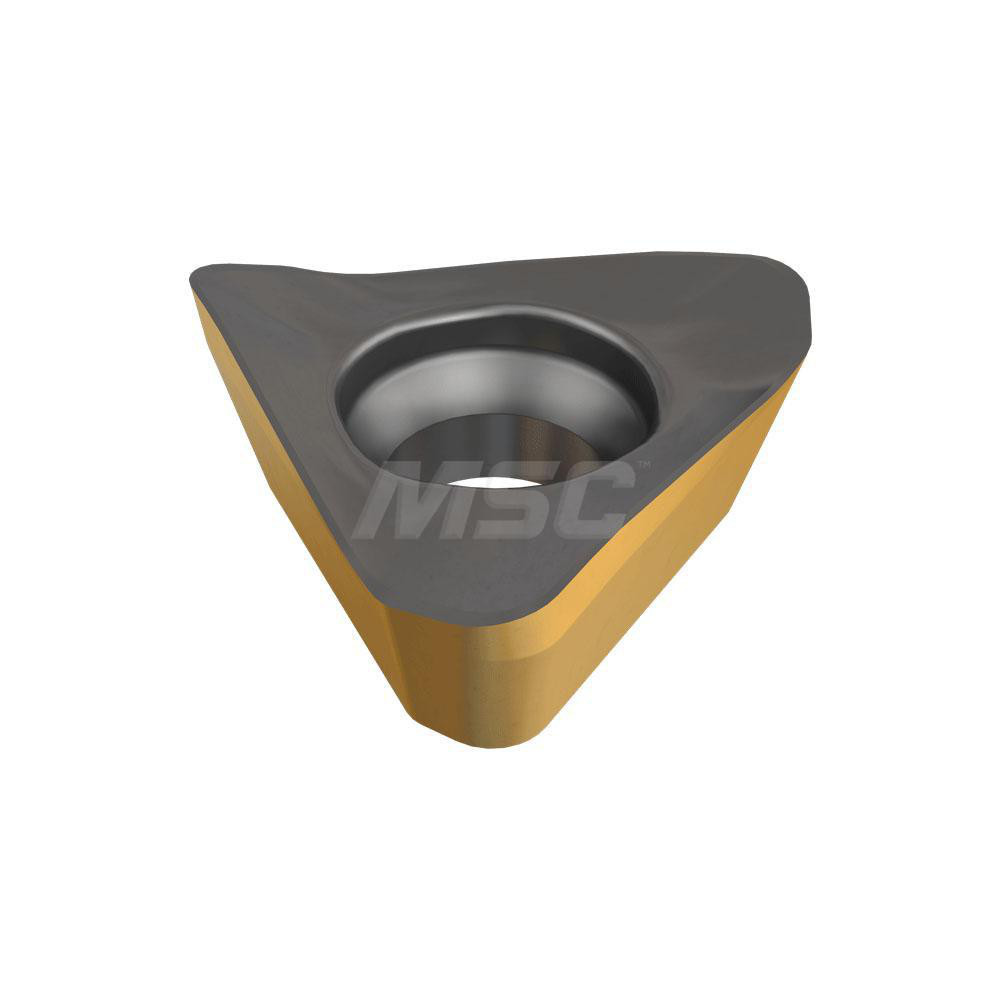

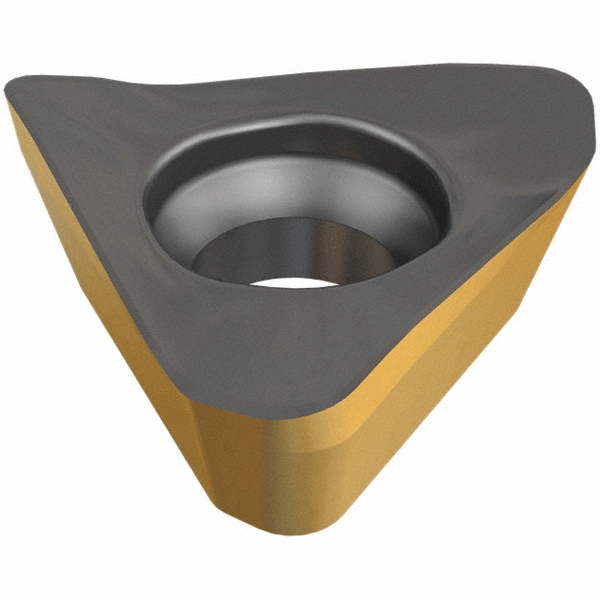

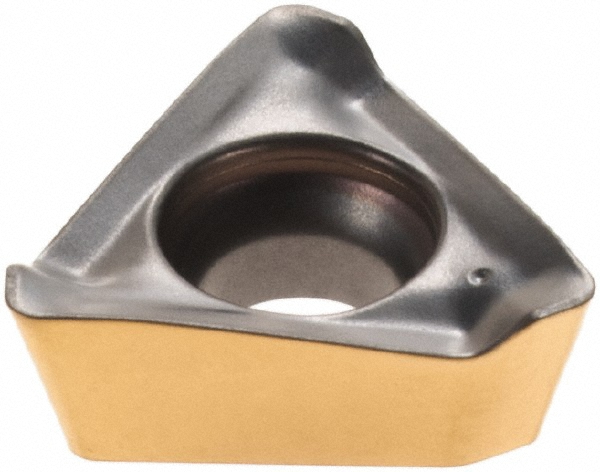

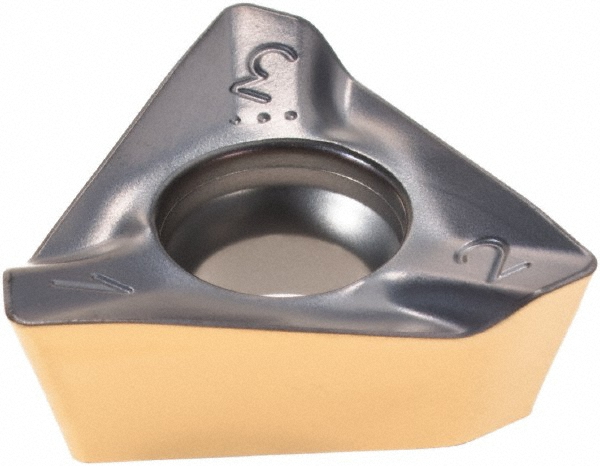

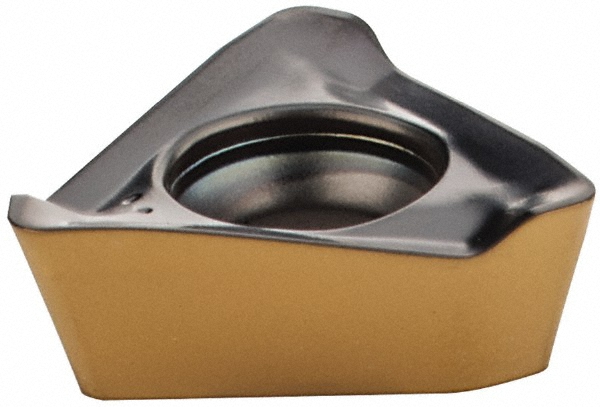

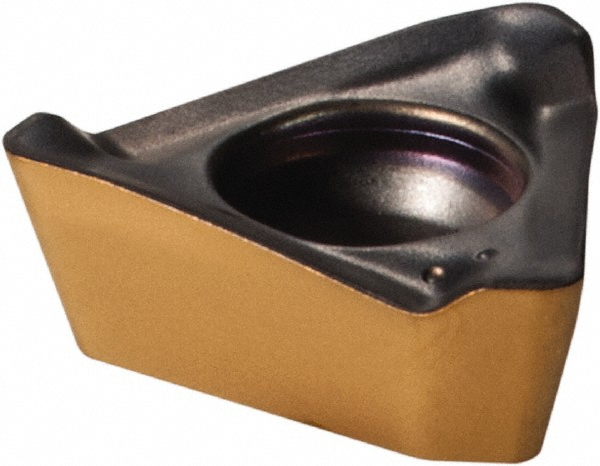

TiAlN Finish, 3.18 mm Thick
| Insert Style | TPKT |
|---|---|
| Insert Size | 11 |
| Insert Shape | Triangle |
| Manufacturer Grade | XP9020 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
| Thickness (mm) | 3.18 |
| Coating/Finish | TiAlN |
| Relief Angle | 11.00 |
| Insert Size Code | 110308 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.4000 to 0.4500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4016 |
| Series | 78PLDS |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; H; M; N |
| Ansi Code | TPKT110308ER |
| Iso Code | TPKT110308ER |
| Standards | ISO; ANSI |
| Rake Angle | 11 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 7814205 |
| Chip Breaker | Common |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.4331 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4331 |
| Country of Origin | Luxembourg |
| undefined | undefined |
| MSC Number | MSC# 14753644 |
