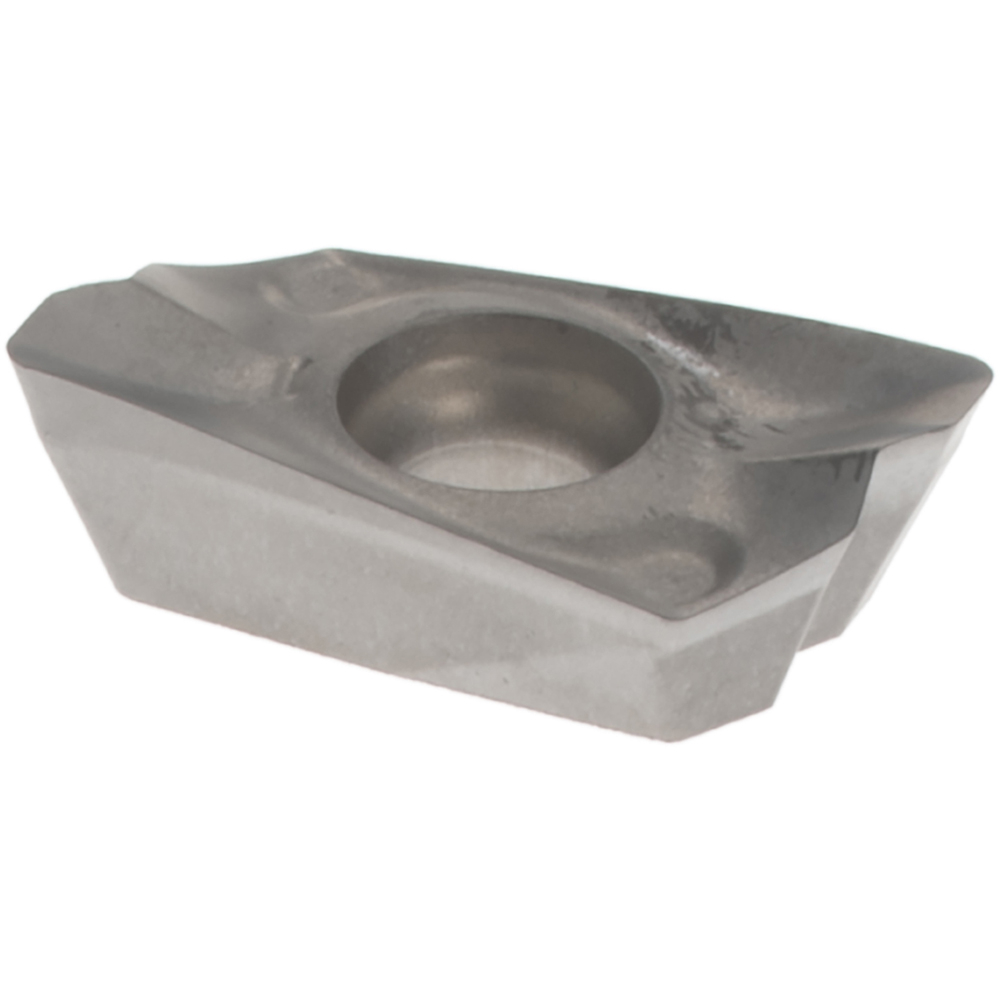

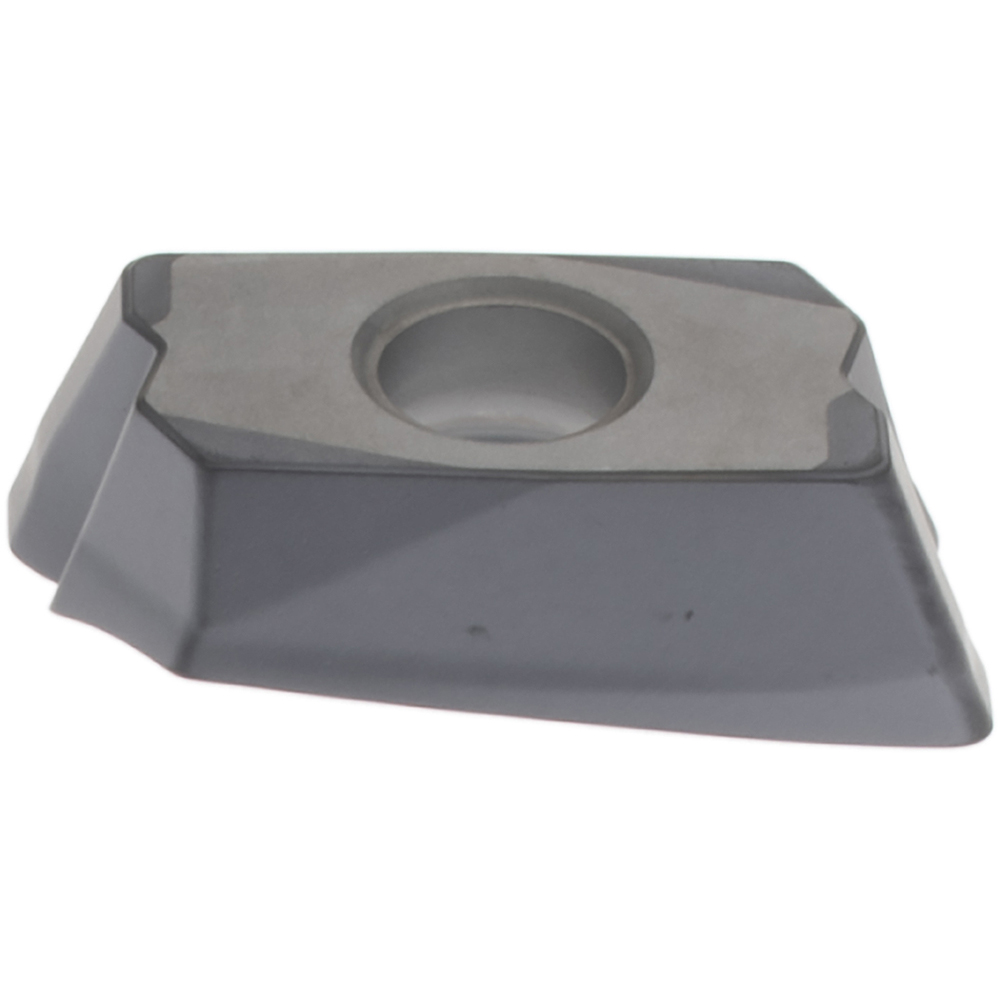

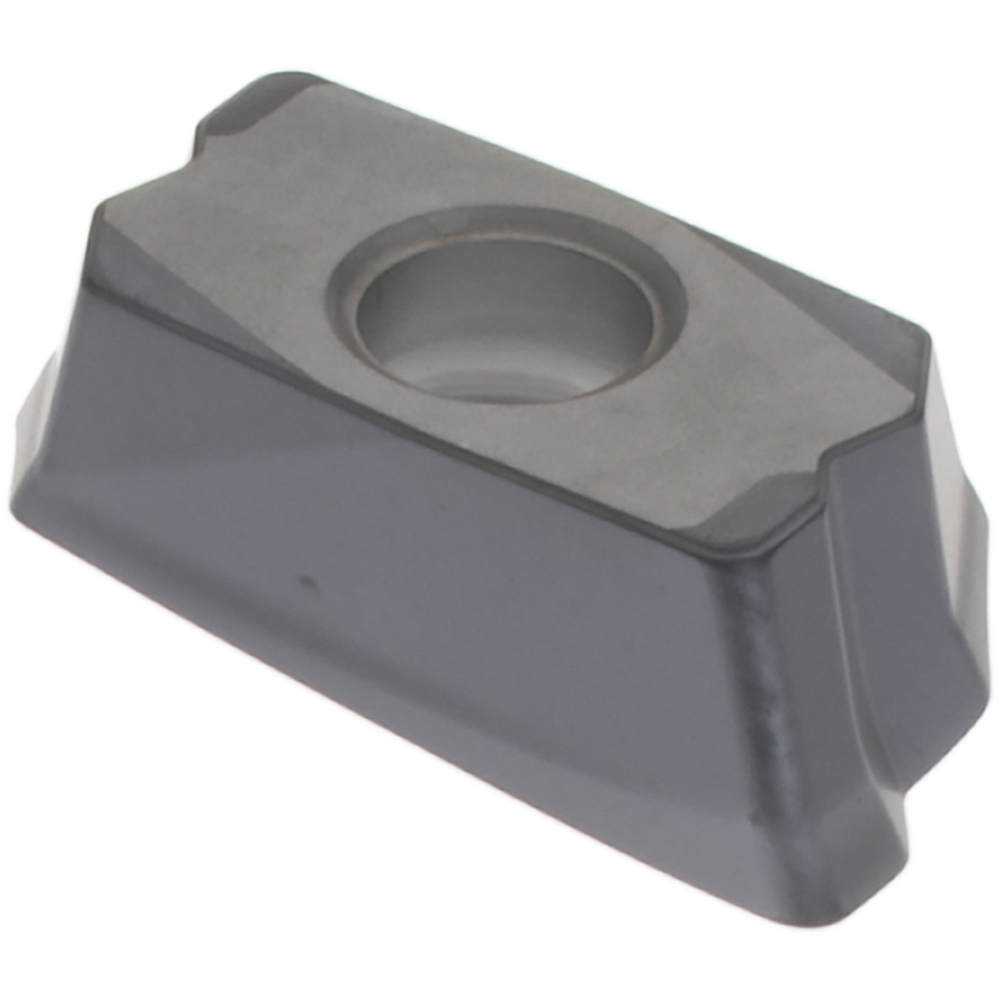

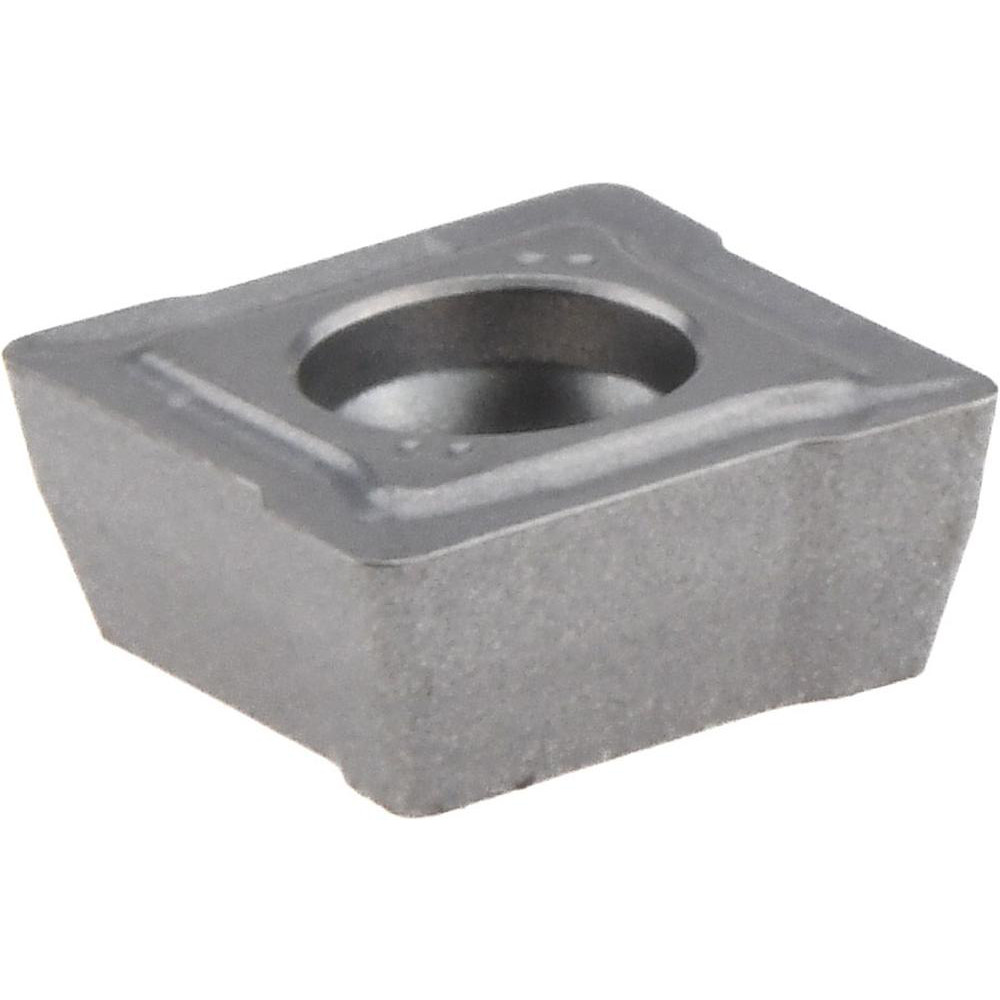

TiALN Finish, 5.56 mm Thick, 9.30 mm Wide
| Insert Style | ZDKT |
|---|---|
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | XP3035 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2189 |
| Thickness (mm) | 5.56 |
| Coating/Finish | TiALN |
| Relief Angle | 15.00 |
| Insert Size Code | 150508 |
| Thickness (Inch) | 7/32 |
| Inscribed Circle (Decimal Inch) | 0.3661 |
| Inscribed Circle (mm) | 9.30 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Inch) | 1/32 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0630 |
| Series | 78PSE |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Ansi Code | ZDKT150508SR-GM |
| Iso Code | ZDKT150508SR-GM |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed; Chamfered |
| Manufacturers Catalog Number | 7814029 |
| Cutter Series Compatibility | 78PSE |
| Chip Breaker | GM |
| UNSPSC Code | 23171618 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 14.00 |
| Width (Decimal Inch - 4 Decimals) | 0.3661 |
| Width (mm - 2 Decimals) | 9.30 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5906 |
| Country of Origin | Luxembourg |
| undefined | undefined |
| MSC Number | MSC# 68560424 |
