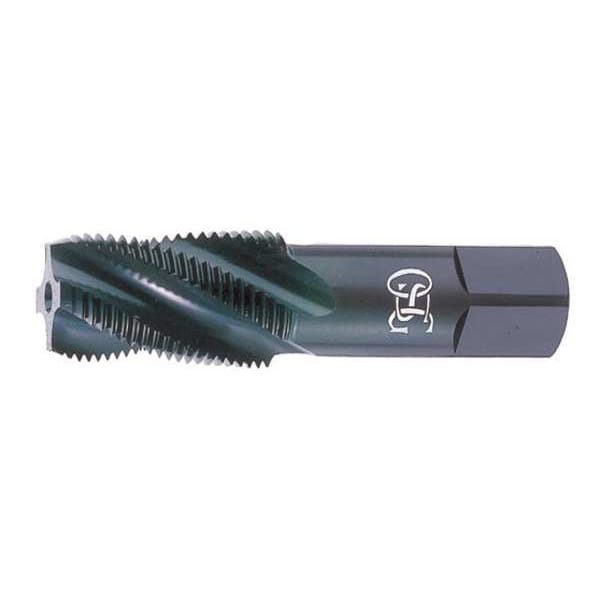

Pipe Tap, 1"-11-1/2, Taper, 4 Flutes, NPT
| Item | Pipe Tap |
|---|---|
| Tap Thread Size | 1"-11-1/2 |
| Tap Chamfer | Taper |
| Number of Flutes | 4 |
| Tap Thread Type | NPT |
| Tap Style | Pipe |
| List Number | 308 |
| Thread Length | 1-3/4 in |
| Number of Pieces | 1 |
| Tap Grouping | Tap |
| Shank Dia. | 1-1/8 in |
| Overall Length | 3-3/4 in |
| Thread Direction | Right Hand |
| Tap Dimension Type | Pipe |
| Tap Material | Vanadium High Speed Steel |
| Standards | ANSI |
| Pitch Diameter Limit | Not Rated |
| Tap Size | 1" |
| Tap Finish | Oxide |
| Cutting Direction - Machining | Right Hand |
| Series | 308 |
| Threads per Inch | 11.5 |
| Measurement System | Fractional Inch |
| Square Size | 0.843 in |
| Extended Neck | Yes |
| Thread Standard | NPT |
| Primary Material Application ISO Code | M |
| Max. Projection | 0.678 in |
| Tap Shank Standard | ANSI |
| Drill Bit Size | 1-1/8 in, 1-9/64 in |
| Primary Material Application | Stainless Steel |
| Coolant Fed | Non-Coolant Through |
| Secondary Material Application | Steel |
| Thread Size | 1"-11 1/2 |
| Material Grade - Machining | 308 |
| Helix Angle | 15 deg |
| Tap Length Standard | ANSI |
| 75% Thread Drill Size | 1.1406 in |
| Shank Length | 1-63/64 in |
| Secondary Material Application ISO Code | P |
| Size | 1" |
| Package Quantity | 1 |
