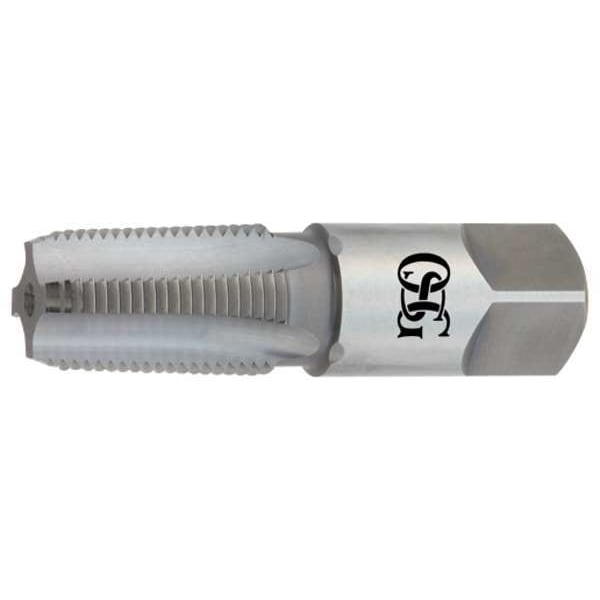

Pipe Tap, 1"-11-1/2, Taper, 5 Flutes, NPTF
| Item | Pipe Tap |
|---|---|
| Tap Thread Size | 1"-11-1/2 |
| Tap Chamfer | Taper |
| Number of Flutes | 5 |
| Tap Thread Type | NPTF |
| Tap Size | 1" |
| Shank Dia. | 1-1/8 in |
| Thread Length | 1-3/4 in |
| Tap Material | High Speed Steel |
| Tap Finish | TiCN |
| Thread Direction | Right Hand |
| Tap Style | Pipe |
| Number of Pieces | 1 |
| Pitch Diameter Limit | Not Rated |
| Overall Length | 3-3/4 in |
| Tap Grouping | Tap |
| Standards | ANSI |
| Tap Dimension Type | Pipe |
| List Number | 118 |
| Cutting Direction - Machining | Right Hand |
| Series | 118 |
| Spiral Direction | Neutral |
| Square Size | 0.842 in |
| Extended Neck | Yes |
| Material Grade - Machining | 118 |
| Tap Shank Standard | ANSI |
| Threads per Inch | 11.5 |
| Coolant Fed | Non-Coolant Through |
| Primary Material Application | All Materials |
| Thread Size | 1"-11 1/2 |
| Shank Length | 1-63/64 in |
| Tap Length Standard | ANSI |
| Primary Material Application ISO Code | P, N, K, M, H, O, S |
| Drill Bit Size | 1-1/8 in, 1-9/64 in |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Max. Projection | 0.678 in |
| Helix Angle | 0 deg |
| Secondary Material Application ISO Code | K, N, P |
| Measurement System | Fractional Inch |
| Thread Standard | NPTF |
| 75% Thread Drill Size | 1.1406 in |
| Size | 1" |
| Package Quantity | 1 |
