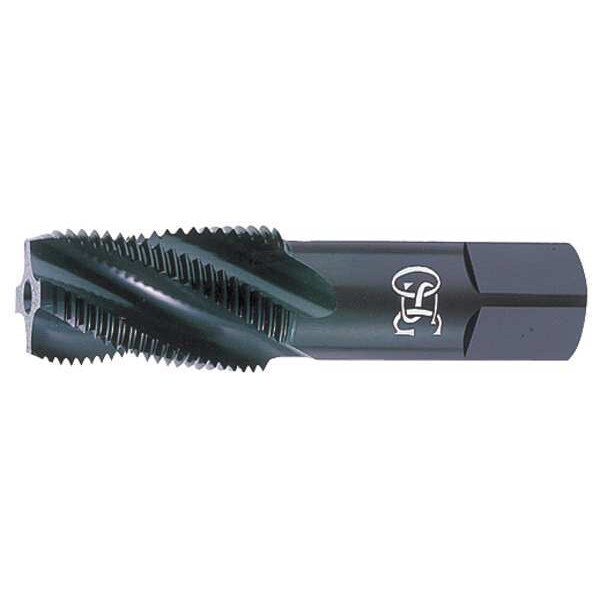

Pipe Tap, 1/16"-27, Taper, 4 Flutes, NPT
| Item | Pipe Tap |
|---|---|
| Tap Thread Size | 1/16"-27 |
| Tap Chamfer | Taper |
| Number of Flutes | 4 |
| Tap Thread Type | NPT |
| Tap Finish | TiN |
| Thread Direction | Right Hand |
| Standards | ANSI |
| Tap Style | Pipe |
| Thread Length | 11/16 in |
| Pitch Diameter Limit | Not Rated |
| Tap Size | 1/16" |
| Overall Length | 2-1/8 in |
| Shank Dia. | 0.313 in |
| Tap Grouping | Tap |
| List Number | 308 |
| Number of Pieces | 1 |
| Tap Dimension Type | Pipe |
| Tap Material | High Speed Steel |
| Series | 308 |
| Cutting Direction - Machining | Right Hand |
| Helix Angle | 15 deg |
| Secondary Material Application | Steel |
| Primary Material Application | Stainless Steel |
| Extended Neck | Yes |
| Tap Shank Standard | ANSI |
| Secondary Material Application ISO Code | P |
| Material Grade - Machining | 308 |
| Drill Bit Size | 15/64 in, C in |
| Threads per Inch | 27 |
| Thread Standard | NPT |
| Shank Length | 1-3/16 in |
| Max. Projection | 0.312 in |
| Tap Length Standard | ANSI |
| Square Size | 0.234 in |
| Thread Size | 1/16"-27 |
| Primary Material Application ISO Code | M |
| Coolant Fed | Non-Coolant Through |
| Measurement System | Fractional Inch |
| 75% Thread Drill Size | C |
| Size | 1/16" |
| Package Quantity | 1 |
