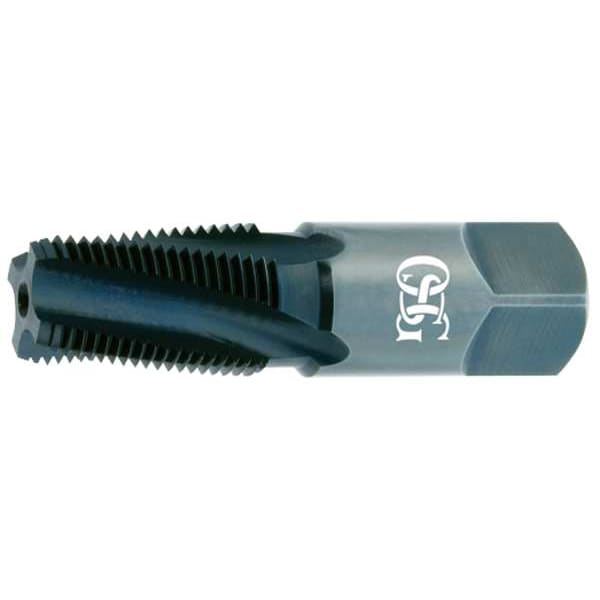

Pipe Tap, 1/4"-18, Taper, 4 Flutes, NPTF
| Item | Pipe Tap |
|---|---|
| Tap Thread Size | 1/4"-18 |
| Tap Chamfer | Taper |
| Number of Flutes | 4 |
| Tap Thread Type | NPTF |
| Shank Dia. | 0.563 in |
| Tap Grouping | Tap |
| Number of Pieces | 1 |
| Tap Material | High Speed Steel |
| Pitch Diameter Limit | Not Rated |
| Tap Dimension Type | Pipe |
| Standards | ANSI |
| List Number | S125 |
| Tap Style | Pipe |
| Overall Length | 2-7/16 in |
| Tap Finish | Bright |
| Thread Length | 1-1/16 in |
| Thread Direction | Right Hand |
| Tap Size | 1/4" |
| Cutting Direction - Machining | Right Hand |
| Series | S125 |
| Shank Length | 1-7/64 in |
| Helix Angle | 15 deg |
| Measurement System | Fractional Inch |
| Tap Length Standard | ANSI |
| Material Grade - Machining | S125 |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| 75% Thread Drill Size | 7/16 in |
| Max. Projection | 3/8 in |
| Extended Neck | Yes |
| Tap Shank Standard | ANSI |
| Primary Material Application ISO Code | P, N, K, M, H, O, S |
| Thread Standard | NPTF |
| Drill Bit Size | 27/64 in, 7/16 in |
| Coolant Fed | Non-Coolant Through |
| Threads per Inch | 18 |
| Thread Size | 1/4"-18 |
| Spiral Direction | Neutral |
| Secondary Material Application ISO Code | K, N, P |
| Primary Material Application | All Materials |
| Square Size | 0.42 in |
| Size | 1/4" |
| Package Quantity | 1 |
