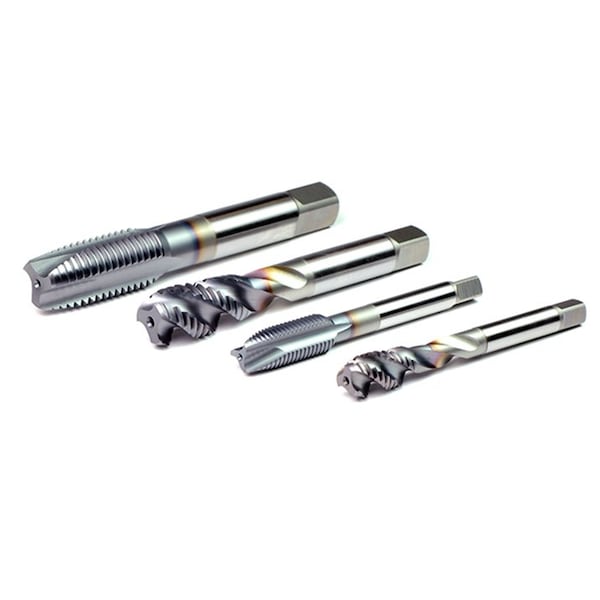

Sp Flute Tap, Mod Bottom, M12x1.25, V Coat
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 100 mm |
| Tap Style | Flute |
| Shank Dia. | 9.32 mm |
| Tap Chamfer | Modified Bottoming |
| Tap Material | Powdered Metal |
| Tap Size | M12 |
| Number of Flutes | 3 |
| Thread Length | 12 mm |
| Primary Material Application ISO Code | P, M, H |
| Material Grade - Machining | 16500 |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Secondary Material Application ISO Code | K, P, N |
| Series | 16500 |
| Measurement System | Metric |
| Thread Size | M12x1.25 |
| Thread Direction | Right Hand |
| Square Size | 6.98 mm |
| Thread Pitch | 1.25 mm |
| Drill Bit Size | 10.70mm, 10.78mm, 10.86mm, 10.94mm, 11.03mm |
| Tap Thread Size | M12x1.25 |
| Shank Type - Machining | Straight |
| Extended Neck | Yes |
| Coolant Fed | Non-Coolant Through |
| Tap Length Standard | DIN |
| Tap Finish | TiCN |
| Thread Standard | Metric Fine |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Features | Osg'S Proprietary V Coating, Powder Metallurgy Hss, Sharp Cutting Edge, Variable Helix Flute |
| Tap Shank Standard | DIN |
| Standards | DIN |
| Thread Limit | D6 |
| Helix Angle | Variable |
| Shank Length | 50.9 mm |
| Cutting Direction - Machining | Right Hand |
| Size | M12 |
| Package Quantity | 1 |
