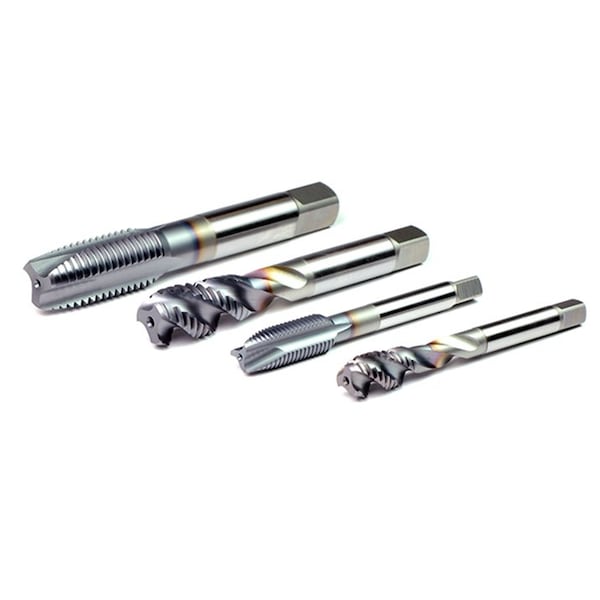

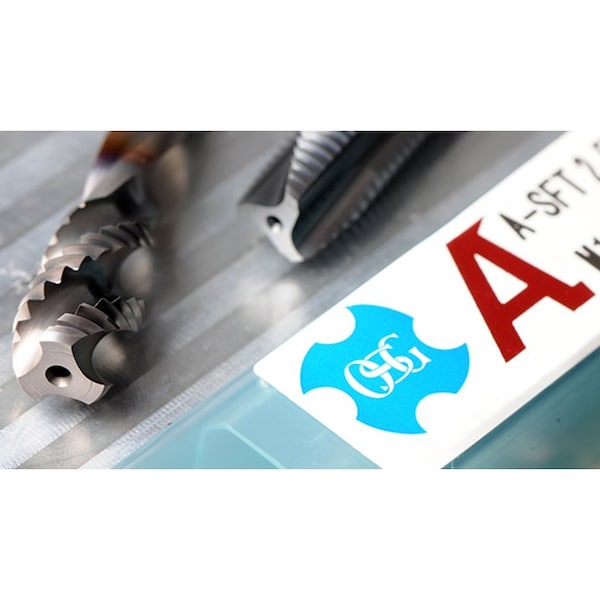

Sp Flute Tap, Mod Bttm, 3/8x24, V Coat, 3Flt
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 3-17/32 in |
| Tap Style | Flute |
| Shank Dia. | 3/8 in |
| Tap Chamfer | Modified Bottoming |
| Tap Material | Powdered Metal |
| Tap Size | 3/8" |
| Number of Flutes | 3 |
| Thread Length | 1/2 in |
| 75% Thread Drill Size | 8.50 |
| Tap Thread Size | 3/8"-24 |
| Tap Length Standard | DIN |
| Square Size | 0.285 in |
| Thread Standard | UNF |
| 55% Thread Drill Size | 11/32 in |
| Cutting Direction - Machining | Right Hand |
| Thread Direction | Right Hand |
| Material Grade - Machining | VC-10 |
| Standards | DIN |
| Drill Bit Size | 0.3425 in, 0.3317 in, 0.3344 in, 0.3371 in, 0.3398 in |
| Shank Type - Machining | Straight |
| Primary Material Application ISO Code | P, M, H |
| 65% Thread Drill Size | R |
| Thread Limit | H4 |
| Measurement System | Fractional Inch |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Tap Finish | TiCN |
| Series | 16505 |
| Coolant Fed | Non-Coolant Through |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Threads per Inch | 24 |
| Helix Angle | Variable |
| Extended Neck | Yes |
| Thread Size | 3/8"-24 |
| Tap Shank Standard | DIN |
| Secondary Material Application ISO Code | K, P, N |
| Shank Length | 2-5/32 in |
| Size | 3/8 |
| Package Quantity | 1 |
