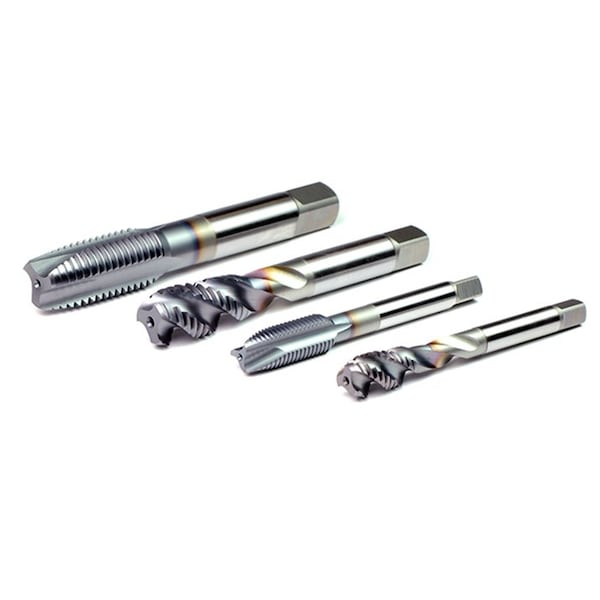

Sp Flute Tap, Mod Bttm, 5/8x18, V Coat, 3Flt
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 3-29/32 in |
| Tap Style | Flute |
| Shank Dia. | 15/32 in |
| Tap Chamfer | Modified Bottoming |
| Tap Material | Powdered Metal |
| Tap Size | 5/8" |
| Number of Flutes | 3 |
| Thread Length | 11/16 in |
| Shank Type - Machining | Straight |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| 65% Thread Drill Size | 37/64 in |
| Measurement System | Fractional Inch |
| Series | 16505 |
| Tap Thread Size | 5/8"-18 |
| Tap Shank Standard | DIN |
| Standards | DIN |
| Thread Direction | Right Hand |
| Features | OSG's Proprietary V Coating, Powder Metallurgy HSS, Sharp Cutting Edge, Variable Helix Flute |
| Square Size | 0.359 in |
| Material Grade - Machining | 16450 |
| Cutting Direction - Machining | Right Hand |
| Thread Size | 5/8"-18 |
| 75% Thread Drill Size | 13.60 |
| 55% Thread Drill Size | 14.8 mm |
| Extended Neck | Yes |
| Secondary Material Application ISO Code | K, P, N |
| Thread Standard | UNF |
| Shank Length | 1-25/32 in |
| Primary Material Application ISO Code | P, M, H |
| Coolant Fed | Non-Coolant Through |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Tap Length Standard | DIN |
| Threads per Inch | 18 |
| Helix Angle | Variable |
| Tap Finish | TiCN |
| Drill Bit Size | 0.5673 in, 0.5709 in, 0.5745 in, 0.5781 in, 0.5817 in |
| Thread Limit | H5 |
| Size | 5/8 |
| Package Quantity | 1 |
