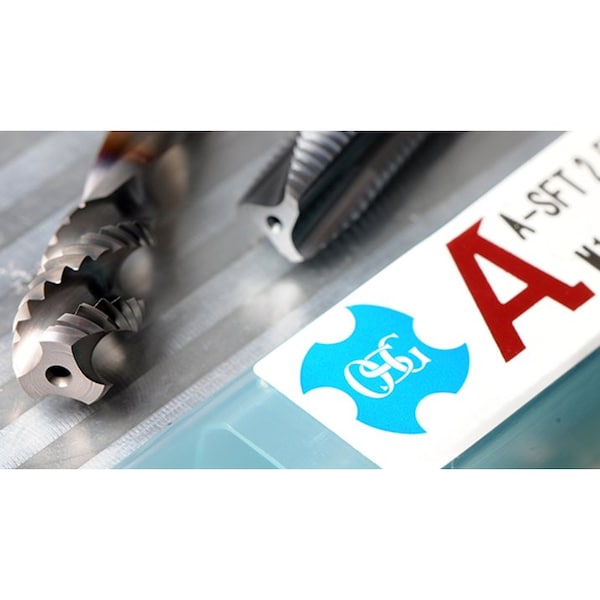

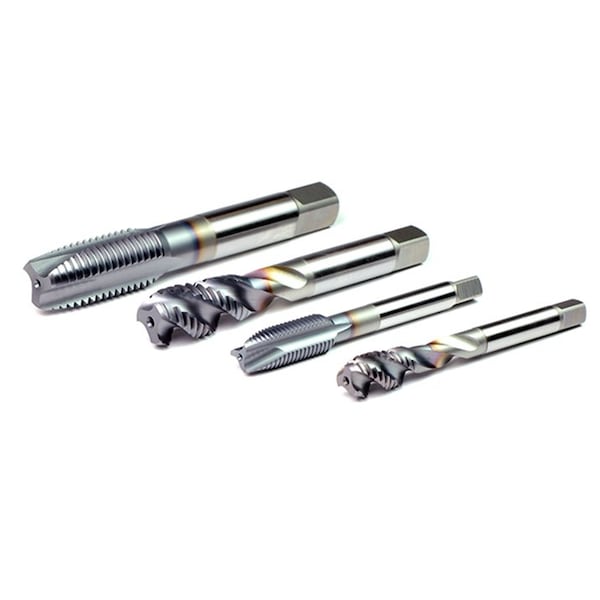

Spiral Flute Tap, 1"-8, Modified Bottom, Semi-Bottom, 4 Flutes
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 6-9/32 in |
| Number of Flutes | 4 |
| Tap Material | Powdered Metal |
| Shank Dia. | 51/64 in |
| Tap Style | Flute |
| Tap Chamfer | Modified Bottoming |
| Tap Size | 1" |
| 75% Thread Drill Size | 22.25 |
| Thread Length | 1-1/4 in |
| Tap Length Standard | DIN |
| Material Grade - Machining | 16505, VC-10 |
| Shank Type - Machining | Straight |
| Cutting Direction - Machining | Right Hand |
| Tap Shank Standard | DIN |
| Helix Angle | Variable |
| Tap Thread Size | 1"-8 |
| Thread Size | 1"-8 |
| Tap Finish | TiCN |
| Threads per Inch | 8 |
| Shank Length | 3-1/4 in |
| Primary Material Application ISO Code | P, M, H |
| Measurement System | Fractional Inch |
| Standards | ANSI, DIN |
| Thread Direction | Right Hand |
| Series | 16505 |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Secondary Material Application ISO Code | K, P, N |
| Drill Bit Size | 0.8701 in, 0.8782 in, 0.8863 in, 0.8945 in, 0.9026 in |
| Coolant Fed | Non-Coolant Through |
| Thread Standard | UNC |
| Thread Limit | H4 |
| 65% Thread Drill Size | 57/64 in |
| Square Size | 0.6 in |
| Extended Neck | Yes |
| 55% Thread Drill Size | 29/32 in |
| Size | 1 |
| Package Quantity | 1 |
