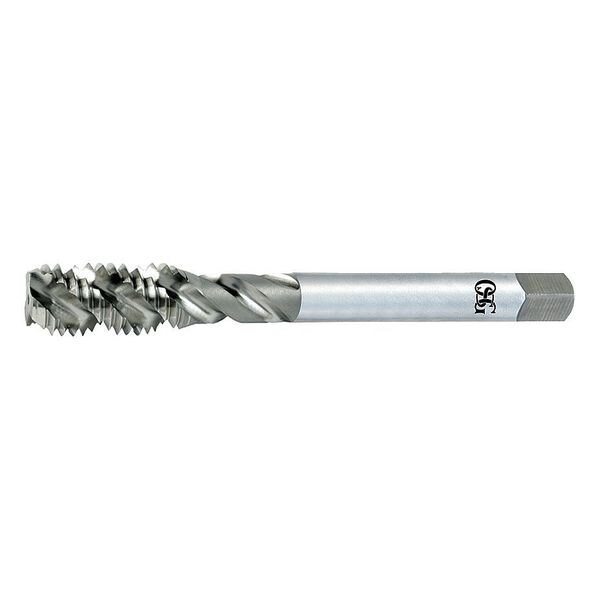

Spiral Flute Tap, #10-32, Plug, UNF, 3 Flutes, Bright
| Item | Spiral Flute Tap |
|---|---|
| Shank Dia. | 0.152 in |
| Tap Style | Spiral Flute |
| Tap Chamfer | Plug |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | #10 |
| Overall Length | 4 in |
| Thread Direction | Right Hand |
| Number of Flutes | 3 |
| Thread Length | 7/8 in |
| Tap Thread Type | UNF |
| Standards | ANSI |
| Tap Finish | Bright |
| Tap Grouping | Tap |
| Pitch Diameter Limit | H3 |
| Tap Thread Size | #10-32 |
| Number of Pieces | 1 |
| List Number | 918 |
| Cutting Direction - Machining | Right Hand |
| Series | 918 |
| Shank Length | 3-1/8 in |
| Coolant Fed | Non-Coolant Through |
| Primary Material Application | All Materials |
| Square Size | 0.151 in |
| Primary Material Application ISO Code | P, M, H, N, K, S, O |
| Tap Length Standard | ANSI |
| Thread Standard | UNF |
| Thread Size | #10-32 |
| 75% Thread Drill Size | #21 |
| Measurement System | Pipe |
| Extended Shank | Yes |
| 55% Thread Drill Size | 4.25 mm |
| Secondary Material Application ISO Code | K, P, N |
| Tap Type | Spiral Flute |
| Tap Shank Standard | ANSI |
| Extended Neck | Yes |
| Material Grade - Machining | 918 |
| Thread Limit | H3 |
| Threads per Inch | 32 |
| Secondary Material Application | Aluminum, Cast Iron, High Carbon Steel, Low Carbon Steel, Medium Carbon Steel |
| 65% Thread Drill Size | 4.15 mm |
| Helix Angle | 50 deg |
| Size | #10 |
| Package Quantity | 1 |
