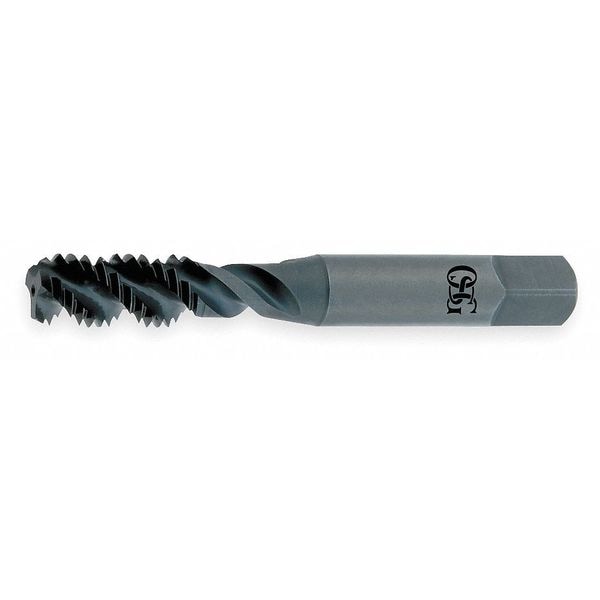

Spiral Flute Tap, 1/2"-13, Bottoming, UNC, 3 Flutes, Bright
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 3-3/8 in |
| Tap Style | Flute |
| Shank Dia. | 0.367 in |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | 1/2" |
| Number of Flutes | 3 |
| Thread Length | 1-21/32 in |
| Number of Pieces | 1 |
| Thread Direction | Right Hand |
| Tap Thread Size | 1/2"-13 |
| Tap Thread Type | UNC |
| Tap Finish | Bright |
| Tap Grouping | Tap |
| List Number | 7072 |
| Pitch Diameter Limit | Not Rated |
| Standards | ANSI |
| Cutting Direction - Machining | Right Hand |
| Series | 297 |
| Measurement System | Fractional Inch |
| Thread Size | 1/2"-13 |
| Helix Angle | 50 deg |
| Coolant Fed | Non-Coolant Through |
| Class of Fit | 2 B |
| 65% Thread Drill Size | 11 mm |
| 75% Thread Drill Size | 0.4219 |
| Thread Standard | UNC |
| Square Size | 0.275 in |
| Secondary Material Application | Aluminum, Brass, Bronze, Copper |
| Shank Type - Machining | Straight |
| Primary Material Application ISO Code | P1, P2 |
| 55% Thread Drill Size | 11.3 mm |
| Material Grade - Machining | 297 |
| Thread Limit | Not Rated |
| Shank Length | 1-23/32 in |
| Primary Material Application | Steel |
| Threads per Inch | 13 |
| Secondary Material Application ISO Code | N |
| Drill Bit Size | 0.4201 in, 0.4251 in, 0.4301 in, 0.4351 in, 0.4400 in |
| Extended Neck | Yes |
| Size | 1/2 |
| Package Quantity | 1 |
