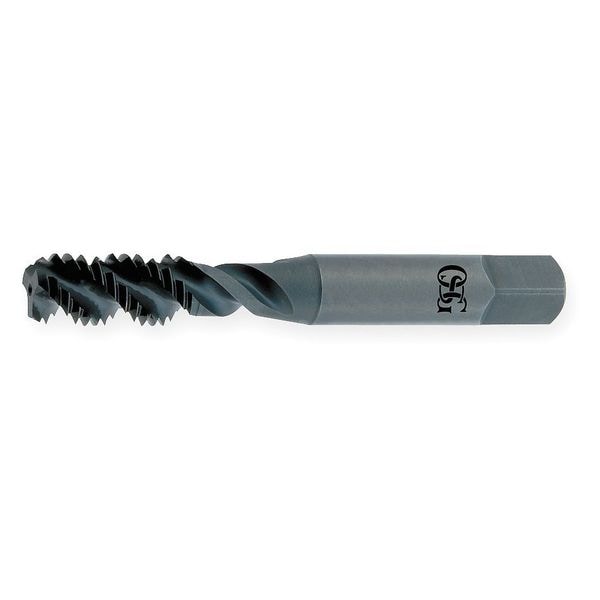

Spiral Flute Tap, 1/2"-20, Plug, UNF, 3 Flutes, Bright
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 3-3/8 in |
| Tap Style | Flute |
| Shank Dia. | 0.367 in |
| Tap Chamfer | Plug |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | 1/2" |
| Number of Flutes | 3 |
| Thread Length | 1-21/32 in |
| Tap Finish | Bright |
| Number of Pieces | 1 |
| Tap Grouping | Tap |
| Tap Thread Size | 1/2"-20 |
| Standards | ANSI |
| List Number | 107 |
| Tap Thread Type | UNF |
| Pitch Diameter Limit | H3 |
| Thread Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Series | 107 |
| Threads per Inch | 20 |
| Shank Length | 1-7/16 in |
| 55% Thread Drill Size | 11.8 mm |
| Thread Size | 1/2"-20 |
| Square Size | 0.274 in |
| Tap Shank Standard | ANSI |
| Material Grade - Machining | 107 |
| 75% Thread Drill Size | 11.40 |
| 65% Thread Drill Size | 11.6 mm |
| Shank Type - Machining | Straight |
| Primary Material Application | All Materials |
| Extended Neck | Yes |
| Drill Bit Size | 0.4480 in, 0.4513 in, 0.4545 in, 0.4578 in, 0.4610 in |
| Thread Limit | H3 |
| Coolant Fed | Non-Coolant Through |
| Helix Angle | 50 deg |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Secondary Material Application ISO Code | K, P, N |
| Thread Standard | UNF |
| Primary Material Application ISO Code | P, M, K, N, H, S, O |
| Measurement System | Fractional Inch |
| Features | Efficient Chip Evacuation, For Blind Hole Applications, Increased Wear Resistance, Spiral Flute Taps for Ferrous and Non-Ferrous Materials |
| Size | 1/2 |
| Package Quantity | 1 |
