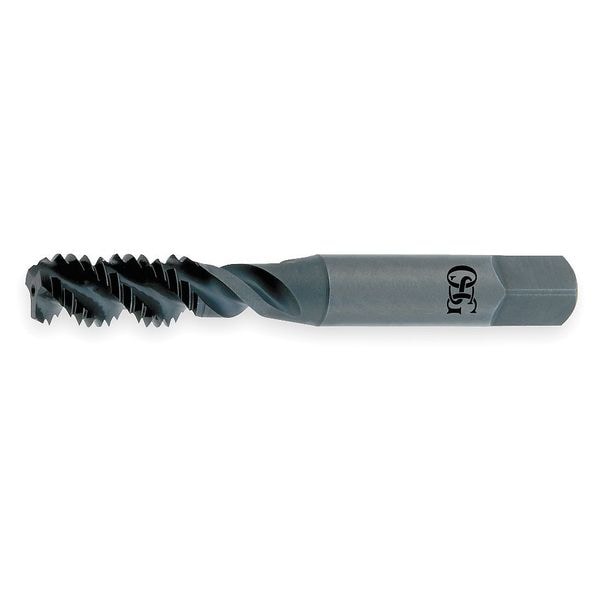

Spiral Flute Tap, 1/4"-20, Bottoming, UNC, 3 Flutes, Bright
| Item | Spiral Flute Tap |
|---|---|
| Shank Dia. | 0.255 in |
| Tap Style | Spiral Flute |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | 1/4" |
| Overall Length | 4 in |
| Thread Direction | Right Hand |
| Number of Flutes | 3 |
| Thread Length | 1 in |
| Pitch Diameter Limit | H3 |
| Tap Finish | Bright |
| Tap Grouping | Tap |
| List Number | 918 |
| Number of Pieces | 1 |
| Tap Thread Size | 1/4"-20 |
| Tap Thread Type | UNC |
| Standards | ANSI |
| Cutting Direction - Machining | Right Hand |
| Series | 918 |
| Material Grade - Machining | 918 |
| Thread Standard | UNC |
| Tap Type | Spiral Flute |
| Extended Shank | Yes |
| Square Size | 0.19 in |
| Tap Shank Standard | ANSI |
| Extended Neck | Yes |
| Tap Length Standard | ANSI |
| Measurement System | Fractional Inch |
| Thread Size | 1/4"-20 |
| Coolant Fed | Non-Coolant Through |
| Primary Material Application ISO Code | P, M, H, N, K, S, O |
| Secondary Material Application | Aluminum, Cast Iron, High Carbon Steel, Low Carbon Steel, Medium Carbon Steel |
| Shank Length | 2-63/64 in |
| 65% Thread Drill Size | #5 |
| 55% Thread Drill Size | #3 |
| 75% Thread Drill Size | #7 |
| Primary Material Application | All Materials |
| Threads per Inch | 20 |
| Secondary Material Application ISO Code | K, P, N |
| Thread Limit | H3 |
| Helix Angle | 50 deg |
| Size | 1/4" |
| Package Quantity | 1 |
