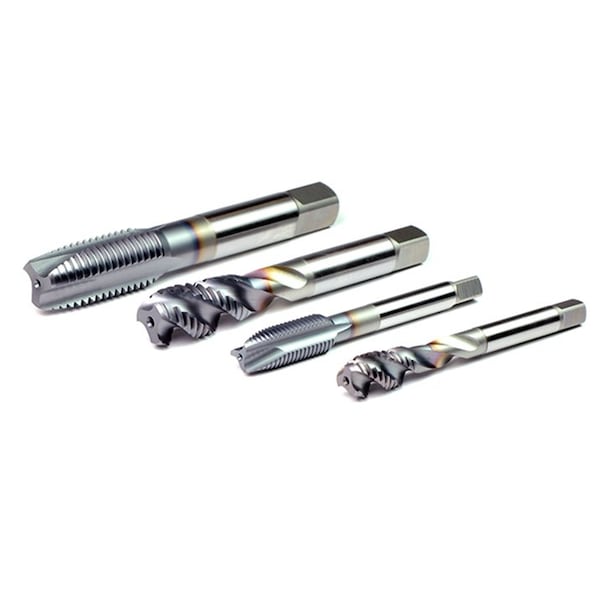

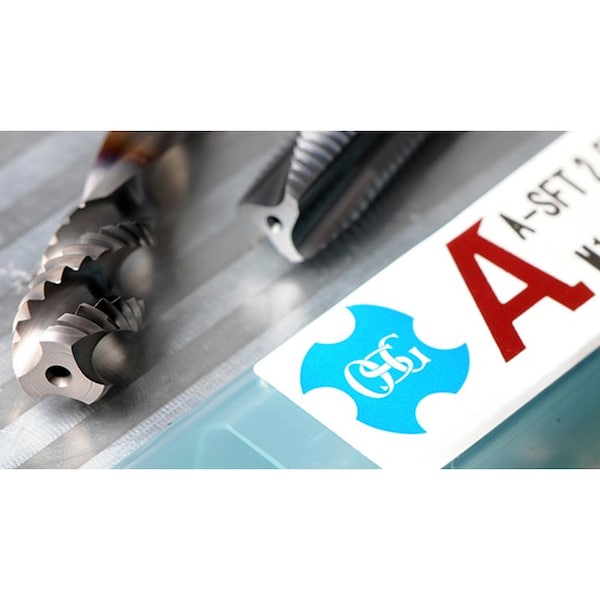

Spiral Flute Tap, 1/4"-20, Modified Bottom, Semi-Bottom, 2 Flutes
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 3-1/8 in |
| Tap Style | Spiral Flute |
| Tap Size | 1/4" |
| Shank Dia. | 1/4 in |
| Tap Chamfer | Modified Bottoming |
| Tap Material | Powdered Metal |
| Number of Flutes | 2 |
| Measurement System | Fractional Inch |
| Secondary Material Application ISO Code | P, K, N |
| Thread Length | 3/8 in |
| Coolant Fed | Non-Coolant Through |
| Shank Type - Machining | Straight |
| Threads per Inch | 20 |
| Tap Length Standard | DIN |
| Shank Length | 1-15/16 in |
| 65% Thread Drill Size | #5 |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Cutting Direction - Machining | Right Hand |
| Square Size | 0.19 in |
| Features | OSG's Proprietary V Coating, Powder Metallurgy HSS, Sharp Cutting Edge, Variable Helix Flute |
| Extended Neck | Yes |
| Material Grade - Machining | 16505 |
| 75% Thread Drill Size | #7 |
| Primary Material Application ISO Code | M, P, H |
| 55% Thread Drill Size | #3 |
| Thread Direction | Right Hand |
| Thread Limit | H3 |
| Series | 16505 |
| Thread Size | 1/4"-20 |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Standards | ANSI, DIN |
| Tap Finish | TiCN |
| Thread Standard | UNC |
| Helix Angle | Variable |
| Drill Bit Size | 0.198 in, 0.2013 in, 0.2045 in, 0.2078 in, 0.211 in |
| Tap Thread Size | 1/4"-20 |
| Tap Shank Standard | ANSI, DIN |
| Size | 1/4 |
| Package Quantity | 1 |
