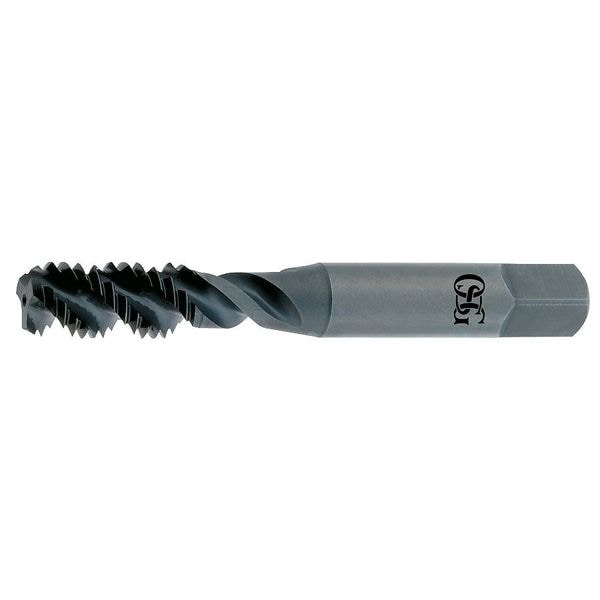

Spiral Flute Tap, 3/8"-16, Plug, UNC, 3 Flutes, TiCN
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 2-15/16 in |
| Tap Style | Flute |
| Shank Dia. | 0.381 in |
| Tap Chamfer | Plug |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | 3/8" |
| Number of Flutes | 3 |
| Thread Length | 1-1/4 in |
| Tap Thread Type | UNC |
| Thread Direction | Right Hand |
| Tap Thread Size | 3/8"-16 |
| Standards | ANSI |
| Tap Grouping | Tap |
| Tap Finish | TiCN |
| Cutting Direction - Machining | Right Hand |
| Series | 107 |
| Thread Standard | UNC |
| Primary Material Application ISO Code | P, M, K, N, H, S, O |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| 65% Thread Drill Size | P |
| Thread Limit | H5 |
| Coolant Fed | Non-Coolant Through |
| Tap Shank Standard | ANSI |
| Secondary Material Application ISO Code | K, P, N |
| Shank Type - Machining | Straight |
| Drill Bit Size | 0.3101 in, 0.3141 in, 0.3182 in, 0.3222 in, 0.3263 in |
| 75% Thread Drill Size | 0.3125 |
| Helix Angle | 50 deg |
| Measurement System | Fractional Inch |
| Square Size | 0.285 in |
| Primary Material Application | All Materials |
| Thread Size | 3/8"-16 |
| Extended Neck | Yes |
| Material Grade - Machining | 107 |
| 55% Thread Drill Size | 8.4 mm |
| Shank Length | 1-21/32 in |
| Threads per Inch | 16 |
| Size | 3/8 |
| Pitch Diameter Limit | H5 |
| Number of Pieces | 1 |
| List Number | 107 |
| Package Quantity | 1 |
