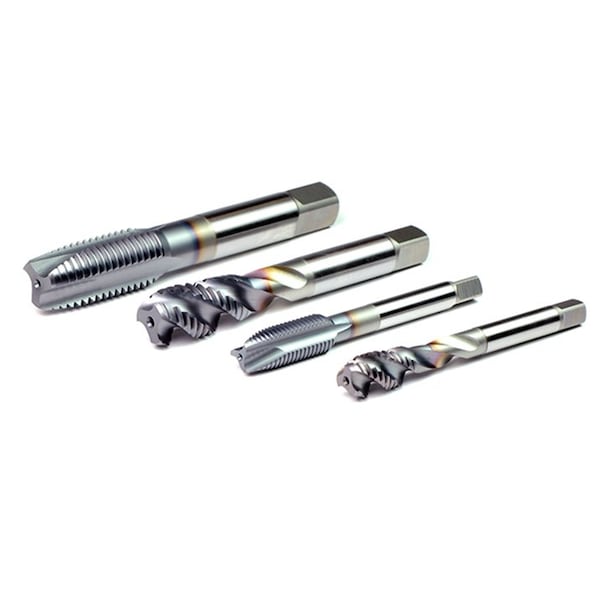

Spiral Flute Tap, 5/16"-18, Modified Bottoming, UNC, 3 Flutes, TiCN
| Item | Spiral Flute Tap |
|---|---|
| Tap Thread Size | 5/16"-18 |
| Tap Chamfer | Modified Bottoming |
| Tap Thread Type | UNC |
| Number of Flutes | 3 |
| Tap Finish | TICN |
| Thread Direction | Right Hand |
| Shank Dia. | 0.318 in |
| Overall Length | 90 mm |
| Tap Dimension Type | Inch |
| Tap Grouping | Tap |
| Standards | DIN, ANSI |
| Tap Size | 5/16" |
| Tap Style | Spiral Flute |
| Tap Material | Powdered Metal |
| Thread Length | 1-3/8 in |
| Series | 16505 |
| Cutting Direction - Machining | Right Hand |
| Thread Size | 5/16"-18 |
| Square Size | 0.238 in |
| Coolant Fed | Non-Coolant Through |
| Measurement System | Fractional Inch |
| Primary Material Application ISO Code | P, H, M |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Extended Neck | Yes |
| Material Grade - Machining | 16505 |
| Threads per Inch | 18 |
| 75% Thread Drill Size | F |
| Shank Type - Machining | Straight |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Tap Shank Standard | DIN |
| 65% Thread Drill Size | 17/64 in |
| Drill Bit Size | 0.2548 in, 0.2584 in, 0.262 in, 0.2656 in, 0.2692 in |
| Thread Limit | H5 |
| Features | OSG's Proprietary V Coating, Powder Metallurgy HSS, Sharp Cutting Edge, Variable Helix Flute |
| 55% Thread Drill Size | I |
| Tap Length Standard | DIN |
| Helix Angle | Variable |
| Shank Length | 2-5/32 in |
| Secondary Material Application ISO Code | N, K, P |
| Thread Standard | UNC |
| Size | 5/16 |
| List Number | 16505 |
| Pitch Diameter Limit | H5 |
| Number of Pieces | 1 |
| Package Quantity | 1 |
