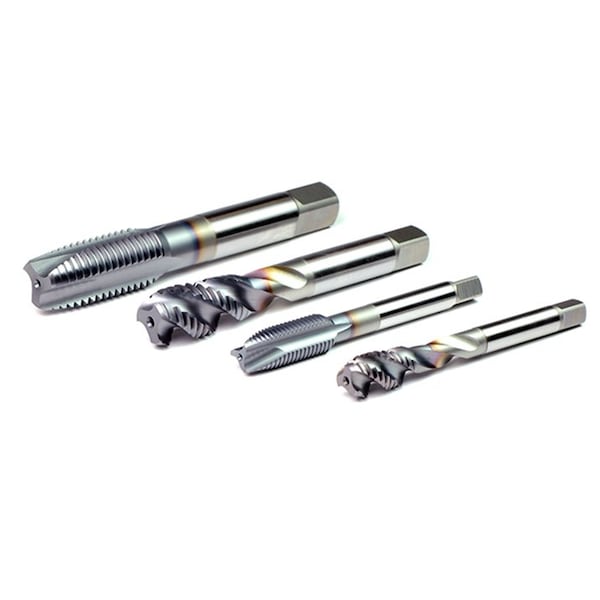

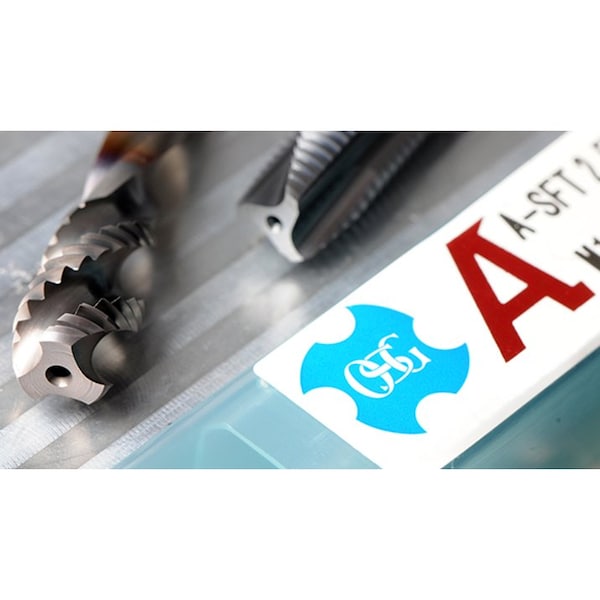

Spiral Flute Tap, #6-32, Modified Bottoming, UNC, 2 Flutes, TiCN
| Item | Spiral Flute Tap |
|---|---|
| Tap Thread Size | #6-32 |
| Tap Chamfer | Modified Bottoming |
| Tap Thread Type | UNC |
| Number of Flutes | 2 |
| Tap Finish | TICN |
| Thread Length | 25/32 in |
| Overall Length | 2-13/64 in |
| Tap Size | #6 |
| Standards | DIN, ANSI |
| Tap Style | Spiral Flute |
| Tap Grouping | Tap |
| Thread Direction | Right Hand |
| Tap Material | Powdered Metal |
| Tap Dimension Type | Inch |
| Shank Dia. | 0.141 in |
| Cutting Direction - Machining | Right Hand |
| Series | 16505 |
| Measurement System | Pipe |
| Tap Shank Standard | DIN |
| Shank Length | 1-13/32 in |
| Extended Neck | Yes |
| Coolant Fed | Non-Coolant Through |
| Square Size | 0.109 in |
| Drill Bit Size | 0.1055 in, 0.1076 in, 0.1096 in, 0.1116 in, 0.1136 in |
| Thread Size | #6-32 |
| Secondary Material Application ISO Code | N, K, P |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| 75% Thread Drill Size | #36 |
| Helix Angle | Variable |
| Tap Length Standard | DIN |
| Threads per Inch | 32 |
| Thread Limit | H3 |
| Thread Standard | UNC |
| Material Grade - Machining | VC-10, 16505 |
| 55% Thread Drill Size | #32 |
| Shank Type - Machining | Straight |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| 65% Thread Drill Size | #34 |
| Features | Sharp Cutting Edge |
| Primary Material Application ISO Code | P, H, M |
| Size | #6 |
| List Number | 16505 |
| Pitch Diameter Limit | H3 |
| Number of Pieces | 1 |
| Package Quantity | 1 |
