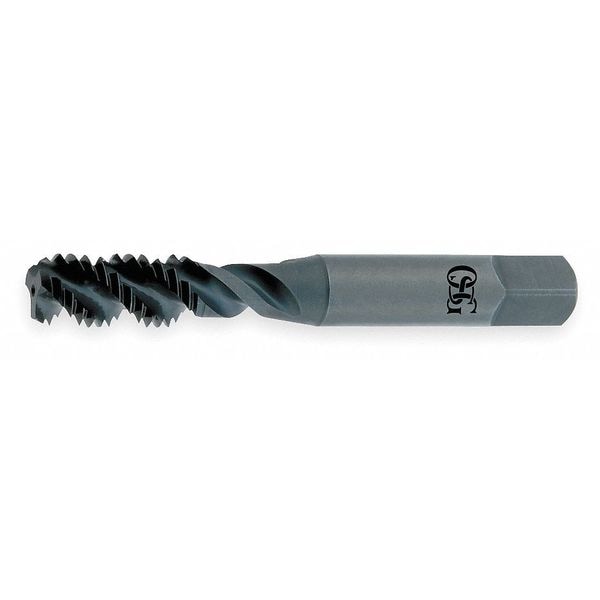

Spiral Flute Tap, 7/16"-20, Bottoming, UNF, 3 Flutes, TiN
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 3-5/32 in |
| Tap Style | Flute |
| Shank Dia. | 0.323 in |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | 7/16" |
| Number of Flutes | 3 |
| Thread Length | 1-7/16 in |
| Thread Direction | Right Hand |
| List Number | 7072 |
| Tap Thread Size | 7/16"-20 |
| Standards | ANSI |
| Tap Finish | TiN |
| Tap Thread Type | UNF |
| Number of Pieces | 1 |
| Pitch Diameter Limit | Not Rated |
| Tap Grouping | Tap |
| Cutting Direction - Machining | Right Hand |
| Series | 297 |
| Tap Shank Standard | ANSI |
| Primary Material Application | Steel |
| Shank Length | 1-23/32 in |
| Thread Size | 7/16"-20 |
| 65% Thread Drill Size | 10 mm |
| Threads per Inch | 20 |
| 75% Thread Drill Size | 9.95 |
| Secondary Material Application | Aluminum, Brass, Bronze, Copper |
| Measurement System | Fractional Inch |
| Material Grade - Machining | 298 |
| Shank Type - Machining | Straight |
| Thread Limit | Not Rated |
| Class of Fit | 2 B |
| Square Size | 0.242 in |
| Coolant Fed | Non-Coolant Through |
| Thread Standard | UNF |
| Drill Bit Size | 0.3855 in, 0.3888 in, 0.3920 in, 0.3953 in, 0.3985 in |
| Extended Neck | Yes |
| Helix Angle | 50 deg |
| 55% Thread Drill Size | 10.2 mm |
| Primary Material Application ISO Code | P1, P2 |
| Secondary Material Application ISO Code | N |
| Size | 7/16 |
| Package Quantity | 1 |
