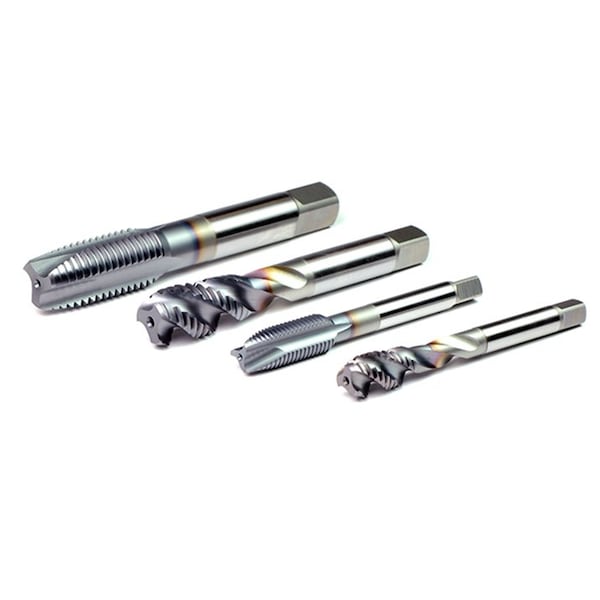

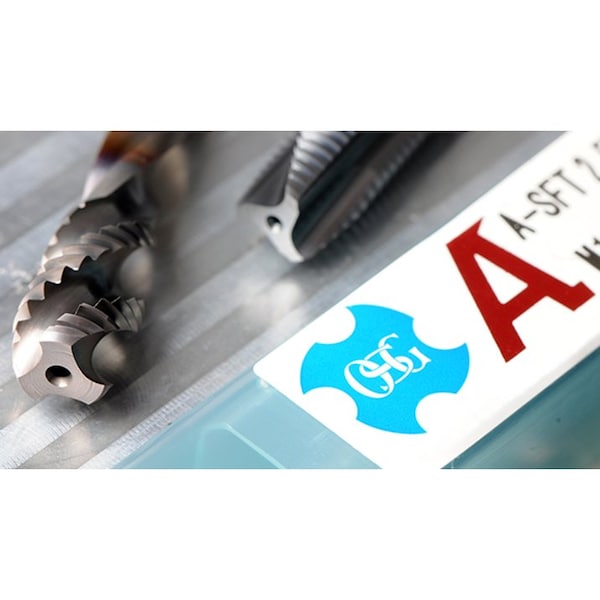

Spiral Flute Tap, #8-32, Modified Bottom, Semi-Bottom, 2 Flutes
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 2-15/32 in |
| Tap Style | Spiral Flute |
| Tap Size | #8 |
| Shank Dia. | 5/32 in |
| Tap Chamfer | Modified Bottoming |
| Tap Material | Powdered Metal |
| Number of Flutes | 2 |
| Measurement System | Pipe |
| Square Size | 0.131 in |
| Series | 16505 |
| Tap Finish | TiCN |
| Material Grade - Machining | 16505, VC-10 |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Primary Material Application ISO Code | M, P, H |
| 65% Thread Drill Size | 3.5 mm |
| Cutting Direction - Machining | Right Hand |
| Extended Neck | Yes |
| Thread Length | 1/4 in |
| 75% Thread Drill Size | 3.40 |
| Thread Direction | Right Hand |
| Secondary Material Application ISO Code | P, K, N |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Standards | ANSI, DIN |
| Tap Length Standard | DIN |
| Thread Standard | UNC |
| Shank Length | 1-5/8 in |
| Tap Thread Size | #8-32 |
| Coolant Fed | Non-Coolant Through |
| Drill Bit Size | 0.1315 in, 0.1336 in, 0.1356 in, 0.1376 in, 0.1396 in |
| Thread Limit | H3 |
| Shank Type - Machining | Straight |
| Tap Shank Standard | DIN |
| Threads per Inch | 32 |
| 55% Thread Drill Size | 3.6 mm |
| Helix Angle | Variable |
| Thread Size | #8-32 |
| Size | #8 |
| Package Quantity | 1 |
