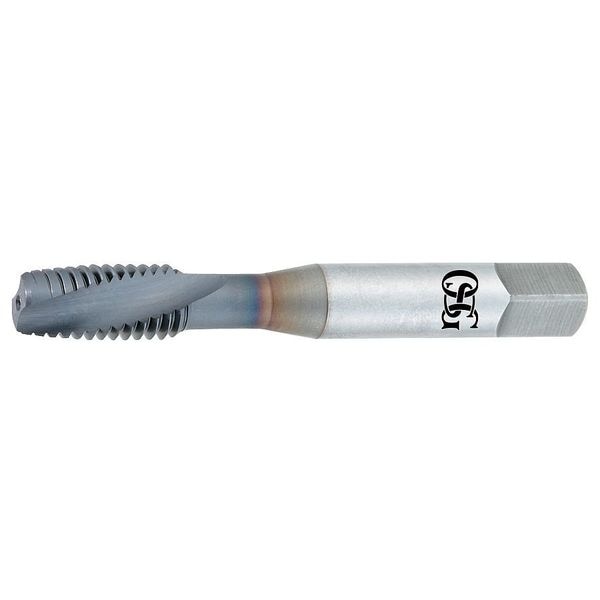

Spiral Flute Tap, #8-32, Plug, 3 Flutes, UNC
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 2-1/8 in |
| Tap Style | Spiral Flute |
| Tap Size | #8 |
| Shank Dia. | 0.168 in |
| Tap Dimension Type | Inch |
| Tap Chamfer | Plug |
| Tap Material | High Speed Steel |
| Number of Flutes | 3 |
| Measurement System | Pipe |
| Number of Pieces | 1 |
| Pitch Diameter Limit | Not Rated |
| Thread Length | 3/4 in |
| Tap Thread Type | UNC |
| Tap Finish | TiCN |
| Tap Thread Size | #8-32 |
| Tap Grouping | Tap |
| List Number | 13059 |
| Thread Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Series | 13059 |
| 55% Thread Drill Size | 3.6 mm |
| Thread Size | #8-32 |
| Features | Complete Offering, Eliminates Friction To Enable High Speed Tapping, For Through Hole Applications, Increased Hardness, Increased Wear Resistance, Lubricity and Wear Resistance |
| Shank Type - Machining | Straight |
| Thread Limit | Not Rated |
| Primary Material Application | Aluminum, Brass, Bronze, Copper |
| Shank Length | 1-7/16 in |
| Class of Fit | 2B |
| Extended Neck | Yes |
| Coolant Fed | Non-Coolant Through |
| Square Size | 0.131 in |
| 65% Thread Drill Size | 3.5 mm |
| Thread Standard | UNC |
| 75% Thread Drill Size | 3.40 |
| Material Grade - Machining | 13059 |
| Drill Bit Size | 0.1315 in, 0.1336 in, 0.1356 in, 0.1376 in, 0.1396 in |
| Threads per Inch | 32 |
| Primary Material Application ISO Code | N |
| Helix Angle | 20 deg |
| Size | #8 |
| Package Quantity | 1 |
