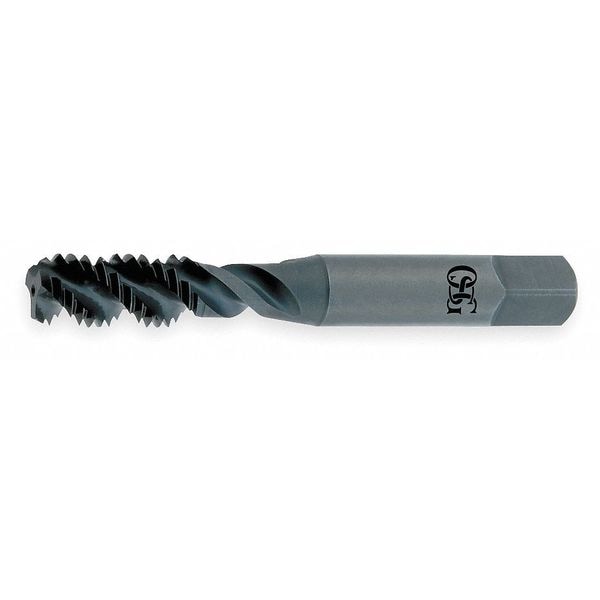

Spiral Flute Tap, Bottoming, 2
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 1-7/8 in |
| Tap Style | Flute |
| Shank Dia. | 0.141 in |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | #4 |
| Number of Flutes | 2 |
| Thread Length | 9/16 in |
| Tap Grouping | Tap |
| Thread Direction | Right Hand |
| Standards | ANSI |
| Tap Thread Type | UNC |
| Tap Thread Size | #4-40 |
| Tap Finish | TiN |
| Cutting Direction - Machining | Right Hand |
| Series | 297 |
| Primary Material Application | Steel |
| Square Size | 0.11 in |
| Measurement System | Pipe |
| Secondary Material Application | Aluminum, Brass, Bronze, Copper |
| Thread Limit | Not Rated |
| Drill Bit Size | 0.0860 in, 0.0876 in, 0.0893 in, 0.0909 in, 0.0925 in |
| Extended Neck | Yes |
| 65% Thread Drill Size | 2.3 mm |
| Class of Fit | 2 B |
| Secondary Material Application ISO Code | N |
| Primary Material Application ISO Code | P1, P2 |
| 75% Thread Drill Size | 2.20 |
| Coolant Fed | Non-Coolant Through |
| Helix Angle | 50 deg |
| Shank Length | 1-5/16 in |
| Shank Type - Machining | Straight |
| Material Grade - Machining | 297 |
| 55% Thread Drill Size | 3/32 in |
| Thread Size | #4-40 |
| Thread Standard | UNC |
| Threads per Inch | 40 |
| Size | #4 |
| Number of Pieces | 1 |
| List Number | 7072 |
| Pitch Diameter Limit | Not Rated |
| Package Quantity | 1 |
