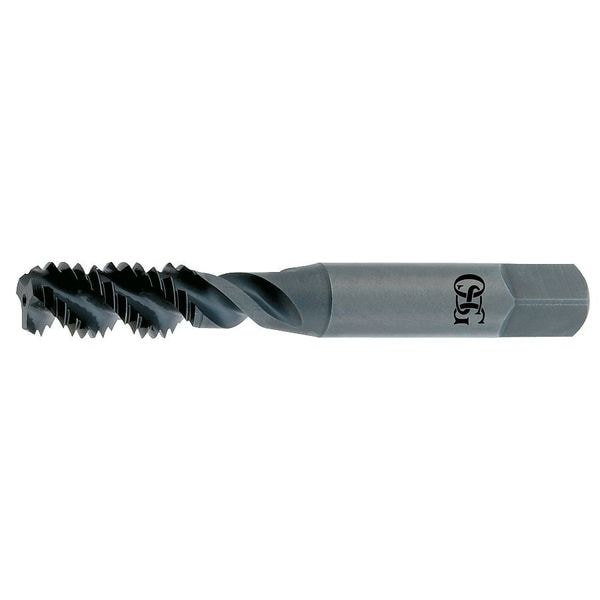

Spiral Flute Tap, Bottoming 2 Flutes
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 2 in |
| Tap Style | Spiral Flute |
| Tap Size | #6 |
| Shank Dia. | 0.141 in |
| Tap Dimension Type | Inch |
| Tap Chamfer | Bottoming |
| Tap Material | High Speed Steel |
| Number of Flutes | 2 |
| Measurement System | Pipe |
| Tap Thread Size | #6-32 |
| Tap Thread Type | UNC |
| Thread Length | 11/16 in |
| Tap Finish | TiN |
| Thread Direction | Right Hand |
| Standards | ANSI |
| Tap Grouping | Tap |
| Cutting Direction - Machining | Right Hand |
| Series | 107 |
| Secondary Material Application ISO Code | P, K, N |
| 65% Thread Drill Size | #34 |
| 55% Thread Drill Size | #32 |
| Primary Material Application ISO Code | M, P, N, H, K, S, O |
| Drill Bit Size | 0.1055 in, 0.1076 in, 0.1096 in, 0.1116 in, 0.1136 in |
| Helix Angle | 50 deg |
| Coolant Fed | Non-Coolant Through |
| Primary Material Application | All Materials |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Features | Increased wear resistance |
| Thread Size | #6-32 |
| 75% Thread Drill Size | #36 |
| Square Size | 0.109 in |
| Thread Standard | UNC |
| Shank Length | 1-5/16 in |
| Threads per Inch | 32 |
| Material Grade - Machining | Vanadium High Speed Steel |
| Thread Limit | H2 |
| Shank Type - Machining | Straight |
| Extended Neck | Yes |
| Tap Shank Standard | ANSI |
| Size | #6 |
| Pitch Diameter Limit | H2 |
| Number of Pieces | 1 |
| List Number | 107 |
| Package Quantity | 1 |
