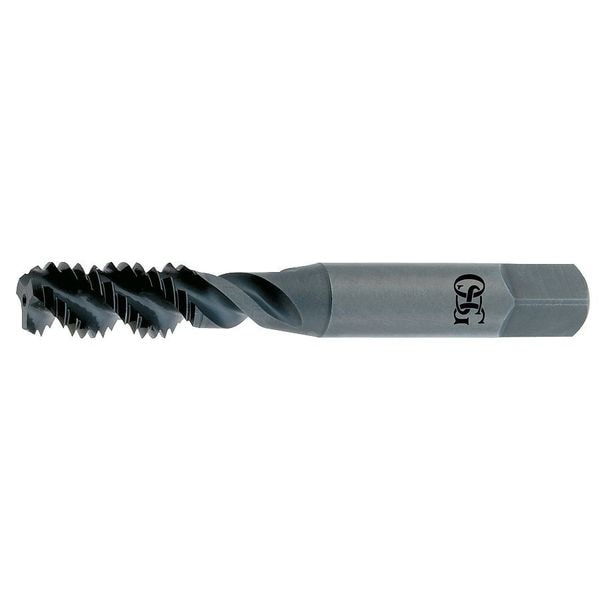

Spiral Flute Tap Bottoming, 3 Flutes
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 2-1/2 in |
| Tap Style | Flute |
| Shank Dia. | 0.255 in |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | 1/4" |
| Number of Flutes | 3 |
| Thread Length | 1 in |
| Thread Direction | Right Hand |
| Tap Finish | TiN |
| Tap Thread Type | UNF |
| Tap Thread Size | 1/4"-28 |
| Standards | ANSI |
| Tap Grouping | Tap |
| Cutting Direction - Machining | Right Hand |
| Series | 107 |
| Shank Type - Machining | Straight |
| Square Size | 0.19 in |
| 65% Thread Drill Size | 7/32 in |
| Features | Bright, Efficient Chip Evacuation, Increased Wear Resistance, Spiral Flute, Steam Oxide Surface Treatment |
| Tap Shank Standard | ANSI |
| Thread Standard | UNF |
| Measurement System | Fractional Inch |
| Coolant Fed | Non-Coolant Through |
| Extended Neck | Yes |
| 55% Thread Drill Size | 5.7 mm |
| 75% Thread Drill Size | 5.45 |
| Thread Size | 1/4"-28 |
| Material Grade - Machining | 107 |
| Secondary Material Application ISO Code | K, P, N |
| Helix Angle | 50 deg |
| Primary Material Application ISO Code | P, M, K, N, H, S, O |
| Shank Length | 1-15/32 in |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Primary Material Application | All Materials |
| Thread Limit | H3 |
| Threads per Inch | 28 |
| Drill Bit Size | 0.2129 in, 0.2152 in, 0.2175 in, 0.2198 in, 0.2222 in |
| Size | 1/4 |
| List Number | 107 |
| Number of Pieces | 1 |
| Pitch Diameter Limit | H3 |
| Package Quantity | 1 |
