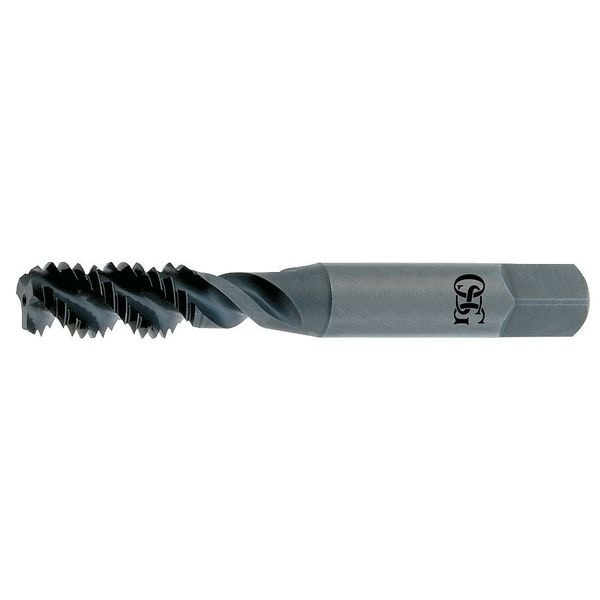

Spiral Flute Tap, Bottoming 3 Flutes
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 64 mm |
| Tap Style | Flute |
| Shank Dia. | 6.5 mm |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Metric |
| Tap Material | High Speed Steel |
| Tap Size | M6 |
| Number of Flutes | 3 |
| Thread Length | 25 mm |
| Tap Finish | Bright |
| Thread Direction | Right Hand |
| Tap Thread Size | M6-1.00 |
| Tap Grouping | Tap |
| Tap Thread Type | Metric Coarse |
| Cutting Direction - Machining | Right Hand |
| Series | 143 |
| Shank Length | 37 mm |
| Material Grade - Machining | 143 |
| Thread Standard | Metric Coarse |
| 65% Thread Drill Size | 13/64 in |
| Coolant Fed | Non-Coolant Through |
| Thread Pitch | 1 mm |
| 55% Thread Drill Size | 5.25 mm |
| Helix Angle | 50 deg |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Thread Size | M6x1 |
| Thread Limit | D5 |
| Shank Type - Machining | Straight |
| Drill Bit Size | 5.22mm, 4.96mm, 5.03mm, 5.09mm, 5.16mm |
| Square Size | 4.85 mm |
| Secondary Material Application ISO Code | K, P, N |
| Measurement System | Metric |
| Extended Neck | Yes |
| 75% Thread Drill Size | 5.00 |
| Size | M6 |
| Number of Pieces | 1 |
| Pitch Diameter Limit | D5 |
| List Number | 143 |
| Package Quantity | 1 |
