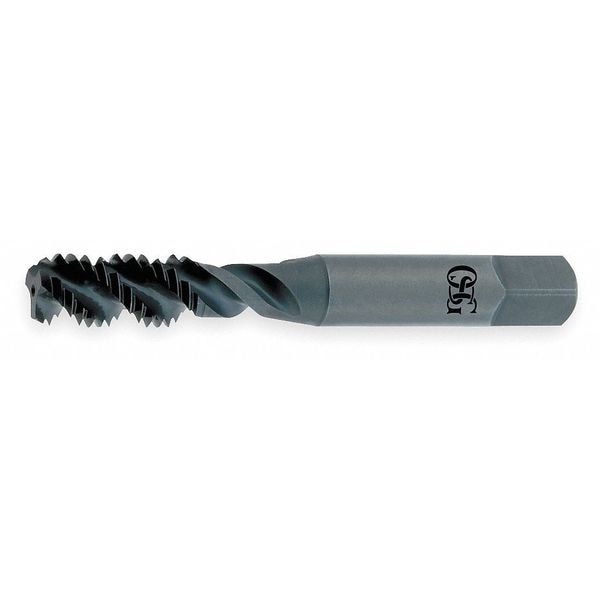

Spiral Flute Tap, Bottoming 3 Flutes
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 2-15/16 in |
| Tap Style | Flute |
| Shank Dia. | 0.381 in |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | 3/8" |
| Number of Flutes | 3 |
| Thread Length | 1-1/4 in |
| Tap Thread Type | UNC |
| Tap Grouping | Tap |
| Standards | ANSI |
| Tap Finish | TiN |
| Thread Direction | Right Hand |
| Tap Thread Size | 3/8"-16 |
| Cutting Direction - Machining | Right Hand |
| Series | 297 |
| Drill Bit Size | 0.3101 in, 0.3141 in, 0.3182 in, 0.3222 in, 0.3263 in |
| Helix Angle | 50 deg |
| Class of Fit | 2 B |
| 55% Thread Drill Size | 8.4 mm |
| Thread Size | 3/8"-16 |
| 65% Thread Drill Size | P |
| Threads per Inch | 16 |
| Extended Neck | Yes |
| Coolant Fed | Non-Coolant Through |
| 75% Thread Drill Size | 0.3125 |
| Shank Length | 1-11/16 in |
| Features | HSS, Slow spiral, Spiral Flute, Steam Oxide Surface Treatment, TiCN coating |
| Primary Material Application ISO Code | P1, P2 |
| Secondary Material Application ISO Code | N |
| Square Size | 0.286 in |
| Shank Type - Machining | Straight |
| Material Grade - Machining | 297 |
| Tap Shank Standard | ANSI |
| Primary Material Application | Steel |
| Secondary Material Application | Aluminum, Brass, Bronze, Copper |
| Thread Standard | UNC |
| Measurement System | Fractional Inch |
| Thread Limit | Not Rated |
| Size | 3/8 |
| Number of Pieces | 1 |
| List Number | 7072 |
| Pitch Diameter Limit | Not Rated |
| Package Quantity | 1 |
