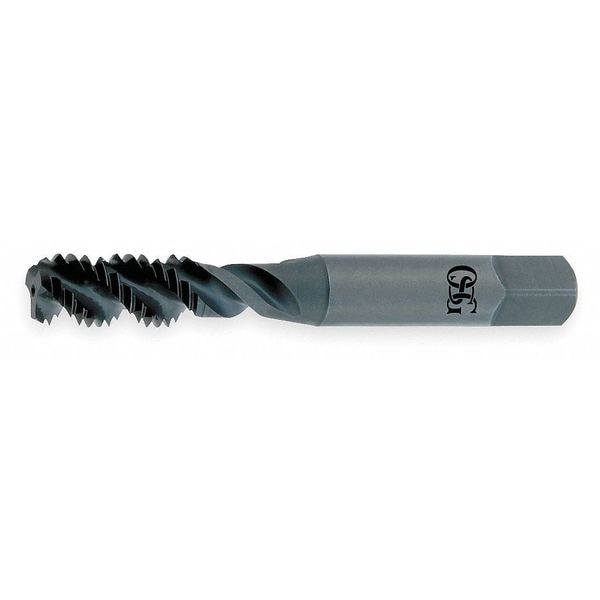

Spiral Flute Tap, Bottoming 3 Flutes
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 69 mm |
| Tap Style | Flute |
| Shank Dia. | 8.1 mm |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Metric |
| Tap Material | High Speed Steel |
| Tap Size | M8 |
| Number of Flutes | 3 |
| Thread Length | 29 mm |
| Tap Grouping | Tap |
| Standards | ANSI |
| Tap Thread Type | Metric Coarse |
| Tap Thread Size | M8-1.25 |
| Tap Finish | Bright |
| Thread Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Series | 298 |
| Square Size | 0.238 in |
| 55% Thread Drill Size | 7.1 mm |
| Secondary Material Application | Aluminum, Brass, Bronze, Copper |
| 75% Thread Drill Size | H |
| Shank Length | 1-19/32 in |
| Thread Pitch | 1.25 mm |
| Thread Size | M8x1.25 |
| Measurement System | Metric |
| 65% Thread Drill Size | I |
| Coolant Fed | Non-Coolant Through |
| Extended Neck | Yes |
| Helix Angle | 50 deg |
| Primary Material Application ISO Code | P |
| Material Grade - Machining | 298 |
| Shank Type - Machining | Straight |
| Drill Bit Size | 7.03mm, 6.70mm, 6.78mm, 6.86mm, 6.94mm |
| Thread Limit | D9 |
| Thread Standard | Metric Coarse |
| Secondary Material Application ISO Code | N |
| Primary Material Application | Steel |
| Size | M8 |
| Pitch Diameter Limit | D9 |
| Closeout | Yes |
| List Number | 298 |
| Number of Pieces | 1 |
| Package Quantity | 1 |
