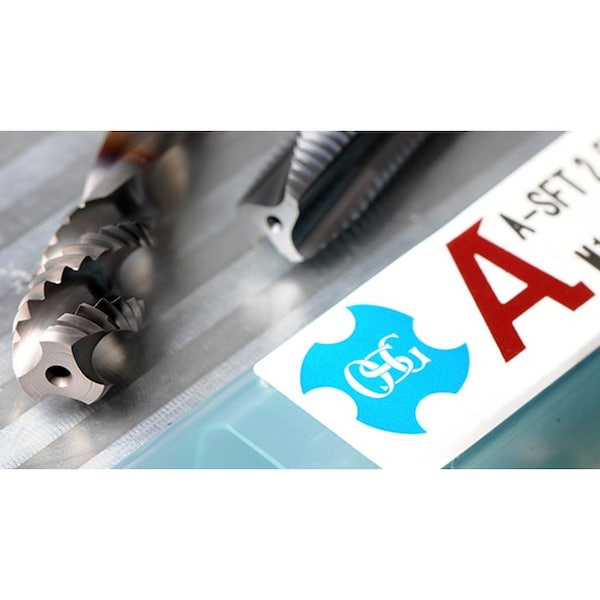

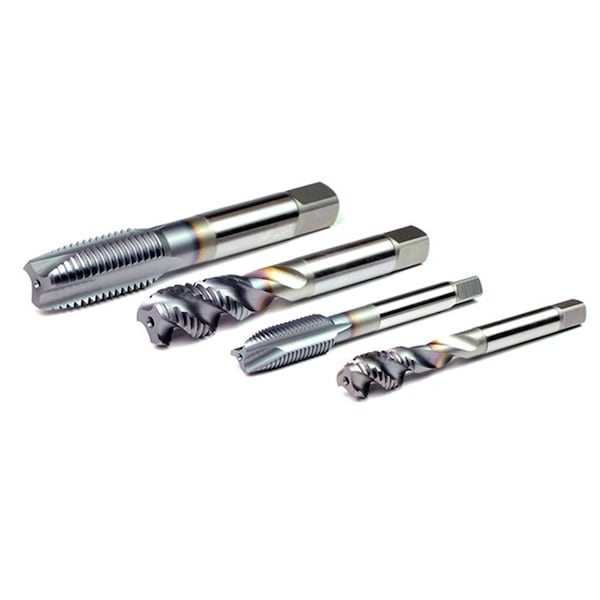

Spiral Flute Tap, M16-2.00, Modified Bottoming, Metric Coarse, 3 Flutes, TiCN
| Item | Spiral Flute Tap |
|---|---|
| Tap Thread Size | M16-2.00 |
| Tap Chamfer | Modified Bottoming |
| Tap Thread Type | Metric Coarse |
| Number of Flutes | 3 |
| Tap Finish | TICN |
| Thread Length | 54 mm |
| Tap Style | Spiral Flute |
| Tap Dimension Type | Metric |
| Thread Direction | Right Hand |
| Overall Length | 110 mm |
| Tap Size | M16 |
| Tap Material | Powdered Metal |
| Standards | DIN, ANSI |
| Tap Grouping | Tap |
| Shank Dia. | 12 mm |
| Cutting Direction - Machining | Right Hand |
| Series | 16500 |
| Thread Size | M16x2 |
| Measurement System | Metric |
| 65% Thread Drill Size | 9/16 in |
| 55% Thread Drill Size | 14.5 mm |
| Shank Length | 56 mm |
| Coolant Fed | Non-Coolant Through |
| Extended Neck | Yes |
| Thread Pitch | 2 mm |
| Helix Angle | Variable |
| Thread Limit | D7 |
| Tap Shank Standard | DIN |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Features | Accelerates chip evacuation, High Wear Resistance, Long tool life, Stabilizes Chip Shape |
| Secondary Material Application ISO Code | N, K, P |
| Shank Type - Machining | Straight |
| Tap Length Standard | DIN |
| 75% Thread Drill Size | 14.00 |
| Primary Material Application ISO Code | P, H, M |
| Thread Standard | Metric Coarse |
| Material Grade - Machining | 16500 |
| Square Size | 9.14 mm |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Drill Bit Size | 13.92 mm, 14.05 mm, 14.18 mm, 14.31 mm, 14.44 mm |
| Size | M16 |
| List Number | 16500 |
| Number of Pieces | 1 |
| Pitch Diameter Limit | D7 |
| Package Quantity | 1 |
