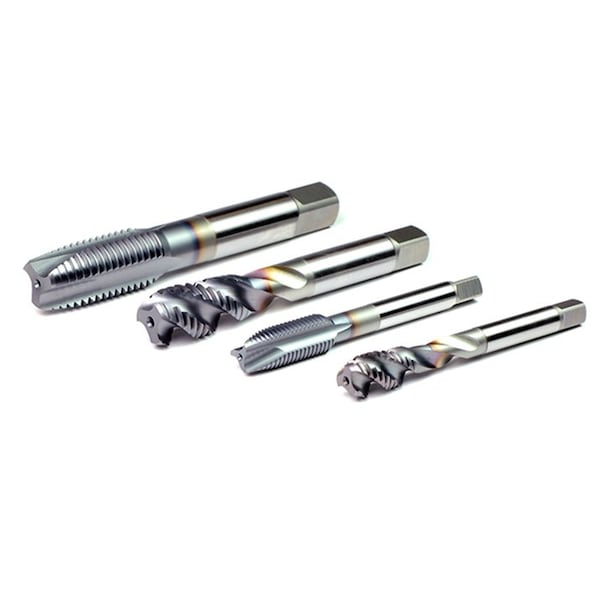

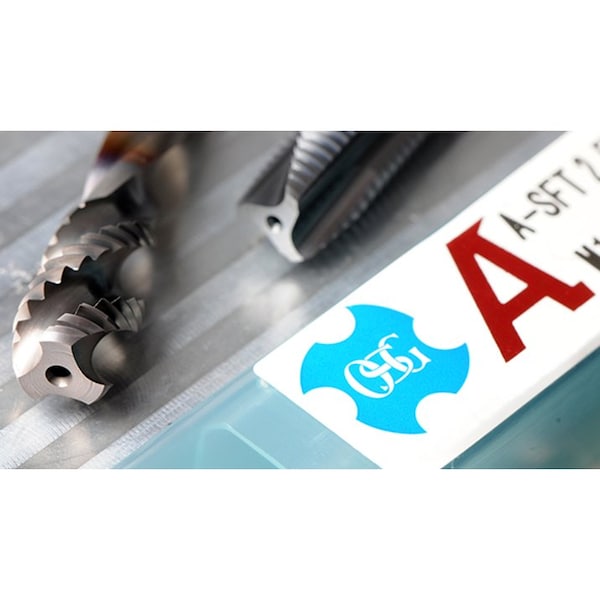

Spiral Flute Tap, M3-0.50, Modified Bottoming, Metric Coarse, 3 Flutes, TiCN
| Item | Spiral Flute Tap |
|---|---|
| Tap Thread Size | M3-0.50 |
| Tap Chamfer | Modified Bottoming |
| Tap Thread Type | Metric Coarse |
| Number of Flutes | 3 |
| Tap Finish | TICN |
| Overall Length | 55 mm |
| Shank Dia. | 3.58 mm |
| Tap Style | Spiral Flute |
| Tap Dimension Type | Metric |
| Thread Direction | Right Hand |
| Tap Size | M3 |
| Standards | DIN, ANSI |
| Thread Length | 18 mm |
| Tap Grouping | Tap |
| Tap Material | Powdered Metal |
| Series | 16500 |
| Cutting Direction - Machining | Right Hand |
| Coolant Fed | Non-Coolant Through |
| Thread Pitch | 0.5 mm |
| Thread Limit | D3 |
| Extended Neck | Yes |
| Thread Size | M3x0.5 |
| 55% Thread Drill Size | #37 |
| Shank Type - Machining | Straight |
| Material Grade - Machining | VC-10 |
| 75% Thread Drill Size | 2.50 |
| Primary Material Application ISO Code | P, H, M |
| Thread Standard | Metric Coarse |
| Drill Bit Size | 2.48 mm, 2.51 mm, 2.55 mm, 2.58 mm, 2.61 mm |
| Tap Shank Standard | DIN |
| 65% Thread Drill Size | #38 |
| Measurement System | Metric |
| Square Size | 2.79 mm |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Secondary Material Application ISO Code | N, K, P |
| Tap Length Standard | DIN |
| Features | Sharp Cutting Edge, Variable Helix Flute |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Shank Length | 38 mm |
| Helix Angle | Variable |
| Size | M3 |
| Pitch Diameter Limit | D3 |
| List Number | 16500 |
| Number of Pieces | 1 |
| Package Quantity | 1 |
