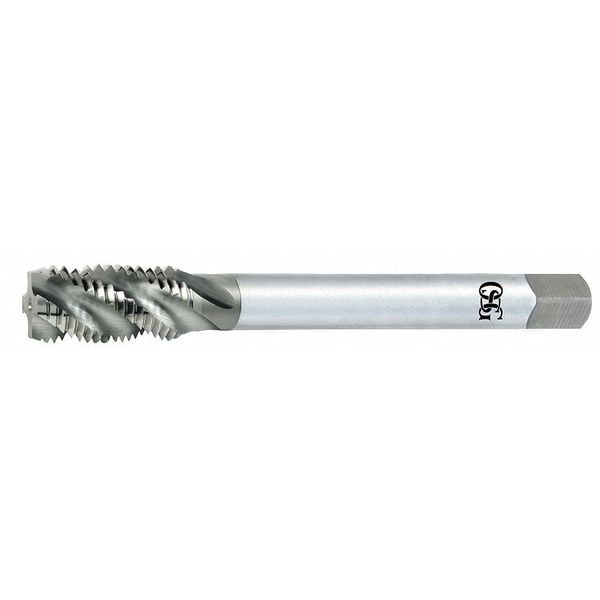

Spiral Flute Tap, Modified Bottoming, 3
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 46 mm |
| Tap Style | Flute |
| Shank Dia. | 4 mm |
| Tap Chamfer | Modified Bottoming |
| Tap Dimension Type | Metric |
| Tap Material | High Speed Steel |
| Tap Size | M3 |
| Number of Flutes | 3 |
| Thread Length | 18 mm |
| Tap Thread Size | M3-0.50 |
| Thread Direction | Right Hand |
| Tap Thread Type | Metric Coarse |
| Tap Grouping | Tap |
| Tap Finish | Bright |
| Cutting Direction - Machining | Right Hand |
| Series | 123 |
| 55% Thread Drill Size | #37 |
| Tap Shank Standard | JIS |
| Thread Pitch | 0.5 mm |
| Tap Length Standard | JIS |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Extended Neck | Yes |
| 75% Thread Drill Size | 2.50 |
| Shank Type - Machining | Straight |
| Thread Size | M3x0.5 |
| Shank Length | 28 mm |
| Coolant Fed | Non-Coolant Through |
| Measurement System | Metric |
| Thread Standard | Metric Coarse |
| Square Size | 3.2 mm |
| Secondary Material Application ISO Code | K, P, N |
| 65% Thread Drill Size | #38 |
| Helix Angle | 50 deg |
| Drill Bit Size | 2.51mm, 2.48mm, 2.55mm, 2.58mm, 2.61mm |
| Class of Fit | JIS 2 |
| Size | M3 |
| Number of Pieces | 1 |
| List Number | 123 |
| Pitch Diameter Limit | Not Rated |
| Package Quantity | 1 |
