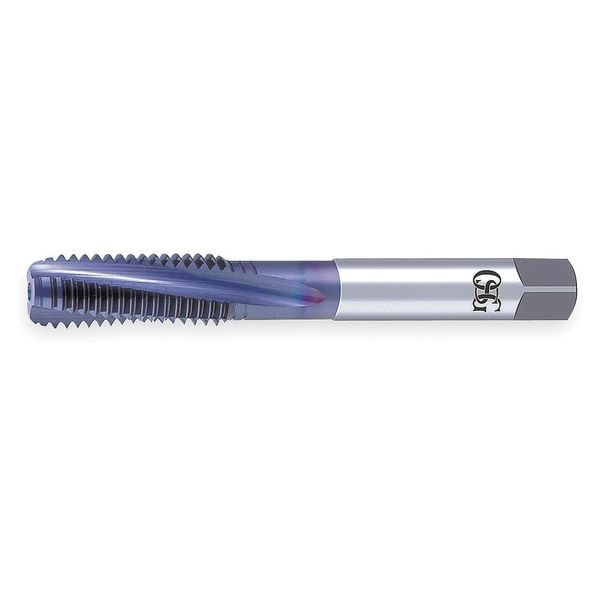

Spiral Flute Tap Modified Bottoming, 3 Flutes
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 2 in |
| Tap Style | Flute |
| Shank Dia. | 0.141 in |
| Tap Chamfer | Modified Bottoming |
| Tap Dimension Type | Inch |
| Tap Material | Powdered Metal |
| Tap Size | #6 |
| Number of Flutes | 3 |
| Thread Length | 11/16 in |
| Tap Finish | TiCN |
| Tap Grouping | Tap |
| Thread Direction | Right Hand |
| Standards | ANSI |
| Tap Thread Type | UNC |
| Tap Thread Size | #6-32 |
| Cutting Direction - Machining | Right Hand |
| Series | 313TI |
| Tap Shank Standard | ANSI |
| 75% Thread Drill Size | #36 |
| Thread Size | #6-32 |
| Primary Material Application | Titanium, Nickel |
| 65% Thread Drill Size | #34 |
| 55% Thread Drill Size | #32 |
| Threads per Inch | 32 |
| Thread Limit | H3 |
| Measurement System | Pipe |
| Features | DIN Overall Length Provides Greater Reach Capability, Lubricity and Wear Resistance, OSG V-Coating Increased Hardness, Premium Powdered Metal VC-10 Substrate Increased Hardness for Longer Life, Spiral Flute for Through Hole Applications |
| Drill Bit Size | 0.1136 in, 0.1055 in, 0.1076 in, 0.1096 in, 0.1116 in |
| Secondary Material Application | Stainless Steel |
| Material Grade - Machining | 313TI |
| Square Size | 0.109 in |
| Thread Standard | UNC |
| Coolant Fed | Non-Coolant Through |
| Shank Type - Machining | Straight |
| Extended Neck | Yes |
| Helix Angle | 10 deg |
| Shank Length | 1-11/32 in |
| Primary Material Application ISO Code | S |
| Secondary Material Application ISO Code | M |
| Size | #6 |
| List Number | 313TI |
| Number of Pieces | 1 |
| Pitch Diameter Limit | H3 |
| Package Quantity | 1 |
