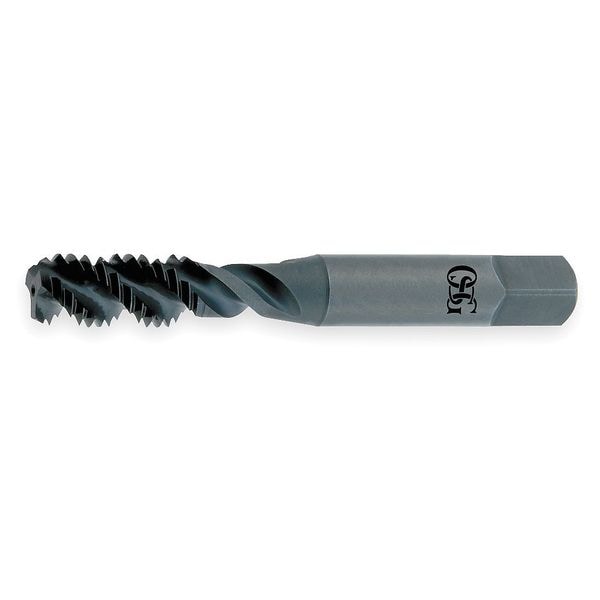

Spiral Point Tap, 1/2"-13, Plug, UNC, 3 Flutes
| Item | Spiral Point Tap |
|---|---|
| Shank Dia. | 0.367 in |
| Tap Style | Spiral Point |
| Tap Chamfer | Plug |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | 1/2" |
| Overall Length | 6 in |
| Thread Direction | Right Hand |
| Number of Flutes | 3 |
| Thread Length | 1-21/32 in |
| Standards | ANSI |
| Number of Pieces | 1 |
| Tap Finish | Bright |
| Tap Thread Size | 1/2"-13 |
| List Number | 917 |
| Pitch Diameter Limit | H3 |
| Tap Thread Type | UNC |
| Tap Grouping | Tap |
| Cutting Direction - Machining | Right Hand |
| Series | 917 |
| Threads per Inch | 13 |
| Shank Length | 4-5/8 in |
| Measurement System | Fractional Inch |
| 75% Thread Drill Size | 27/64 in |
| Secondary Material Application ISO Code | K, P, N |
| Tap Type | Spiral Point |
| Primary Material Application ISO Code | P, M, H, N, K, S, O |
| Primary Material Application | All Materials |
| Spiral Direction | Neutral |
| Extended Neck | No |
| Tap Shank Standard | ANSI |
| Square Size | 0.274 in |
| Tap Length Standard | ANSI |
| Secondary Material Application | Aluminum, Cast Iron, High Carbon Steel, Low Carbon Steel, Medium Carbon Steel |
| Extended Shank | Yes |
| Thread Limit | H3 |
| 55% Thread Drill Size | 11.3 mm |
| Thread Size | 1/2"-13 |
| Thread Standard | UNC |
| 65% Thread Drill Size | 11 mm |
| Coolant Fed | Non-Coolant Through |
| Material Grade - Machining | 917 |
| Helix Angle | 0 deg |
| Size | 1/2" |
| Package Quantity | 1 |
