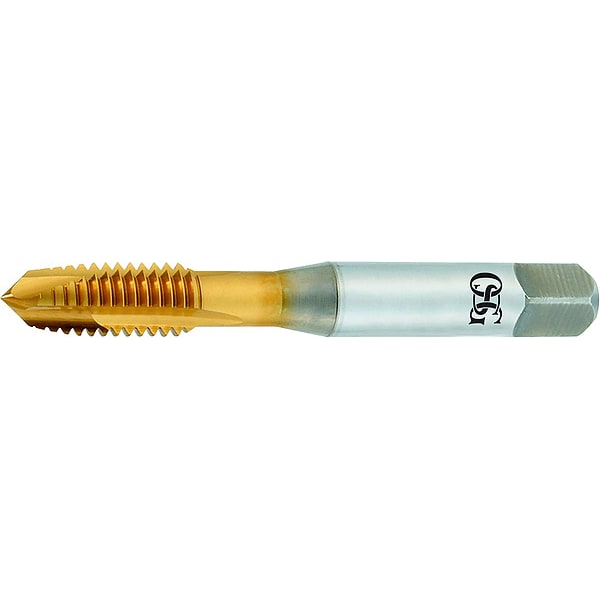

Spiral Point Tap, #6-32, Plug, UNC, 2 Flutes, TiN
| Item | Spiral Point Tap |
|---|---|
| Shank Dia. | 0.141 in |
| Tap Material | High Speed Steel |
| Tap Dimension Type | Inch |
| Tap Chamfer | Plug |
| Tap Size | #6 |
| Tap Style | Spiral Point |
| Overall Length | 2 in |
| Number of Flutes | 2 |
| Tap Finish | TiN |
| Thread Direction | Right Hand |
| Number of Pieces | 1 |
| Tap Thread Size | #6-32 |
| Tap Grouping | Tap |
| Pitch Diameter Limit | H3 |
| Thread Length | 11/16 in |
| Standards | ANSI |
| List Number | 320 |
| Tap Thread Type | UNC |
| Cutting Direction - Machining | Right Hand |
| Series | 320 |
| Thread Standard | UNC |
| Primary Material Application ISO Code | P |
| Spiral Direction | Neutral |
| Measurement System | Fractional Inch |
| Shank Length | 1-5/16 in |
| Primary Material Application | Steel |
| Coolant Fed | Non-Coolant Through |
| 55% Thread Drill Size | #32 |
| Square Size | 0.109 in |
| 65% Thread Drill Size | #34 |
| Extended Neck | Yes |
| Drill Bit Size | 6.7 mm, 6.78 mm, 6.86 mm, 6.94 mm, 7.03 mm |
| 75% Thread Drill Size | #36 |
| Secondary Material Application | Cast Iron, Hardened Steel, Stainless Steel, Steel |
| Shank Type - Machining | Straight |
| Threads per Inch | 32 |
| Thread Limit | H3 |
| Secondary Material Application ISO Code | K, P, M, H |
| Thread Size | #6-32 |
| Class of Fit | H3 |
| Helix Angle | 0 deg |
| Size | #6 |
| Package Quantity | 1 |
