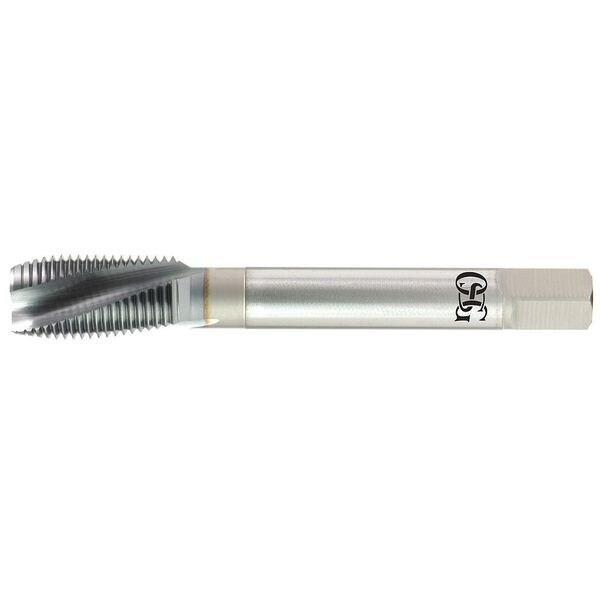

Spiral Point Tap, M12-1.75, Plug, Metric Coarse, 4 Flutes, TiCN
| Item | Spiral Point Tap |
|---|---|
| Shank Dia. | 9.3 mm |
| Tap Material | Powdered Metal |
| Tap Style | Spiral Point |
| Tap Size | M12 |
| Tap Chamfer | Plug |
| Tap Dimension Type | Metric |
| Overall Length | 86 mm |
| Number of Flutes | 4 |
| Thread Direction | Right Hand |
| Tap Thread Type | Metric Coarse |
| Tap Thread Size | M12-1.75 |
| Thread Length | 42 mm |
| Tap Finish | TiCN |
| Tap Grouping | Tap |
| Series | 13163 |
| Cutting Direction - Machining | Right Hand |
| Thread Standard | Metric Coarse |
| 55% Thread Drill Size | 27/64 in |
| Thread Size | M12x1.75 |
| Coolant Fed | Non-Coolant Through |
| Extended Neck | Yes |
| Secondary Material Application | Hardened Steel, Stainless Steel, Steel |
| Measurement System | Metric |
| Shank Length | 53 mm |
| Primary Material Application ISO Code | S |
| Square Size | 6.98 mm |
| Thread Pitch | 1.75 mm |
| Spiral Direction | Neutral |
| Shank Type - Machining | Straight |
| Drill Bit Size | 10.64 mm, 10.18 mm, 10.30 mm, 10.41 mm, 10.52 mm |
| Thread Limit | D6 |
| Primary Material Application | Titanium |
| 75% Thread Drill Size | 10.3 mm |
| Secondary Material Application ISO Code | P, M, H |
| 65% Thread Drill Size | 10.5 mm |
| Class of Fit | 6H |
| Helix Angle | 0 deg |
| Size | M12 |
| List Number | 13163 |
| Pitch Diameter Limit | D6 |
| Number of Pieces | 1 |
| Package Quantity | 1 |
