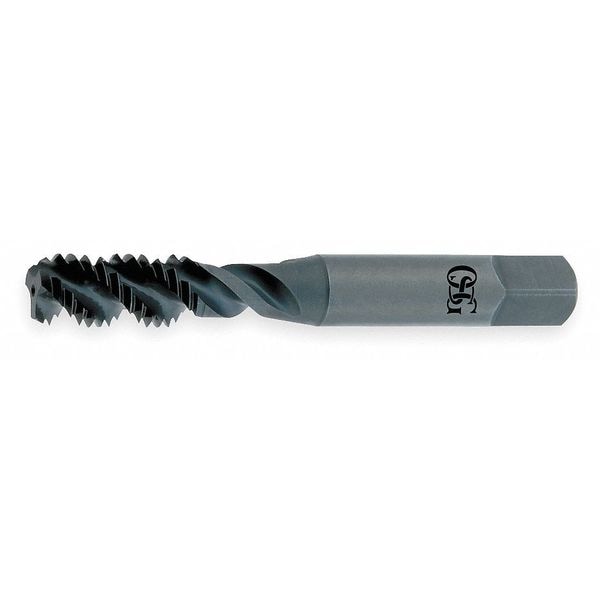

Spiral Point Tap, M6-1, Plug, Metric Coarse, 3 Flutes, TiN
| Item | Spiral Point Tap |
|---|---|
| Shank Dia. | 6.4 mm |
| Tap Material | High Speed Steel |
| Tap Style | Spiral Point |
| Tap Size | M6 |
| Tap Chamfer | Plug |
| Tap Dimension Type | Metric |
| Overall Length | 2-1/2 in |
| Number of Flutes | 3 |
| Thread Direction | Right Hand |
| Tap Grouping | Tap |
| Tap Thread Size | M6-1 |
| Tap Thread Type | Metric Coarse |
| Standards | ANSI |
| Thread Length | 25.4 mm |
| Tap Finish | TiN |
| Cutting Direction - Machining | Right Hand |
| Series | 288 |
| Thread Size | M6x1 |
| Spiral Direction | Neutral |
| Thread Limit | 6H |
| Coolant Fed | Non-Coolant Through |
| Thread Standard | Metric Coarse |
| 55% Thread Drill Size | 5.25 mm |
| Thread Pitch | 1 mm |
| Extended Neck | Yes |
| Primary Material Application | Steel |
| 75% Thread Drill Size | 5 mm |
| Shank Type - Machining | Straight |
| Square Size | 4.85 mm |
| Drill Bit Size | 5.22 mm, 4.96 mm, 5.03 mm, 5.09 mm, 5.16 mm |
| Shank Length | 37 mm |
| Secondary Material Application ISO Code | N |
| Measurement System | Metric |
| Secondary Material Application | Brass, Bronze, Copper, Aluminum |
| 65% Thread Drill Size | 13/64 in |
| Primary Material Application ISO Code | P1, P2 |
| Class of Fit | 6H |
| Helix Angle | 0 deg |
| Size | M6 |
| Pitch Diameter Limit | Not Rated |
| List Number | 288 |
| Number of Pieces | 1 |
| Package Quantity | 1 |
