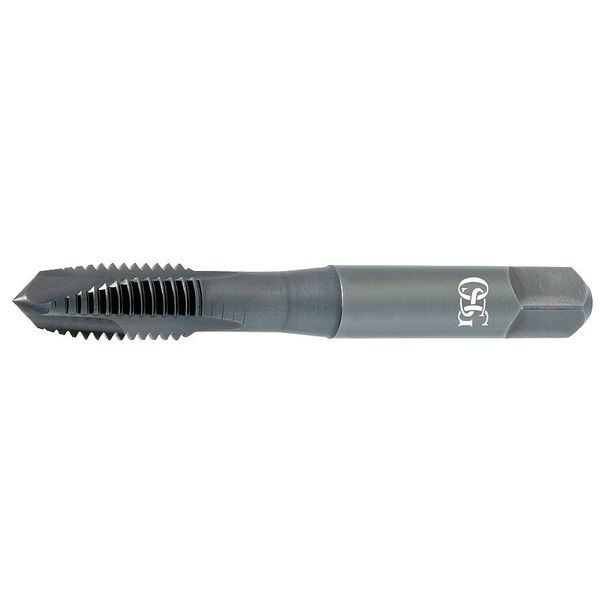

Spiral Point Tap, M8-1.25, Plug, Metric Coarse, 3 Flutes, TiCN
| Item | Spiral Point Tap |
|---|---|
| Shank Dia. | 6 mm |
| Tap Material | High Speed Steel |
| Tap Style | Spiral Point |
| Tap Size | M8 |
| Tap Chamfer | Plug |
| Tap Dimension Type | Metric |
| Overall Length | 69 mm |
| Number of Flutes | 3 |
| Tap Thread Size | M8-1.25 |
| Standards | ANSI |
| Tap Grouping | Tap |
| Tap Thread Type | Metric Coarse |
| Thread Length | 29 mm |
| Thread Direction | Right Hand |
| Tap Finish | TiCN |
| Series | 289 |
| Cutting Direction - Machining | Right Hand |
| Coolant Fed | Non-Coolant Through |
| Drill Bit Size | 7.03 mm, 6.70 mm, 6.78 mm, 6.86 mm, 6.94 mm |
| Secondary Material Application ISO Code | P, M, K, S3 |
| Secondary Material Application | Titanium, Nickel, Cast Iron, Stainless Steel, Steel |
| Thread Pitch | 1.25 mm |
| Measurement System | Metric |
| Thread Limit | D11 |
| Shank Length | 40 mm |
| Shank Type - Machining | Straight |
| Square Size | 6.05 mm |
| Primary Material Application ISO Code | P |
| 65% Thread Drill Size | I |
| Thread Standard | Metric Coarse |
| Thread Size | M8x1.25 |
| Extended Neck | Yes |
| 75% Thread Drill Size | H |
| Primary Material Application | Steel |
| Spiral Direction | Neutral |
| 55% Thread Drill Size | 7.1 mm |
| Class of Fit | H3 |
| Helix Angle | 0 deg |
| Size | M8 |
| Number of Pieces | 1 |
| List Number | 289 |
| Pitch Diameter Limit | D11 |
| Package Quantity | 1 |
